Fiat Doblò 2022 Fuse Box Info

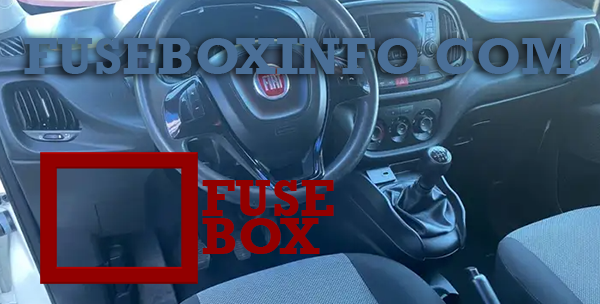

Passenger compartment fuse box location:
The two fuse boxes are located at the left side of the steering column at the bottom of the instrument panel, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 38 | 20A | Door locking/unlocking motors, dead lock actuator motors, tailgate unlocking motor |
| 36 | 10A | Supply + battery for EOBD diagnosis socket, radio, tyre pressure monitoring control unit |
| 43 | 15A | Windscreen/rear window washer pump |
| 48 | 20A | Window winder motor for front door passenger side |
| 13 | 7.5A | Left low beam, headlight corrector |
| 47 | 20A | Window winder motor for front door driver's side |
| 1 | 10A | Heated driver seat |
| 2 | 10A | Heated passenger seat |
| 3 | 15A | Cigar lighter |
| 4 | 20A | Third power socket on dashboard |
| 5 | 20A | Driver's side rear electric window |
| 6 | 20A | Passenger's side rear electric window |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 09 | 10A | Remote control switch for opening swing door (Cargo version) |
| 10 | 10A | Single tone horn |
| 14 | 15A | Main beams |
| 20 | 30A | Heated rear window |
| 30 | 15A | Fog lights |
| 85 | 15A | Rear power socket |
| 86 | 15A | Passenger compartment power socket |
