Ferrari FF 2015 Fuse Box Info
Passenger compartment fuse box location:
The fuse box 1 is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box 2 is located on the right side below the foot board.

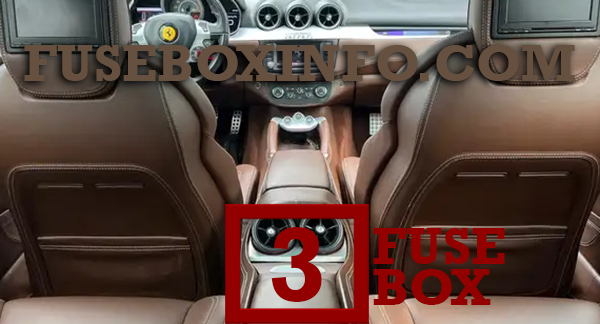

The fuse box 3 is located under the rear cup holder compartment.

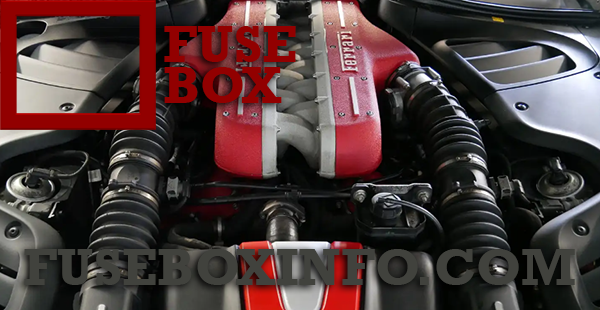

Engine compartment fuse box location:

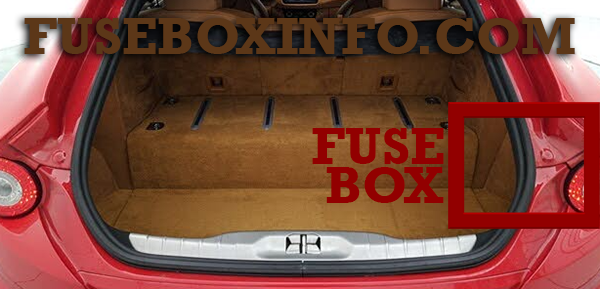

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| F12 | 15A | Right high beam |
| F13 | 15A | Left high beam |
| F31 | 7.5A | INT/A for air conditioning and heating system, Body Computer Node |
| F32 | 10A | Foot well and step lights, luggage compartment lights, side marker relay, glove compartment relay coil |
| F33 | 30A | Electronically controlled Gearbox Node |
| F35 | 7.5A | High beam relay coils, headlight washer, illumination of buttons, adaptive headlight ECU, headlights, power steering, entertainment system |
| F36 | 10A | Parking sensors, fuel filler flap relay coil |
| F37 | 10A | Instrument Panel Node |
| F38 | 15A | Luggage compartment lock actuator, wiper control ECU |
| F39 | 15A | EOBD socket, anti-theft system siren, Air Conditioning Node |
| F40 | 30A | Heated rear window |
| F41 | 15A | Windscreen washer nozzle demisting power supply |
| F42 | 7.5A | Alternator |
| F43 | 30A | T28, T29, T26, T27 relay power supply |
| F44 | 20A | Passenger seat heating, cigarette lighter |
| F47 | 30A | Driver-side door, driver-side power window |
| F48 | 30A | Passenger-side door, passenger-side power window |
| F49 | 75A | Rain sensor, parking sensors, seats, suspension lift, Japan navigation system, electrochromic mirror |
| F50 | 7.5A | Airbag Node |
| F51 | 7.5A | Electronically controlled Gearbox Node, ignition button |
| F52 | 15A | Power socket, driver's seat heating, wiper control ECU relay |
| T01 | 20A | Low beam relay |
| T11 | 30A | Heated rear screen relay |
| T12 | 30A | Service relay 1 (dependent on INT/A ignition switch) |
| T13 | 50A | Jumper (service power supply 2) |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| F01 | 40A | +30 Radiator fan relay 2 |
| F02 | 40A | +30 ABS (valves) |
| F03 | 70A | Bus bar power supply for F-107, F-108, F-91, F-92, F-109, F-104, F-103 |
| F04 | 50A | +30 ABS (pump) |
| F05 | 40A | +30 Air conditioning Node |
| F06 | 40A | +30 electric radiator fan 1 |
| F07 | 20A | +30 Horn relay |
| F08 | 7.5A | Air conditioning and heating system compressor |
| F09 | 7.5A | +30 Alternator sensing |
| F10 | 30A | +30 Bus bar for F-94, F-95, F-106 |
| F11 | 25A | Left bank oxygen sensor |
| F14 | 15A | +30 High beam relay |
| F15 | 30A | +30 Ignition switch |
| F16 | 25A | +30 Right bank engine control power supply |
| F17 | 25A | +30 Left bank engine control power supply |
| F20 | 30A | +30 Right cylinder bank injection system power supply |
| F21 | 30A | +30 4WD system hydraulic pump relay |
| F22 | 15A | Left bank (ignition coil) |
| F24 | 15A | Right bank (ignition coil) |
| F30 | 30A | +30 Starting relay |
| F81 | 40A | +30 Fuel pump ESD ECU |
| F82 | 70A | +30 Dashboard ECU and luggage compartment ECU power supply |
| F83 | 50A | +30 Air pump relay |
| F84 | 30A | +30 Suspension Control Node |
| F85 | 25A | Headlight washer |
| F87 | 25A | Right bank oxygen sensors |
| F88 | 10A | +15 Left cylinder bank injection system |
| F89 | 10A | +15 Right cylinder bank injection system |
| F90 | 7.5A | +15 4WD front differential ECU |
| F91 | 7.5A | +30 Tyre pressure node, LH headlight LED module relay |
| F92 | 10A | +30 RH headlight LED module relay, EPB activated stop light control re |
| F94 | 15A | +30 Radio/CAN box/ICP/clock spring/Japan navigation system stabiliser |
| F95 | 10A | +30 Current stabiliser |
| F102 | 10A | +30 ABS (electronic) |
| F103 | 20A | +30 4WD front differential ECU |
| F104 | 15A | +30 4WD electric cooling fan relay |
| F105 | 30A | +30 ABS (valves) |
| F106 | 7.5A | +30 Passenger compartment control lighting |
| F107 | 10A | +30 Right cylinder bank injection system power supply |
| F108 | 10A | +30 Left cylinder bank injection system power supply, starting relay |
| F109 | 7.5A | +30 Supplementary stop light relay |
| T02 | 30A | High beam relay |
| T03 | 30A | Passenger compartment control lighting relay |
| T05 | 30A | Supplementary stop light relay |
| T06 | 30A | Battery cooling fan relay (preset) |
| T07 | 50A | Horn relay |
| T08 | 30A | Air conditioning and heating system compressor relay |
| T09 | 30A | Left cylinder bank injection system main relay |
| T10 | 30A | Right cylinder bank injection system main relay |
| T14 | 30A | 4WD system electric cooling fan relay |
| T17 | 10/20A | INT/A relay (devices excluded at ignition) |
| T19 | 30A | EPB-activated stop light control relay |
| T20 | 30A | Starting relay |
| T26 | 30A | Windscreen wiper first speed relay |
| T27 | 30A | Windscreen wiper second speed relay |
| T28 | 30A | Windscreen washer pump relay |
| T29 | 30A | Rear window washer pump relay |
| T30 | 50A | Air pump relay |
| T31 | 30A | Headlight washer pump relay |
| T37 | 30A | Radiator fan relay 2 |
| T38 | 30A | Left headlight LED module power supply relay |
| T39 | 30A | Right headlight LED module power supply relay |
| T40 | 30A | Radiator fan relay 1 |
Passenger compartment fuse box 3:
| Fuse/Relay N° | Rating | Functions |
| F54 | 30A | +30 HI-FI amplifier |
| F56 | 30A | +30 Driving Position Node |
| F57 | 7.5A | Side Markers 1 (LH front and RH rear) |
| F59 | 7.5A | Reverse light power supply |
| F60 | 30A | +30 Passenger Position Node |
| F61 | 20A | +30 Cigarette lighter relay |
| F63 | 15A | +30 Electronically controlled gearbox main relay |
| F64 | 7.5A | Fuel filler flap actuator power supply |
| F65 | 20A | +30 Door lock actuator |
| F66 | 30A | +30 Bus bar in CS-SCM3 |
| F67 | 7.5A | Side Markers 2 (RH front and LH rear) |
| F78 | 15A | +30 Wiper control ECU relay |
| F80 | 30A | +30 Bus bar in CS-SCM3 power supply |
| T21 | 50A | Side Marker relay |
| T22 | 30A | Reverse light relay |
| T23 | 30A | Fuel filler flap relay |
| T25 | 30A | Electronically controlled gearbox main relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| CAL5 | CAL5 | Power supply (starter motor and alternator) |
| F70 | 150A | Engine relay and fuse ECU power supply (SCM) |
| F71 | 40A | Front lift pump |
| F72 | 40A | Parking brake power |
| F73 | 70A | Dashboard ECU power |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F96 | 10A | +30 Luggage compartment lock relay |
| F97 | 10A | +30 Electronic Passenger Position Node, luggage compartment striker plate |
| F98 | 15A | +30 Battery conditioner socket |
| F99 | 7.5A | +30 Semi-automatic Gearbox Node |
| F100 | 7.5A | +30 Driving Position Node, suspension lift ECU |
| F101 | 10A | +30 Entertainment components |
| T40 | 30A | Glove compartment lock relay |
| T41 | 30A | Luggage compartment lid lock relay |
| T42 | 30A | Wiper control ECU relay |
| T43 | 30A | Cigarette lighter relay |
