Ferrari 599 GTO 2010 Fuse Box Info
Passenger compartment fuse box location:
The fuse box 1 is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

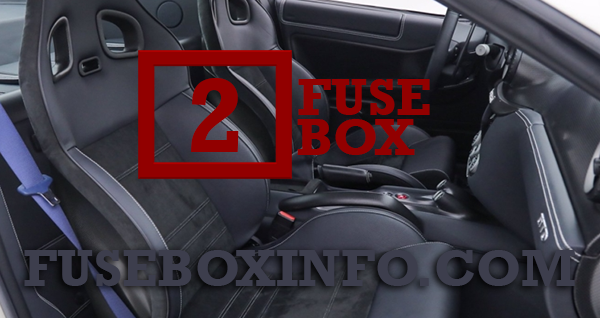

The fuse box 2 is located on the driver-side, behind the rear side panel.

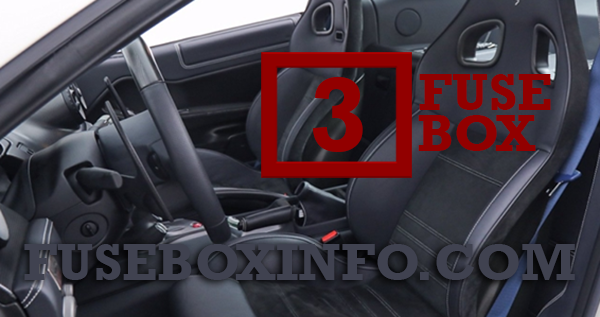

The fuse box 3 is located on the passenger-side, behind the rear side panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| The box C | ||
| F36 | 10A | +30 glove compartment motor |
| F52 | 15A | driver seat heating (INT/A connected device relay) |
| F45 | 25A | (not used) |
| F46 | 15A | (not used) |
| F34 | 20A | (not used) |
| F39 | 10A | +30 for NIM, NCL, diagnostic socket EOBD, CSA, CAV, radio/NIT, telephone option |
| F41 | 15A | (not used) |
| F47 | 20A | (not used) |
| F33 | 20A | (not used) |
| F48 | 20A | (not used) |
| F38 | 15A | + 30 ratio motor for luggage compartment lock |
| F43 | 30A | windshield wipers/washer (INT/A connected device relay) |
| F32 | 10A | +30 dome lights |
| F37 | 10A | +15 NQS, +15 CLA (NO), third stop |
| F49 | 7.5A | +15 for CSG, CSP, NIM, NCL, radio/ NIT, CEM, CRP, telephone option, dome light panel, windshield wiper controls, steering column adjustment |
| F53 | 10A | +30 rear fog light |
| F40 | 30A | +30 heated rear window (INT/A relay) |
| F50 | 7.5A | +15 airbag system |
| F42 | 7.5A | +15 NFR |
| F35 | 7.5A | +15 CLA (NC), IFR, engine signal socket, relay coils (headlight washer, reverse gear, high beams) |
| F31 | 7.5A | INT/A for A.C. unit, NBC |
| F44 | 20A | +30 cigarette lighter, passenger seat heating (INT/A connected device relay) |
| F51 | 7.5A | +15 NCR, F1 control panel |
| F12 | 15A | +30 RH low beam |
| F13 | 15A | +30 LH low beam |
| The box C1 | ||
| R01 | 20A | low beams |
| R11 | 30A | heated rear window |
| R12 | 30A | connected devices 1 (controlled by INT/A ignition switch) |
| R13 | 50A | connected devices 2 (NBC-controlled) (option) |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| The box D | ||
| R4 | 20A | A.C. compressor |
| R10 | 20A | left-hand injection |
| R6 | 20A | high beams |
| R5 | 30A | headlight washer |
| R29 | 20A | glove compartment motor |
| R20 | 20A | side marker |
| The box E | ||
| F55 | 20A | +30 steering column adjustment (only with basic seat version) |
| F56 | 30A | +30 passenger seat adjustment |
| F91 | 7.5A | +30 NAP (electronics) |
| F22 | 30A | LH main injection relay |
| F57 | 7.5A | +15 alternator, NVO, start button |
| F58 | 5A | +30 NTP |
| F79 | 5A | +30 NQS |
| F83 | 30A | +30 NPG power supply |
| F6 | 25A | +30 from ignition switch |
| F27 | 10A | +15 LH injection |
| F77 | 15A | +87 LH oxygen sensor main relay |
| F26 | 15A | +87 injectors main relay, LH coils |
| F25 | 10A | solenoid valves, air fl ow meter, LH diagnostic pump |
| F24 | 10A | +87 LH main relay |
| F23 | 7.5A | +30 LH injection |
| F67 | 5A | +30 front RH - rear LH side marker |
| F66 | 5A | +30 front LH - rear RH side marker |
| F18 | 10A | +30 RH high beam |
| F17 | 10A | +30 LH high beam |
Passenger compartment fuse box 3:
| Fuse/Relay N° | Rating | Functions |
| The box J | ||
| F76 | 15A | +87 RH oxygen sensor main relay |
| F11 | 15A | +87 RH injectors main relay, coils |
| F10 | 10A | +87 main relay, air flow meter, RH solenoid valves |
| F9 | 10A | +87 RH main relay (pin F03) |
| F8 | 7.5A | +30 RH injection (pin F62) |
| F60 | 20A | +30 NPG, NPP door lock actuator |
| F80 | 25A | +30 Hi-Fi system (bass-box and subwoofer) |
| F84 | 30A | +30 NPP power supply |
| F61 | 7.5A | +30 NAG (electronics) |
| F7 | 30A | +30 injection main relay, RH main coil relay |
| F19 | 30A | +30 starter motor |
| F30 | 30A | +30 driver seat adjustment (and steering column adjustment, only with comfort seats) |
| F15 | 5A | +15 weight sensor ECU (only for the USA) |
| F14 | 10A | +15 RH injection (coils, fuel pumps relays) |
| F16 | 7.5A | +30 A.C. compressor |
| F20 | 25A | +30 headlight washer |
| F21 | 15A | +30 horns |
| F28 | 25A | +30 ABS (solenoid valves) |
| F54 | 10A | +30 ABS (electronics) |
| F56 | 30A | +30 passenger seat adjustment (right-hand drive version only) |
| F83 | 30A | +30 NPG power supply (right-hand drive version only) |
| F91 | 7.5A | +30 NAP (electronics) (right-hand drive version only) |
| The box I | ||
| R7 | 30A | starter motor |
| R27 | 20A | devices cut-out upon ignition |
| R8 | 20A | horns |
| R3 | 20A | immobilizer |
| R2 | 20A | RH main injection relay |
| R28 | 20A | ignition cut-off with battery charger |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| The box A | ||
| R14 | 50A | air pump |
| MF5 | 40A | +30 A.C. unit |
| MF2 | 60A | +30 air pump |
| MF85 | 40A | passenger compartment connected devices 2 |
| MF1 | 40A | +30 ABS (pump) |
| The box B | ||
| R16 | 50A | LH fans |
| R15 | 50A | RH fan |
| MF3 | 40A | +30 RH fans |
| MF4 | 40A | +30 LH fans |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| The box H | ||
| R19 | 20A | reverse gear |
| R21 | 20A | fuel tank door |
| F89 | 5A | +15 NSP and NCS |
| F59 | 10A | +30 fuel tank door |
| F64 | 7.5A | +30 reverse gear, NSP |
| F88 | 30A | +30 NCS |
| The box G | ||
| MF81 | 60A | +30 passenger compartment connected devices 1 |
| MF72 | 40A | +30 luggage compartment connected devices (+side marker coil relay) |
| MF71 | 60A | +30 passenger compartment connected devices 3 |
| MF70 | 30A | +30 F1 gearbox pump |
| MF68 | 30A | +30 Hi-Fi system (amplifier) |
| The box F | ||
| R17 | 20A | RH fuel pump, 1st speed |
| R18 | 20A | RH fuel pump, 2nd speed |
| R24 | 20A | 1st speed fuel pump, LH bank |
| R25 | 20A | 2nd speed fuel pump, LH bank |
| F78 | 20A | +30 LH fuel pumps |
| F82 | 5A | +30 alternator sensing |
| F29 | 15A | battery conditioner |
| F63 | 20A | +30 RH fuel pumps |
| F69 | 25A | +30 NCR |
