Ferrari 488 GTB 2016 Fuse Box Info
Passenger compartment fuse box location:
The fuse box 1 is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box 2 is located on the right side below the foot board. The fuse box 3 is located on the right side behind the glove box. The fuse box 4 is located under the flap on the centre console.

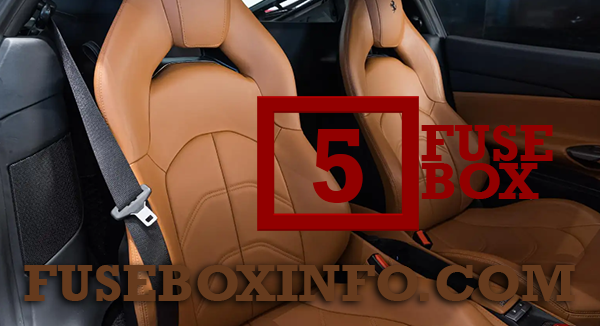

The fuse box 5 is located on the driver-side, behind the rear side panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| F12 | 15A | Right high beam |
| F13 | 15A | Left high beam |
| F31 | 7.5A | INT/A for dashboard ECU and Body Computer Node relay coils |
| F32 | 10A | Puddle lights |
| F33 | 30A | Left hand Brembo EPB system motor |
| F34 | 30A | Right hand Brembo EPB system motor |
| F35 | 7.5A | + Key for power steering, headlights, adaptive headlights, stabiliser |
| F36 | 10A | Parking sensors, fuel filler flap relay |
| F37 | 10A | Stop light control, Instrument Panel Node, Suspension Control Node |
| F38 | 15A | Luggage compartment lock actuator, parking camera |
| F39 | 15A | Dashboard ECU devices (NBC interconnection) |
| F40 | 30A | Heated rear window |
| F42 | 15A | / |
| F43 | 30A | Windscreen washer/wiper relay power supply |
| F44 | 20A | Passenger seat heating |
| F46 | 20A | / |
| F47 | 30A | Driver-side door, driver-side power window |
| F48 | 30A | Passenger-side door, passenger-side power window |
| F49 | 7.5A | + Key for CPOD, front lift, rear-view mirrors, active aerodynamics, parking sensors, rain sensor, electric seats |
| F50 | 7.5A | Airbag Node, weight sensor |
| F51 | 7.5A | + Key for functions on CVB relay T21 |
| F52 | 15A | Driver seat heating |
| F53 | 10A | / |
| T01 | 20A | Low beam relay |
| T11 | 30A | Heated rear window relay |
| T12 | 30A | Service relay 1 (dependent on INT/A ignition switch) |
| T13 | 50A | Jumper (service power supply 2) |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| CAL5 | CAL5 | Power supply (starter motor and alternator) |
| F70 | 150A | Engine relay and fuse ECU power supply (SCM) |
| F71 | 70A | Dashboard ECU power |
| F72 | 50A | Front lift pump |
| F73 | 100A | Centre console fuse protection |
Passenger compartment fuse box 3:
| Fuse/Relay N° | Rating | Functions |
| F01 | 40A | +30 Right hand radiator fan |
| F02 | 40A | +30 ESP9 (Pump) |
| F04 | 40A | +30 ESP9 (Hydraulic) |
| F05 | 40A | +30 Air conditioning Node |
| F06 | 40A | +30 Left hand radiator fan |
| F07 | 20A | +30 Horn relay |
| F08 | 7.5A | Air conditioning and heating system compressor |
| F09 | 7.5A | +30 Supplementary stop light relay (third stop light), luggage compartment dome light |
| F10 | 15A | 30 NTP |
| F11 | 25A | Oxygen sensors |
| F14 | 10A | +30 High beam relay |
| F15 | 7.5A | +30 T19 CLA |
| F16 | 25A | / |
| F17 | 25A | Injection from T09 |
| F18 | 10A | / |
| F19 | 7.5A | +30 Injection system power supply |
| F20 | 30A | / |
| F21 | 30A | +30 Key |
| F22 | 15A | Ignition coils |
| F23 | 30A | Turbine cooling fans |
| F24 | 15A | / |
| F30 | 30A | Active aerodynamics |
| F81 | 50A | +30 Fuel pump ECU |
| F82 | 70A | +30 Dashboard ECU and ECU on driver-side rear side panel power supply |
| F83 | 50A | +30 Air pump relay |
| F84 | 15A | Side markers |
| F85 | 25A | Headlight washer |
| F87 | 25A | / |
| F104 | 15A | Infotainment system, CANBOX, CD changer, clock spring |
| F105 | 7.5A | Telemetry, iNode, parking camera |
| F106 | 10A | NQS rev counter |
| F107 | 7.5A | + key for button lighting stabiliser |
| F108 | 7.5A | Central front dome |
| F109 | / | |
| F110 | / | |
| F111 | 7.5A | Engine ionising ECU |
| F112 | 15A | Injection system sensors |
| F113 | 10A | Turbine pumps |
| F114 | 7.5A | Front LH and rear RH side markers |
| F115 | 7.5A | Front RH and rear LH side markers |
| F116 | 10A | +30 NPE and KIN node |
| F117 | 7.5A | +30 Start-up button node |
| F118 | / | |
| F119 | / | |
| F120 | / | |
| F121 | / | |
| F122 | / | |
| F123 | / | |
| T02 | 30A | High beam relay |
| T03 | 30A | +15 Button lighting |
| T05 | 30A | |
| T06 | 30A | |
| T07 | 50A | Horn relay |
| T08 | 30A | Air conditioning and heating system compressor relay |
| T09 | 30A | Main injection system relay |
| T10 | 30A | / |
| T14 | 30A | |
| T17 | 10/20A | INT/A relay (devices excluded at ignition) |
| T19 | 30A | Stop light control relay (CLA) |
| T20 | 30A | Turbine cooling fans |
| T26 | 10/20A | Windscreen wiper first speed relay |
| T27 | 10/20A | Windscreen wiper second speed relay |
| T28 | 30A | Windscreen washer pump relay |
| T29 | 30A | Side markers |
| T30 | 30A | LH DRL |
| T31 | 30A | RH DRL |
| R3 | ss | Solid state relay for third stop light |
| r4 | +15 passive start relay |
Passenger compartment fuse box 4:
| Fuse/Relay N° | Rating | Functions |
| F90 | 30A | +30 Stabiliser |
| F91 | 40A | / |
| F92 | 40A | +30 HI-FI amplifier |
| F93 | 30A | +30 Suspension control ECU |
Passenger compartment fuse box 5:
| Fuse/Relay N° | Rating | Functions |
| F54 | 15A | / |
| F55 | 10A | +15 injection ECU, engine ionising ECU, fuel pump ECU |
| F56 | 30A | Driver Configuration Node |
| F57 | 7.5A | / |
| F58 | 7.5A | Start-up |
| F59 | 7.5A | Reverse light power supply |
| F60 | 30A | NAP |
| F61 | 7.5A | +30 Driver Position Node (electronic), front lift |
| F62 | 7.5A | Passenger Configuration Node |
| F63 | 20A | +30 Semi-automatic gearbox main relay |
| F64 | 7.5A | Fuel filler flap actuator power supply |
| F65 | 20A | +30 Door lock actuator |
| F66 | 7.5A | +30 Semi-automatic Gearbox Node |
| F69 | 20A | +15 Cigarette lighter |
| F77 | 10A | +15 Rear parking camera |
| F78 | 15A | +30 Battery charger |
| F79 | 7.5A | +15 Semi-automatic Gearbox Node |
| F80 | 30A | +30 Starting relay |
| T21 | 50A | Relay for utilities with ignition switched on: engine, cigarette lighter, rear parking camera, DCT gearbox |
| T22 | 30A | Reverse light relay |
| T23 | 30A | Fuel filler flap relay |
| T24 | 30A | / |
| T25 | 30A | Electronically controlled gearbox main relay |
| R1 | Starter power relay | |
| R2 | Starter power relay |
