Dodge Sprinter 2005 Fuse Box Info

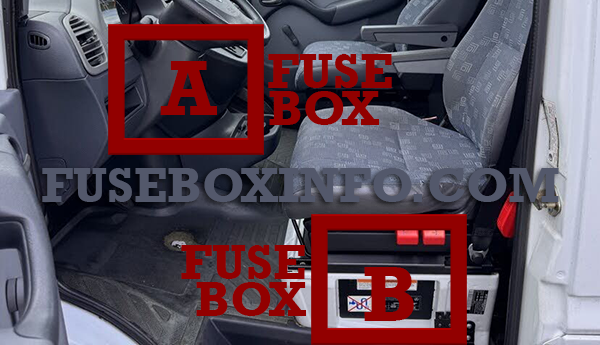

Passenger compartment fuse box location:
The fuse box A is located under the steering wheel. The fuse box B is located below the driver's seat.
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 10A | Parking lamp right, taillamp right |
| 2 | 10A | High beam head lamp,right |
| 3 | 10A | High beam head lamp, left, high beam indicator lamp |
| 4 | 10A | Backup lamp |
| 5 | 10A | Brake lamp |
| 6 | 20A | Windshield wiper motor |
| 7 | 15A | Horn, heated rear window, air recirculation switch, optional equipment relay (terminal 15) |
| 8 | 20A | Interior lighting, cigarette lighter, radio (terminal 30) |
| 9 | 15A | Clock, hazard warning lamps, parking lamps |
| 10 | 10A | Instrument lighting, license plate lamp daytime driving lamps |
| 11 | 10A | Side lamp, left; taillamp, left |
| 12 | 10A | Low beam headlamp, right |
| 13 | 10A | Low beam headlamp, left |
| 14 | 15A | Fog lamp |
| 15 | 10A | Radio (terminal 15) |
| 16 | 25A | Engine control unit |
| 17 | 15A | Engine control unit |
| 18 | 15A | Ignition (terminal 15) |
| 19 | 15A | Not in use |
| 20 | 15A | Heater controls (terminal 30) |
| 21 | 30A | Heater blower (terminal 30) |
| Relays | ||
| 1 | - | Windshield wiper motor (W) |
| 2 | - | Diesel engine control unit (M) |
| 3 | - | Turn signals (B) |
Passenger compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| Diodes | ||
| 1 | - | Not in use |
| 2 | - | Not in use |
| 3 | - | Not in use |
| 4 | - | Not in use |
| Fuses | ||
| 5 | 10A | Immobilizer |
| 6 | 7.5A | Anti-lock brake system (ABS), Electronic Stability program (ESP®)* |
| 7 | 25A | Anti-lock brake system (ABS), Electronic Stability program (ESP®)* |
| 8 | 40A | Not in use, Electronic Stability program (ESP®)* |
| 9 | 40A | Anti-lock brake system (ABS) |
| 10 | - | Not in use |
| Relays | ||
| 11 | - | Not in use |
| 12 | - | Starter relay |
| 13 | - | Not in use |
* 2500 Type Vehicles only
