Dodge Sprinter 2009 Fuse Box Info

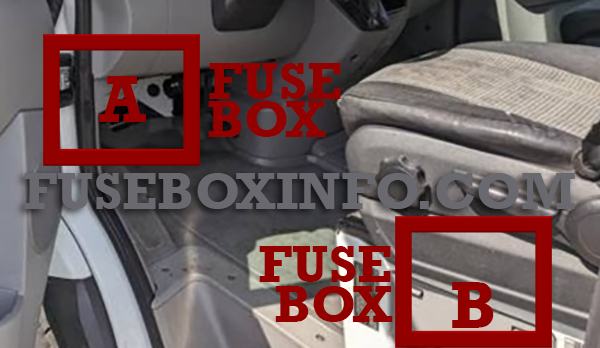

Passenger compartment fuse box location:
The fuse box A is located in the footwell on the left-hand side of the vehicle.. The fuse box B is located in the base of the
driver’s seat on the outboard side.
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Horn |
| 2 | 25A | Electric steering lock ESTL (electronic ignition switch EIS) |
| 3 | 10A | Terminal 30 Z, vehicles with gasoline engine/electronic ignition switch EIS/instrument cluster |
| 4 | 5A | Light switch/center console switch unit |
| 5 | 30A | Windshield wipers |
| 6 | 15A | Fuel pump |
| 7 | 5A | MRM (jacket tube module) |
| 8 | 20A | Terminal 87 (2) |
| 9 | 20A | Terminal 87 (3) |
| 10 | 10A | Terminal 87 (4) |
| 11 | 15A | Terminal 15 R vehicle |
| 12 | 10A | Airbag control unit |
| 13 | 15A | Cigarette lighter/glove box lighting/radio* |
| 14 | 5A | Diagnostic socket/light switch/instrument cluster |
| 15 | 5A | Front heating system |
| 16 | 10A | Terminal 87 (1) |
| 17 | 10A | Airbag control unit |
| 18 | 7.5A | Terminal 15 vehicle, brake lamp switch |
| 19 | 7.5A | Interior lights |
| 20 | 25A | Power window co-driver’s side/terminal 30/2 signal acquisition and actuation module SAM |
| 21 | 5A | Engine control unit |
| 22 | 5A | Antilock Brake System (ABS) |
| 23 | 25A | Starter motor |
| 24 | 10A | Diesel engine components |
| 25 | 25A | 12V socket on the bottom of the center console |
| Fuse block F55/1 | ||
| 1 | 25A | Control panel, left door |
| 2 | 10A | Diagnostic socket |
| 3 | 25A | Brake system (valves) |
| 4 | 40A | Brake system (delivery pump) |
| 5 | 7.5/10A | Terminal 87 (5) |
| 6 | 7.5/10A | Terminal 87 (6) |
| 7 | 30A | Headlamp cleaning system* |
| 8 | 15A | Anti-theft alarm system (ATA)*/siren* |
| 9 | 10A | Auxiliary indication module* |
| Fuse block F55/2 | ||
| 10 | 15A | Radio* |
| 11 | 7.5A | Telephone* |
| 12 | 30A | Front blowers/auxiliary heating* blower speed 1 |
| 13 | 7.5A | Pre-wiring mounting slot (center console)* |
| 14 | 30A | Seat heating*/center console switch unit |
| 15 | 10A | Non MB-body electrics |
| 16 | 10A | Heating, rear heating*/air-conditioning system, front/CD-player* |
| 17 | 10A | Motion detector*/convenience interior lighting* |
| 18 | 7.5A | Air conditioning in the rear* |
| Preliminary fuse box in the battery recess in the driver’s footwell F59 | ||
| 1 | 80/40A | Pre-glow relay/secondary air pump |
| 2 | 80A | Engine fan air-conditioning system - cab chasesis/crewcab |
| 3 | 80A | Signal acquisition and actuation module SAM/fuse and relay block SRB |
| 4 | 150A | Auxiliary battery*/retarder* |
| 5 | 150A | Terminal 30 fuse boxes, signal acquisition and actuation module SAM/fuse and relay block SRB |
| 6 | Bridge | Connecting point in driver’s seat base |
| 7 | 150A | Heater booster (PTC) |
* Option/accessory
Passenger compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| Fuse block F55/3 | ||
| 1 | 5A | Mirror adjustment*/rear window heating* |
| 2 | 30A | Rear window wiper* |
| 3 | 5A | Rear view camera*/telephone*/pre-wiring mounting slot (roof)* |
| 4 | 7.5A | Operating speed governor (ADR)*/PTO*/trailer connection unit AAG* |
| 5 | 10A | Electronic transmission control ETC, control unit |
| 6 | - | Unassigned |
| 7 | 10A | Electronic selector level module ESM |
| 8 | 10A | Terminal 15 body builder, drop side/3-way tipper |
| 9 | 15A | Roof ventilator*/siren* |
| Fuse block F55/4 | ||
| 10 | 25A | Terminal 30, tapping wire body builder |
| 11 | 15A | Terminal 15, tapping wire body builder |
| 12 | 10A | D+, tapping wire body builder |
| 13 | 30A | Air conditioning in the rear* |
| 14 | 20A | Trailer socket* |
| 15 | 25A | Trailer recognition device* |
| 16 | 7.5A | Tire pressure monitoring system (TPMS)*/ Parktronic system (PTS)* |
| 17 | 25A | PSM control unit* |
| 18 | 25A | PSM control unit* |
| Fuse block F55/5 | ||
| 19 | 5/25A | Overhead control panel*/sliding sunroof* |
| 20 | 7.5A | Clearance lamps* |
| 21 | 30/15A | Rear window heating* |
| 22 | 15A | Rear window heating* 2 |
| 23 | 15A | 12V socket* rear left, load/passenger compartment |
| 24 | 15A | 12V socket driver’s seat base |
| 25 | 15A | 12V socket rear right, load/passenger compartment |
| 26 | 25A | Auxiliary heating* |
| 27 | 25A | Heater booster* |
| Fuse block F55/6 | ||
| 28 | - | Unassigned |
| 29 | - | Unassigned |
| 30 | 30A | Brake booster* |
| 31 | 30/15A | Blower unit, rear heating/electric sliding door, left/electric closing aid* (sliding door, left*) |
| 32 | - | Unassigned |
| 33 | 30/15A | Electric sliding door, right/electric closing aid* (sliding door, left*) |
| 34 | - | Unassigned |
| 35 | - | Unassigned |
| 36 | - | Unassigned |
* Option/accessory
