Chevrolet Metro 2001 Fuse Box

Chevrolet Metro 2001 Fuse Box Info

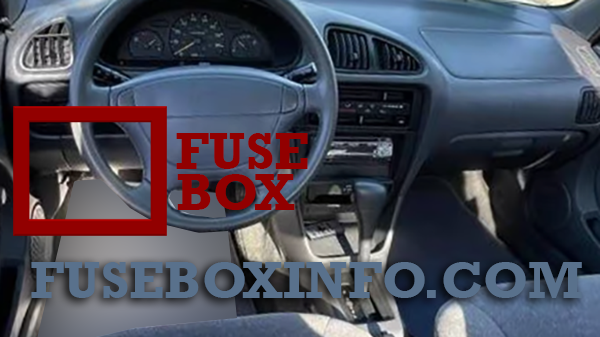

Passenger compartment fuse box location:

The fuse box is located under the left side of the instrument panel.

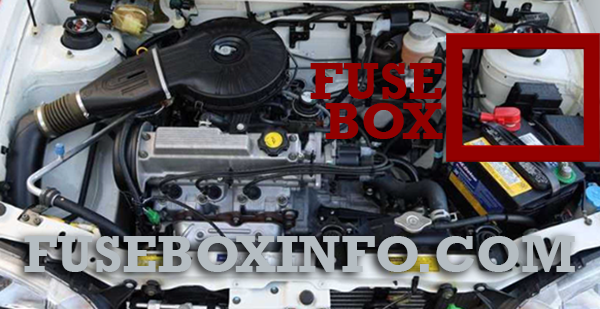

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay Functions
STOP Stop Lamp
HAZARD Hazard, Horn
TAIL Parking Lamps, Sidemarker Lamps, License Plate Lamp, Instrument Panel Cluster Lights
H/L, R Right Headlamp
H/L, L Left Headlamp, High Beam Indicator
DOOR LOCK Door Lock System
ACC Cigar, Radio
DOME Dome Lamp
WIPER Front and Rear Wiper/Washer
AIR BAG Air Bag
HEATER Heater Fan Motor, Air Conditioning
DEF Rear Defogger
BACK Backup Lamp
IG-COIL Ignition Coil, Fuel Gage, Engine Coolant Temperature Gage, Warning and Indicator Lights: Oil, Temperature, Fuel, Brake, Charging, Fasten
Belts, Malfunction



Engine compartment fuse box:

Fuse/Relay Functions
BATT All Electrical Load
ABS ABS System
IG Accessory, Ignition, Windshield Wipers, Defrost/Defog, Heater,
Back-Up Lamps
LAMP Taillamps, Stoplamps, Hazard, Headlamps
SPARE Not Used
PTC PTC Heater
FI Fuel Injection
RDTR Radiator Fan Motor
A/C Air Conditioner
