Chevrolet Tracker 2000 Fuse Box Info

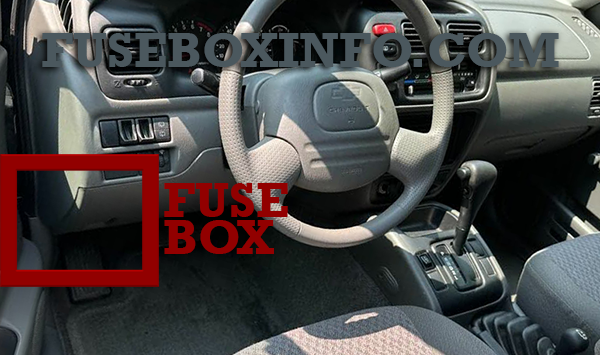

Passenger compartment fuse box location:
The instrument panel fuse box is located under the left side of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| P/W | Power Windows |
| DOM | Dome Light |
| TAIL | License Plate Light, Clearance/Marker Lights, Instrument Panel Illumination |
| HAZ | Hazard Lights |
| IG | O2 Sensor Heater, Cruise Control, Ignition Coil, Meter, G Sensor |
| CIG | Cigar Lighter, Radio, Power Mirror |
| D/L | Door Locks |
| STP | Brake Light, Horn, Center High-Mounted Stop Lamp |
| FOG | Not Used |
| DEF | Rear Window Defogger, DRL |
| S/H | Not Used |
| TRN | Turn Signal, Back-Up Light |
| WIP | Windshield Wiper/Washer, Rear Window Wiper/Washer |
Engine compartment fuse box:
| Fuse/Relay | Functions |
| 1 | Accessory Power Outlet |
| 2 | Electronic Fuel Injection System |
| 3 | Right Headlamp |
| 4 | Left Headlamp, High-Beam Indicator |
| 5 | Heater |
| 6 | Hazard Lamps, Rear Combination Lamps, Dome Light, Horn |
| 7 | Cigar Lighter, Radio, I.G. Coil, Meter, Wiper, Washer, Rear Defroster, Turn Signals, Back-Up Lamps |
| 8 | Anti-Lock Brake System |
| 9 | All Electrical Loads |
| 10 | Air Conditioning |
