Chevrolet SSR 2006 Fuse Box

Chevrolet SSR 2006 Fuse Box Info

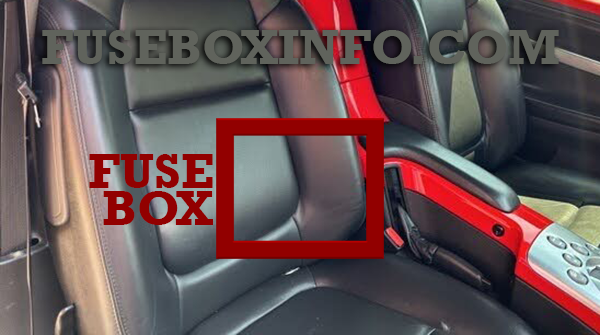

Passenger compartment fuse box location:

The fuse box is located on the center console between the two seats.

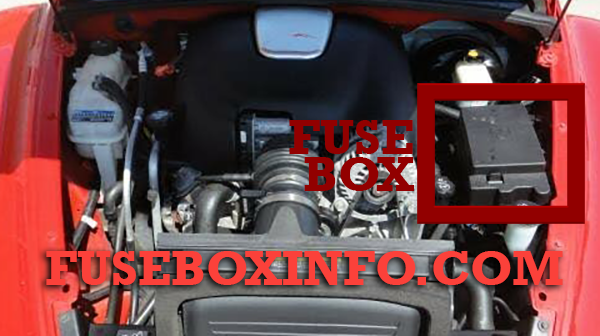

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
01 Roof & Door Module
02 Roof Pump
03 Rear Window Defogger
04 Truck Body Controller
05 Rear Window Defogger
06 Driver Seat Module
07 Truck Body Controller
08 Power Seats
09 Blank
10 Driver’s Door Module, Power Mirrors
11 Amplifier
12 Blank
13 Daytime Running Lamps (DRL)
14 Driver’s Side Rear Parking Lamp
15 Auxiliary Power 2
16 Center High-Mounted Stop Lamp
17 Passenger’s Side Rear Parking Lamp
18 Locks
19 Blank
20 Blank
21 Locks
22 Blank
23 Blank
24 Unlock
25 Blank
26 Blank
27 HomeLink® System
28 Roof Door Module
29 Transmission Control Module
30 Parking Lamps
31 Truck Body Controller
32 Remote Keyless Entry (RKE)
33 Windshield Wipers
34 Stoplamps
35 Blank
36 Climate Control System, Driver’s Door Unlock
37 Front Parking Lamps
38 Driver’s Side Turn Signal
39 Climate Control System
40 Truck Body Controller
41 Radio
42 Trailer Parking Lamps
43 Passenger’s Side Turn Signal
44 Blank
45 Rear Window Defogger, Outside Power Heated Mirrors
46 Accessory Power Outlets
47 Ignition
48 Blank
49 Blank
50 Truck Body Controller, Ignition
51 Brakes
52 Blank



Engine compartment fuse box:

Fuse/Relay N° Functions
1 Auxiliary Power 2
2 Passenger’s Side High Beam Headlamp
3 Passenger’s Side Low Beam Headlamp
4 Driver’s Side High Beam Headlamp
5 Driver’s Side Low Beam Headlamp
6 Cargo Cover Release
7 Transmission Control Module/Canister
8 Truck Body Controller
9 Windshield Washer
10 Driver’s Side Stoplamp/Turn Signals
11 Fuel Pump
12 Fog Lamps
13 Stoplamps
14 Headlamp Driver Module (HDM)
15 Passenger’s Side Stoplamp/Turn Signals
16 Cigarette Lighter
17 Hazard Warning Flashers
18 Coils
19 Truck Body Control, Ignition 1
20 Starter
21 Airbag System
22 Horn
23 Ignition E
24 Instrument Panel Cluster, Driver Information Center (DIC)
25 Automatic Transmission Shift Interlock Control System
26 Back-up lamps, Lock Out
27 Engine Control Module
28 Oxygen Sensor B
29 Injector B
30 Air Conditioning
31 Engine Control Module (ECM), Transmission Control Module (TCM)
32 Transmission
33 Engine 1
34 Engine Control Module, Electronic Brake Controller
35 Oxygen Sensor A
36 Injector A
37 Engine Cooling Fan
38 Anti-lock Brake System (ABS)
39 Ignition A
40 Climate Control Fan
41 Ignition B
42 Powertrain
43 Starter
44 Fuel Pump
45 Cargo Cover Release
46 Windshield Washer
47 Headlamp Driver Module (HDM)
48 Fog Lamps
49 High Beam Headlamps
50 Horn
51 Air Conditioning
52 Instrument Panel Battery



Relay box is located in the area where the convertible top is stored when it is open.

Fuse/Relay N° Functions
- Driver’s Door Lock
- Passenger’s Side Daytime Running Lamps (DRL)
- Driver’s Side Daytime Running Lamps (DRL)
- Rear Window Defogger
