Chevrolet Cobalt 2005 Fuse Box Info

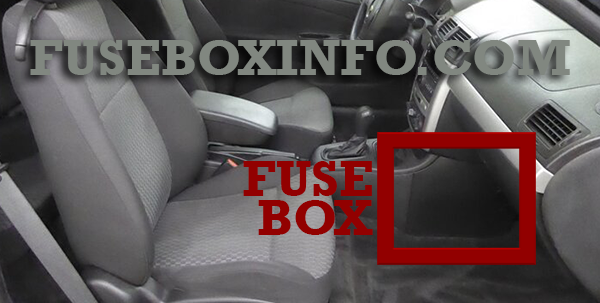

Passenger compartment fuse box location:
The interior fuse box is located on the passenger’s side of the floor console under the instrument panel.

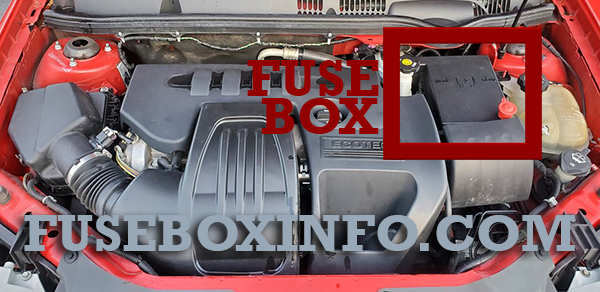

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Fuse Puller |
| 2 | Spare |
| 3 | Spare |
| 4 | Spare |
| 5 | Spare |
| 6 | Amplifier |
| 7 | Cluster |
| 8 | Ignition Switch |
| 9 | Stoplamp |
| 10 | Heating, Ventilation, Air Conditioning |
| 11 | Empty |
| 12 | Spare |
| 13 | Airbag |
| 14 | Spare |
| 15 | Windshield Wiper |
| 16 | Climate Control System, Cluster, Brake Transmission Shift Interlock |
| 17 | Empty |
| 18 | Empty |
| 19 | Electric Power Steering, Steering Wheel Control |
| 20 | Sunroof |
| 21 | Spare |
| 22 | Empty |
| 23 | Empty |
| 24 | Sensing and Diagnostic Module |
| 25 | Engine Control Module, Transaxle Control Module |
| 26 | Door Locks |
| 27 | Interior Lights |
| 28 | Audio System |
| 29 | Power Windows |
| Relays | |
| 30 | Ignition 3 |
| 31 | Empty |
| 32 | Retained Accessory Power |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| SPARES | Spares |
| REAR DEFOG | Rear Defogger |
| COOLING FAN 2 | Cooling Fan 2 |
| CRANK | Starter |
| COOLING FAN 1 | Engine Cooling Fan |
| BCM3 | Body Control Module 3 |
| BCM2 | Body Control Module 2 |
| FOG LP | Fog Lamps |
| HORN | Horn |
| RH LOW BEAM | Passenger’s Side Low Beam |
| LH LOW BEAM | Driver’s Side Low Beam |
| RH HI BEAM | Passenger’s Side High Beam |
| LH HI BEAM | Driver’s Side High Beam |
| FUEL PUMP | Fuel Pump |
| EMISSIONS | Emissions |
| INJECTORS | Injectors |
| ABS | Anti-lock Brake System |
| PCM/ECM | Powertrain Control Module/Engine Control Module |
| EPS | Electric Power Steering |
| PARK LPS | Park Lamps |
| WIPER | Windshield Wiper |
| IP IGN | Ignition |
| A/C CLUTCH | Air Conditioning Clutch |
| AFTERCOOL | Aftercooler |
| ABS2 | Anti-lock Brake System |
| ECM/TRANS | Engine Control Module, Transmission |
| BACK UP | Back-Up Lamps |
| TRUNK/ OUTLET | Trunk, Accessory Power Outlet |
| S BAND/ ONSTAR | Audio, OnStar® |
| LIGHTER | Cigarette Lighter |
| MIRRORS | Mirrors |
| HTD SEATS | Heated Seats |
| CAN VENT | Canister Vent |
| Relays | |
| REAR DEFOG | Rear Defogger |
| COOLING FAN2 | Cooling Fan 2 |
| WIPER2 | Windshield Wiper 2 |
| CRANK | Starter |
| COOLING FAN1 | Cooling Fan 1 |
| FUEL PUMP | Fuel Pump |
| WIPER1 | Windshield Wiper 1 |
| COOL SER/PAR | Series/Parallel Cooling Fan (Cobalt SS) |
| POWERTRAIN | Powertrain |
| A/C CLUTCH | Air Conditioning Clutch |
| AFTRCOOL | Aftercooler Pump (Cobalt SS) |
| RUN/CRANK | Run, Crank |
