Chevrolet Aveo 2009 Fuse Box Info

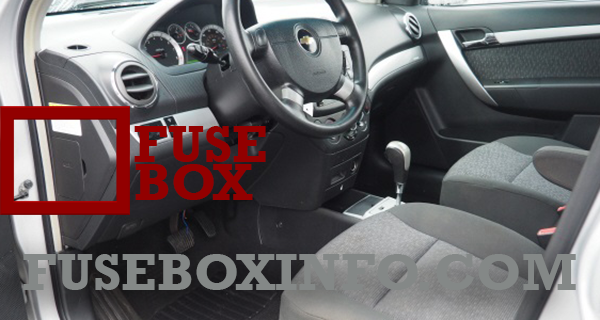

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| AUDIO | Audio, Clock, Immobilizer |
| AUDIO/RKE | A/C Switch, Clock, Power Mirror Unit, Audio, Anti-Theft Module, TPMS |
| B/UP LAMP | PNP Switch, Reverse Lamp Switch |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| CIGAR | Cigar Lighter |
| CLUSTER | Brake Switch, TPMS, Anti-Theft Module |
| DEFOG MIRROR | Power Mirror Unit, A/C Switch |
| RR DEFOG | Rear Defog |
| DOOR LOCK | Door Lock |
| NA DRL | NA DRL Circuit |
| MIRROR/ SUNROOF | Mirror Control Switch, Room Lamp, A/C Switch |
| EMS 1 | Engine Room Fuse Block, TCM, VSS, Fuel Pump |
| EMS 2 | Stoplamp Switch |
| HORN | Horn |
| OBD | DLC, Immobilizer |
| CLUSTER/ ROOM LAMP | Trunk Room Lamp, Trunk Open Switch, IPC, Room Lamp |
| SDM | Sensing and Diagnostic Module |
| SOKET | Power Jack |
| STOP LAMP | Brake Switch |
| SUNROOF | Sunroof Module (Option) |
| T/SIG | Hazard Switch |
| WIPER | Wiper Switch, Wiper Motor |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| FAN HI | Cooling Fan HI Relay |
| ABS-1 | EBCM |
| ABS-2 | EBCM |
| SJB BATT | Instrument Panel Fuse Block |
| ACC/IG1 | IGN1 Relay |
| IG2/ST | IGN2 Relay, Starter Relay |
| ACC/RAP | Instrument Panel Fuse Block |
| P/WINDOW-2 | Power Window Switch |
| P/W WINDOW-1 | Power Window Switch |
| FAN LOW | Cooling Fan LOW Relay |
| A/CON | A/C Compressor Relay |
| PKLP LH | Tail Lamp (LH), Side Marker (LH), Turn Signal & Parking Lamp (LH), License Lamp |
| PKLP RH | Tail Lamp (RH), Side Marker (RH), Turn Signal & Parking Lamp (RH), License Lamp, I/P Fuse Block |
| ECU | ECM, TCM |
| FRT FOG | Front Fog Lamp Relay |
| F/PUMP | Fuel Pump Relay |
| HAZARD | Hazard Switch, Hood Contact Switch |
| HDLP HI LH | Head Lamp (LH), IPC |
| HDLP HI RH | Head Lamp (RH) |
| IPC | IPC |
| HDLP LO LH | Head Lamp (LH), I/P Fuse Block |
| HDLP LO RH | Head Lamp (RH) |
| EMS-1 | ECM, Injector |
| DLIS | Ignition Switch |
| EMS-2 | EVAP Canister Purge Solenoid, Thermostat Heater, HO2S, MAF Sensor |
| SPARE | Not Used |
| F/PUMP RELAY | Fuel Pump |
| STARTER RELAY | Starter |
| PARK LAMP RELAY | Park Lamp |
| FRONT FOG RELAY | Fog Lamp |
| HDLP HIGH RELAY | Head Lamp High |
| HDLP LOW RELAY | Head Lamp Low |
| FAN HIGH RELAY | Cooling Fan High |
| FAN LOW RELAY | Cooling Fan Low |
| A/CON RELAY | Air Conditioner |
| ENGINE MAIN RELAY | Main Power |
| ACC/RAP RELAY | I/P Fuse Block |
| IGN-2 RELAY | Ignition |
| FUSE PULLER | Fuse Puller |
