Chevrolet Aveo 2005 Fuse Box Info
Passenger compartment fuse box location:

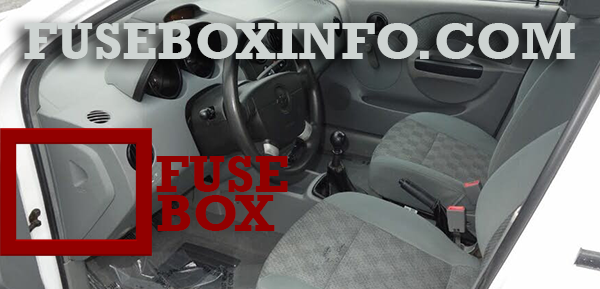

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| LTR | Cigar Lighter |
| HORN, REAR/FOG | Horn, Rear Fog Lamps |
| RADIO, CLK | Audio, Clock |
| STOP | Stop Lamp |
| TRN/SIG | Turn Signal |
| CLSTR, HAZRD | Instrument Panel Cluster, Hazard Flasher |
| CLSTR, CLK | Instrument Panel Cluster, Clock |
| DR/LCK | Door Lock, Remote Keyless Entry |
| BCK/UP | Back-Up Lamp |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| WPR, WSWA | Wiper, Washer |
| DIS, INJECTOR | Direct Ignition System, Injector |
| ENG FUSE | Engine Fuse |
| AIRBAG | Airbag |
| HVAC | HVAC Blower |
| ABS | Anti-lock Brake System |
| BLANK | Not Used |
| BLANK | Not Used |
| DIODE (ABS) | Anti-lock Brake System Diode |
| BLANK | Not Used |
| BLANK | Not Used |
| CLK, RADIO | Clock, Audio |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| HI BEAM RT | Passenger’s Side Headlamp High |
| DIODE (FOG) | Fog Lamp Diode |
| HI BEAM LT | Driver’s Side Headlamp High |
| BLANK | Not Used |
| LOW BEAM RT | Passenger’s Side Headlamp Low |
| ILLUM RT | Parking Lamp Right Side, Illumination Circuit |
| LOW BEAM LT | Driver’s Side Headlamp Low |
| ILLUM LT | Parking Lamp Left Side, License Plate Lamp |
| INT LTS | Room Lamp |
| BLANK | Not Used |
| DEFOG | Defogger |
| S/ROOF | Sunroof |
| ILLUM LAMPS | Illumination Relay |
| HORN | Horn |
| HEAD LAMPS | Headlamps |
| FUEL | Fuel Pump |
| A/C | Air Conditioning Compressor |
| FOG LAMPS | Front Fog Lamp |
| HVAC BLOWER | Heating, Ventilation, Air Conditioning Blower |
| ABS | Anti-lock Brake System |
| I/P FUSE BATT. | Instrument Panel Fuse Box |
| COOL FAN | Radiator Fan |
| IGN 2 | Ignition 2 |
| BLANK | Blank |
| IGN 1 | Ignition 1 |
| PWR WNDW | Power Windows |
| SPARE | Spare |
| BLANK | Not Used |
| COOL FAN LOW | Cooling Fan Low |
| HEAD LAMPS HI | Headlamp High |
| HEAD LAMPS LOW | Headlamp Low |
| PWR WNDW | Power Window |
| FRT FOG | Fog Lamp |
| COOL FN CNTRL | Cooling Fan Control |
| FUEL PUMP | Fuel Pump |
| A/C COMPRSR | Air Conditioning Compressor |
| COOL FAN HI | Cooling Fan High |
| ILLUM LAMPS | Illumination Lamps |
| BLANK | Not Used |
