Chevrolet HHR 2011 Fuse Box Info

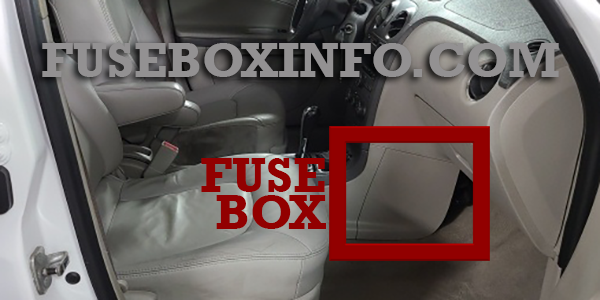

Passenger compartment fuse box location:
The interior fuse box is located on the passenger’s side of the console behind the forward panel.

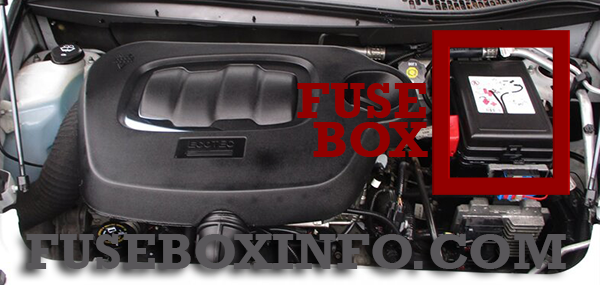

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Fuse Puller |
| 2 | Empty |
| 3 | Empty |
| 4 | Empty |
| 5 | Empty |
| 6 | Amplifier |
| 7 | Cluster |
| 8 | Ignition Switch, PASS-Key® III+ |
| 9 | Stoplamp |
| 10 | Heating, Ventilation, Air Conditioning, PASS-Key® III+ |
| 11 | Empty |
| 12 | Empty |
| 13 | Airbag |
| 14 | Empty |
| 15 | Windshield Wiper |
| 16 | Climate Control System, Ignition, Rear View Camera |
| 17 | Power Windows |
| 18 | Empty |
| 19 | Electric Power Steering, Steering Wheel Controls |
| 20 | Sunroof |
| 21 | Empty |
| 22 | Empty |
| 23 | Audio System |
| 24 | XM Radio™, OnStar™ |
| 25 | Engine Control Module, Transmission Control Module |
| 26 | Door Locks |
| 27 | Interior Lights |
| 28 | Steering Wheel Control Illumination |
| 29 | Empty |
| Relays | |
| 30 | Climate Control System |
| 31 | Empty |
| 32 | Retained Accessory Power (RAP) |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Electric Power Steering |
| 2 | Rear Defogger |
| 3 | Empty |
| 4 | Body Control Module 3 |
| 5 | Starting System |
| 6 | Body Control Module 2 |
| 7 | Rear Power Plug (Panel Van Only) |
| 8 | Empty |
| 9 | Air Conditioning Clutch Diode |
| 10 | Liftgate, Sunroof |
| 11 | Empty |
| 12 | Rear Power Outlet (Panel Van Only) |
| 13 | Fuel Pump |
| 20 | Rear Wiper |
| 21 | Mirror |
| 22 | Air Conditioning |
| 23 | Heated Seats (Option) |
| 25 | Fuse Puller |
| 27 | Empty |
| 29 | Cigarette Lighter |
| 30 | Power Outlet |
| 31 | Daytime Running Lamps |
| 32 | Empty |
| 33 | Emissions |
| 36 | Power Windows |
| 37 | Power Seat (Option) |
| 40 | Cooling Fan |
| 41 | Engine Control Module |
| 42 | Empty |
| 43 | Engine Control Module, Transmission |
| 44 | Antilock Brake System (Option) |
| 45 | Injectors, Ignition Module |
| 46 | Backup Lamps |
| 47 | Heated Seat |
| 49 | Windshield Washer Pump |
| 53 | Fog Lamps (Option) |
| 56 | Sensing and Diagnostic Module (SDM) |
| 57 | Antilock Brake System (Option) |
| 58 | Windshield Wiper Diode |
| 59 | Windshield Wiper |
| 60 | Horn |
| 61 | Antilock Brake System (Option) |
| 62 | Instrument Panel, Ignition |
| 63 | Driver’s Side High Beam |
| 64 | Canister Vent |
| 65 | Driver’s Side Low Beam |
| 66 | Passenger’s Side Low Beam |
| 67 | Passenger’s Side High Beam |
| 69 | Parking Lamps |
| Relays | |
| 14 | Rear Defogger Relay |
| 15 | Air Conditioning Clutch |
| 16 | Empty |
| 17 | Rear Wiper |
| 18 | Liftgate Release |
| 19 | Fuel Pump |
| 24 | Empty |
| 26 | Powertrain |
| 28 | Daytime Running Lamps |
| 34 | Starting System |
| 35 | Empty |
| 38 | Empty |
| 39 | Windshield Washer Pump |
| 48 | Rear Windshield Washer |
| 50 | Cooling Fan |
| 51 | Run, Crank |
| 52 | Windshield Wiper |
| 54 | Fog Lamps (Option) |
| 55 | Horn |
| 68 | Parking Lamps |
| 70 | Windshield Wipers |
| 71 | Headlamp Low-Beam |
| 72 | Headlamp High-Beam |
A Center High-Mounted Stoplamp Relay, and a Rear Access Panel Door Interlock Relay (Panel Van only), are located underhood in front of the left shock tower.
The Left Rear Access Panel Door Relay (Panel Van Only), and the Right Rear Access Panel Door Relay (Panel Van Only) are located in the rear of the vehicle behind the right rear quarter trim panel.
A Rear Power Plug mini fuse (Panel Van Only) is located near the battery in the rear of the vehicle.
