Buick Encore GX 2025 Fuse Box

Buick Encore GX 2025 Fuse Box Info

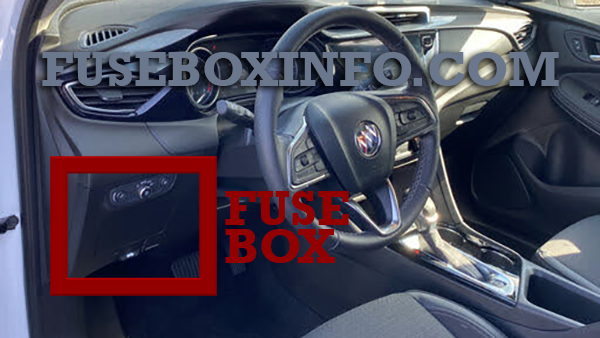

Passenger compartment fuse box location:

The instrument panel fuse block is on the underside of the driver side instrument panel.

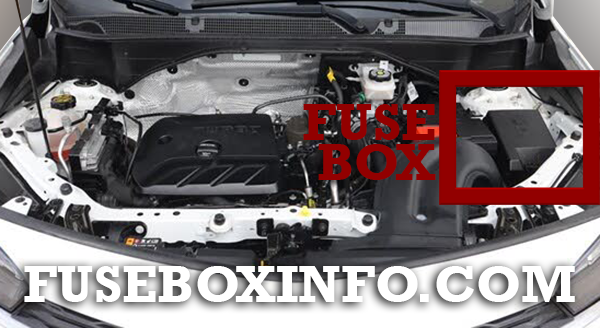

Engine compartment fuse box location:

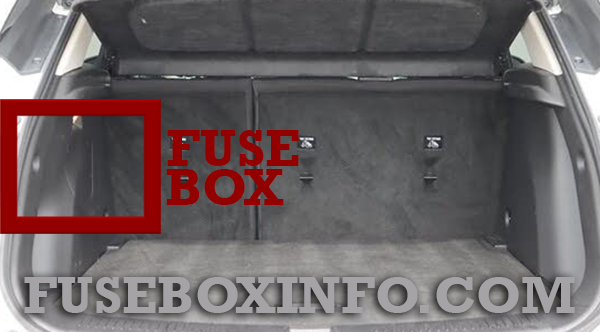

Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
Fuses
01 LUMBAR
02 SUNROOF
03 VBAT_3
04 VBAT_7
05 VBAT_6
06 AUTO HVAC
07 CGM
08 ST_WHL_HTR
09 DISPLAY
10 RADIO
11 ONSTAR (ERA)
12 PARK_ASSIST
13 MAN. HVAC
14 WL CHARGER
15 VBAT_2
16 VBAT_1
17 SWC BKLT
18 N/A
19 N/A
20 CLOCK SPRING
21 OCC SEN
22 DLC
23 SDM
24 IGN_SW/ESCL
25 PWR L-GATE MDL
26 SEC FUSE-2
27 PWR SEAT CO-DR
28 VBAT_8
29 DC-DC AT
30 PWR L-GATE MDL
31 OSRVM
32 FRT HS PWR-1
33 VBAT_4
34 FRT HS PWR-2
35 AMPLIFIER
36 ONSTAR (TCP)
37 PWR SEAT DR
38 DC-DC_400W
39 SEC FUSE-1
40 HVAC_BLOWER
Circuit
Breaker

CB1 N/A
CB2 APO
Relay
K01 i-RAP_ACC
K02 RUN
K03 LOGISTICS
K04 N/A
K05 N/A
K06 N/A




Engine compartment fuse box:

Fuse/Relay N° Functions
Micro Fuses
02 CLSTR
03 N/A
06 OSRVM DEFOG
07 L/GATE RELSE
08 N/A
09 VENT SEAT
10 N/A
11 N/A
12 N/A
14 ISRVM REAR VIEW CAMERA
15 N/A
16 HDLP LVL
17 N/A
18 FTZM
19 N/A
20 N/A
22 TRLR ST/TRN LT - TRLR
24 ESCL
25 ECM TCM RUN/CRNK
26 FRT/REAR WSW PUMP
27 IGN COIL-GAS
28 AERO SH
29 AHL AFL MDL
31 ECM PT2
32 ENG COMP2
33 RVC
34 FRT FOG LP
35 ENG COMP1
36 ECM PT1
38 TRLR PRK LAMP - TRLR
40 N/A
41 REAR WPR
42 HORN
44 REAR WPR PRK
45 A/C CLTCH
46 N/A
47 ECM BATT-GAS
49 HDLP HI LH
50 N/A
51 HDLP HI RH
52 TRLR ST/TRN RT - TRLR
53 AUX WATER PUMP
54 PEPS
56 CNSTR VENT SOL-GAS
57 N/A
58 TCM BATT
Spare
Fuses

SF01 SPARE
SF02 SPARE
SF03 SPARE
SF04 SPARE
SF05 SPARE
SF06 SPARE
ET Fuses
48 N/A
J-Case
Fuses

01 N/A
05 N/A
13 REAR WNDW DEFOG
21 E-BOOST PWR1
23 STRTR PINION
59 N/A
62 N/A
63 N/A
M-case
Fuses

04 FRT WPR
30 STRTR SOL
37 AUX OIL PUMP
39 N/A
43 PWR WNDW RT
55 PWR WNDW LT
60 N/A
61 N/A
Mini
Relays

K03 RUN/CRNK
K04 REAR DEFOG
K06 STRTR PINION
K08 PT RLY
K09 N/A
HC Micro
Relays

K01 N/A
K02 N/A
K05 STRTR SOL
K07 A/C CNTRL
K10 N/A
Ultra
Micro
Relays

K11 N/A



Luggage compartment fuse box:

Fuse/Relay N° Functions
Fuses
01 N/A
02 RDCM ELEC
03 N/A
04 N/A
05 DC/AC INVERTER
06 N/A
07 RDCM
08 RR SEAT HEAT PWR1
09 N/A
10 RR SEAT HEAT PWR2
11 N/A
12 N/A
13 N/A
14 N/A
15 N/A
16 N/A
17 N/A
18 N/A
19 N/A
20 N/A
21 N/A
Circuit
Breakers

CB1 N/A
Relays
K01 N/A
K02 N/A
K03 N/A
K04 N/A
K05 N/A
