Buick Enclave 2025 Fuse Box

Buick Enclave 2025 Fuse Box Info



Passenger compartment fuse box location:

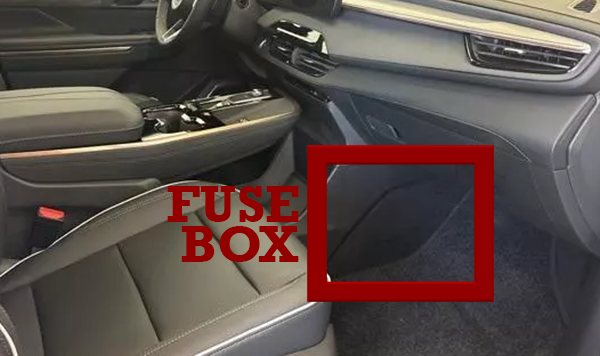

The instrument panel fuse box is inside the center console on the passenger side of the vehicle.



Engine compartment fuse box location:



Luggage compartment fuse box location:

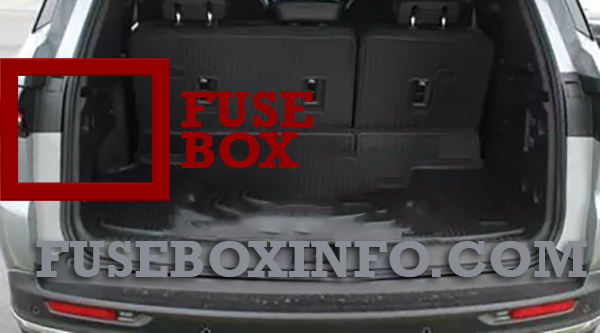

The rear compartment fuse box may be located behind two trim panels on the driver side of the rear storage compartment.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
1 BLOWER MOTOR
2 ELM 1 – Exterior Lighting Module 1
3 SCL – Steering Column Lock
4 ELM 2 – Exterior Lighting Module 2
5 BCM 2 – Body Control Module 2
6 OHC – OnStar Hands Free Calling
7 STEERING WHEEL CONTROL
8 TELEMATICS
9 BCM BATT 1& ETS SHIFTER – Body Control Module Battery 1 and
Euro Truck Shifter
10

UGDO – Universal Garage Door Opener

Spare

11 HVAC & TPIM – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module
12 STEERING COLUMN LOCK
13 CGM & DLC – Central Gateway Module and Data Link Connector
14 EBCM & PCM – Electronic Brake Control Module and Power Control Module
15 AUX DISPLAY
16 APO_RR_CARGO – Auxiliary Power Outlet_Rear_Cargo
17

SDM_AOS – Sensing Diagnostic Module_Automatic Occupant Sensor

Spare

18 SEAT FAN CTR/HDLP CO & DR – Seat Fan Control Headlamp CO and Driver
19 ELM RC – Exterior Lighting Module Ride Control
20

VKM – Virtual Key Module

Spare

21 VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2
22 SDM – Sensing Data Module
23 -
24 WCM – Wireless Charging Module
25 HVPO – High Voltage Power Outlet
26 Spare
27 AUX
28 LRR – Long Range Radar
29 SRR – Short Range Radar
30 -
31 BCM 3 – Body Control Module 3
32 HSWM – Heated Steering Wheel Module
33 -
34 CPM – Column Position Module
35 AMPLIFIER
36 DC/DC BATT 2 – Direct Current/Direct Current Battery 2
37 BCM 4 – Body Control Module 4
38 AMPLIFIER 2
39 ELM 6 – Exterior Lighting Module 6
40 DCAC – Direct Current Alternating Current




Engine compartment fuse box:

Fuse/Relay N° Functions
1 Spare
2 Spare
3 FRT_WIPER – Front Wiper
4 Spare
5 Spare
6 HDLP RT – Headlamp Right
7 RR_WIPER – Rear Wiper
8 Spare
9 RR DEFOG – Rear Defog
10 ELM_4 – Exterior Lighting Module 4
11 HDLP LT – Headlamp Left
12 HORN
13 Spare
14 Spare
15 Spare
16 RR_WPR_CTRL – Rear Wiper Control
17 RLY COIL GND – Relay Coil Ground
18 DC DC BATT1 – Direct Current Direct Current Battery 1
19 ELM7 – Exterior Lighting Module 7
20 Spare
21 Spare
22 ELM_5 – Exterior Lighting Module 5
23 WIPER_DE_ICE
24 EBCM1 – Electronic Brake Control Module 1
25 ELM_3 – Exterior Lighting Module 3
26 Spare
27 TRLR_LTP_TRN_LT– Trailer Lamp Turn Left
28 TRLR_LTP_TRN_RT – Trailer Lamp Turn Right
29 WASH
30 AERO SHUTTER
31 Spare
32 PCM – Power Control Module
33 Spare
34 Spare
35 PCM – Power Control Module
36 STRTR MTR – Starter Motor
37 AC CLUTCH GAS – Alternating Current Clutch Gas
38 SOL CP_TURBO BYPASS – Solenoid Turbo Bypass
39 COIL ODD
40 Spare
41 B721_B70_M674
42 Spare
43 Spare
44 Spare
45 Spare
46 Spare
47 Spare
48 Spare
49 Spare
50 E-PHASER – Electronic Phaser
51 Spare
52 PCM – Power Control Module 2
53 Spare
54 AIR_PUMP
55 Spare
56 STRTR PINION – Starter Pinion
57 WATER PUMP





Luggage compartment fuse box:

Fuse/Relay N° Functions
1 RR_BLOW – Rear Blow
2 DSP_CODR – Door Switch Panel_Code
3 TAILGATE
4 TRLR_BAT1 – Trailer Battery 1
5 ACP2 – AWD Control Processor 2
6 PWR_FOLD_SEAT_L_R – Power Fold Seat Left and Rear
7 DSP – Door Switch Panel
8 Spare
9 LAMPS_RT – Right Lamps
10 Spare
11 Spare
12 ELM 2 – Exterior Lighting Module 2
13 LAMPS_LT – Left Lamps
14 SP_DRVR – Driver
15 MSM_DRIVER – Memory Seat Module Driver
16 MTR PFTS_ROW2_L
17 FRT – Front
18 SBP_CO_DRIVER
19 MTR PFTS_ROW2_R
20 Spare
21 RFA – Remote Function Actuator
22 Spare
23 Spare
24 Spare
25 Spare
26 CANISTER
27 UPA – Universal Park Assist
28 RDCM – Right Door Control Module
29 SBZA – Side Blind Zone Assist
30 TRLR_PRK_LMP – Trailer Park Lamp
31 FCM – Front Camera Module
32 Spare
33 ROW2_BAT1 – Second Row Battery 1
34 Spare
35 Spare
36 ROW2_BAT2 – Second Row Battery 2
37 Spare
38 Spare
39 Spare
40 TRLR_BACK_UP
41 Spare
42 DSP – Door Switch Panel
43 POWER FOLD SEAT SW/N 3_ROW
44 OUT_OF_PARK_DISABLE
45 TRAILER_BRAKE
46 ACP3 – AWD Control Processor 3
47 FTZM – Fuel Tank Zone Module
48 SP_PASS
49 Spare
50 ELM 1 – Exterior Lighting Module 1
51 FRT_BAT2 – Front Battery 2
52 Spare
53 Spare
54 ROW2_FOLD_RH – Second Row Right-hand Fold
55 ROW3 – Third Row
56 SUNROOF
57 RDCM – Right Door Control Module
