Buick Enclave 2016 Fuse Box

Buick Enclave 2016 Fuse Box Info



Fuse box location:

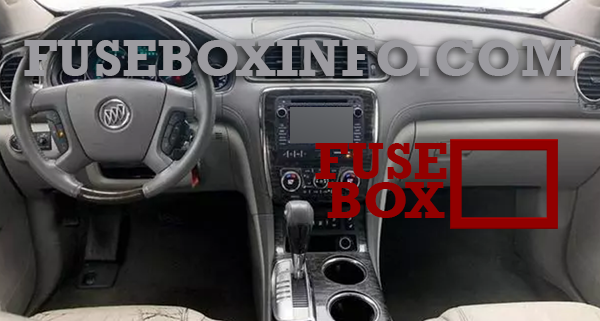

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle.

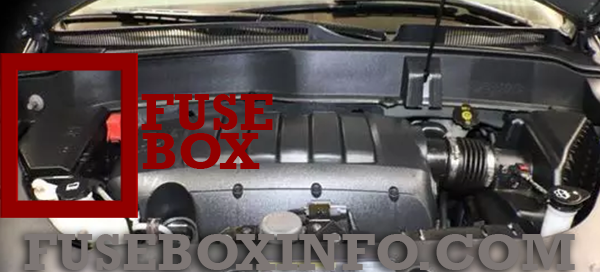

Engine compartment fuse box:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay Name Functions
# GMC NON HID = Lo Beam
GMC NON HID = High Shutter
Chevy = Fog Lamps
Buick China = Rear Fog Lamp
AIRBAG Airbag
AMP Amplifier
BCK UP/ STOP Back-up Lamp/Stoplamp
BCM Body Control Module
CNSTR VENT Canister Vent
CTSY Courtesy Lamps
DR LCK Door Locks
DRL/ LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay
DSPLY Display
FRT WSW Front Windshield Washer
HTD/COOL SEAT Heated/Cooling Seats
HVAC Heating, Ventilation and Air Conditioning
INADV PWR INT LAMPS Inadvertent Power/ Interior Light Pipe Lamps
INFOTMNT/ MSM Infotainment/ Memory Seat Module
LT TRN SIG Driver Side Turn Signal
OBS DET/URS Rear Park Assist/ Side Blind Zone Alert/Forward Collision Alert/ Universal Remote System
PDM Power Mirrors, Liftgate Release
PWR MODE Power Mode
PWR MIR Power Mirrors
RDO Radio
REAR WPR Rear Wiper
RT TRN SIG Passenger Side Turn Signal
STR WHL ILLUM Steering Wheel Illumination
USB CHRG USB Charging
LT/PWR/ SEAT Driver Side Power Seat Relay
RT/PWR/ SEAT Passenger Side Power Seat Relay
PWR/ WNDW Power Windows Relay
PWR/ COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
UNLCK Power Unlock Relay
DRL/ LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay
LT/UNLCK Driver Side Unlock Relay
DRL/ LO BEAM Daytime Running Lamps Relay (If Equipped)
REAR FOG LAMPS (CHINA) Rear Fog Lamps (China)
FRT/WSW Front Windshield Washer Relay



Engine compartment fuse box:

Fuse/Relay Name Functions
A/C CLUTCH Air Conditioning Clutch
ABS MTR Antilock Braking System (ABS) Motor
AFS Adaptive Forward Lighting System
AIRBAG Airbag System
AUX POWER Auxiliary Power
AUX VAC PUMP Auxiliary Vacuum Pump
AWD All-Wheel-Drive System
BATT 1 Battery 1
BATT 2 Battery 2
BATT 3 Battery 3
CIGAR LIGHTER Cigar Lighter
ECM 1 Engine Control Module 1
ECM/ FPM IGN Engine Control Module/Fuel Pump Control Module Ignition
EMISSION 1 Emission 1
EMISSION 2 Emission 2
EVEN COILS Even Injector Coils
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
* Headlamp Washer (China)/Trailer Brake
FPM Fuel Pump Power Module
FOG LAMP (GMC) Fog Lamps (GMC)
HTD STR WHL Heated Steering Wheel
HORN Horn
HTD MIR Heated Outside Rearview Mirror
HUMIDITY/ MAF Humidity Sensor/ MAF Sensor
HVAC BLWR Heating, Ventilation and Air Conditioning Blower
LT HI BEAM Left High-Beam Headlamp
LT LO BEAM Left Low-Beam Headlamp
LT PRK Left Parking Lamp
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal
ODD COILS Odd Injector Coils
PWR L/GATE Power Liftgate
PWR OUTLET Power Outlet
RR APO Rear Accessory Power Outlet
RR DEFOG Rear Defogger
RR HVAC Rear Climate Control System
RT HI BEAM Right High-Beam Headlamp
RT LO BEAM Right Low-Beam Headlamp
RT PRK Right Parking Lamp
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal
RVC SNSR Regulated Voltage Control Sensor
S/ROOF/ SUNSHADE Sunroof
SERVICE Service Repair
SPARE Spare
STOP LAMPS (China Only) Stop Lamps (China Only)
STRTR Starter
TCM Transmission Control Module
TRANS Transmission
TRLR BCK/UP Trailer Back-up Lamps
TRLR BRK Trailer Brake
TRLR PRK LAMP Trailer Parking Lamps
TRLR PWR Trailer Power
WPR/WSW Windshield Wiper/Washer
A/C CMPRSR CLTCH Air Conditioning Compressor Clutch Relay
AUX VAC PUMP Auxiliary Vacuum Pump Relay
CRNK Switched Power Relay
FAN 1 Cooling Fan 1 Relay
FAN 2 Cooling Fan 2 Relay
FAN 3 Cooling Fan 3 Relay
FOG LAMP (GMC) Fog Lamps (GMC)
HI BEAM High-Beam Headlamps Relay
HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps Relay
HORN Horn Relay
IGN Ignition Main Relay
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp Relay
PRK LAMP Parking Lamp Relay
PWR/TRN Powertrain Relay
RR DEFOG Rear Window Defogger Relay
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Relay
Stop Lamps (CHINA ONLY) Stop Lamps (China Only) Relay
TRLR BCK/UP Trailer Back-up Lamps Relay
WPR Windshield Wiper Relay
WPR HI Windshield Wiper High Speed Relay
