Audi Q7 2018 Fuse Box Info
Passenger compartment fuse box location:

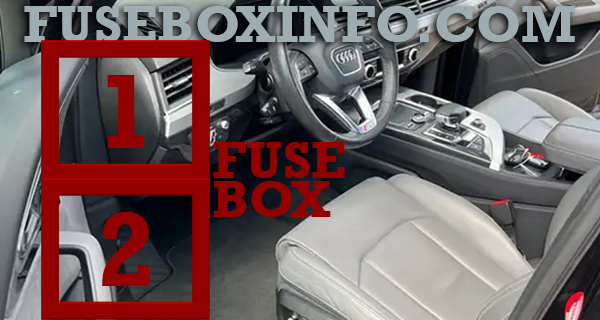

The fuse box 1 is located on the left front side of the cockpit. The fuse box 2 is located in the driver's footwell (left-hand drive vehicle).

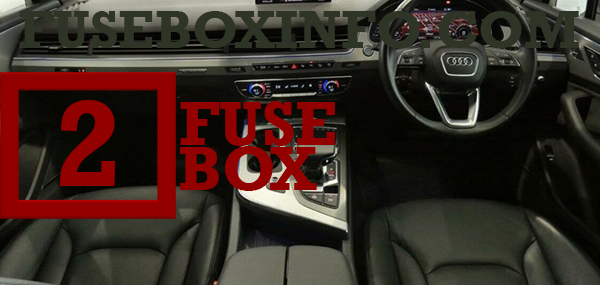

The fuse box 2 is located in the front passenger's footwell (right-hand drive vehicle).
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Functions |
| 2 | Telephone |
| 4 | Head-up display |
| 5 | Audi music interface, USB charging port |
| 6 | Front climate control system controls |
| 7 | Steering column lock |
| 8 | Infotainment system display |
| 9 | Instrument cluster |
| 10 | Infotainment unit |
| 11 | Light switch |
| 12 | Steering column electronics |
| 14 | Infotainment system |
| 15 | Power steering column adjustment |
| 16 | Steering wheel heating |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Functions |
| Fuse panel A (brown) | |
| 2 | Mass airflow sensor, camshaft adjustment, charge air cooler pump |
| 3 | Exhaust doors, fuel injectors, radiator inlet |
| 4 | Vacuum pump, hot water pump, particulate sensor, biodiesel sensor |
| 5 | Brake light sensor |
| 6 | Engine valves, camshaft adjustment |
| 7 | Heated oxygen sensor, mass airflow sensor |
| 8 | Water pump, high pressure pump, high pressure regulator valve |
| 9 | Hot water pump |
| 10 | Oil pressure sensor, oil temperature sensor |
| 11 | Clutch pedal position sensor |
| 12 | Engine valves |
| 13 | Radiator fan |
| 14 | Fuel injectors, engine coontrol module |
| 15 | Ignition coils, heated oxygen sensors |
| 16 | Fuel pump |
| Fuse panel B (red) | |
| 1 | Ignition coils |
| 2 | Engine valves |
| 5 | Engine mount |
| 6 | Emergency call system |
| 7 | Instrument panel |
| 8 | Climate control system (blower) |
| Fuse panel C (black) | |
| 1 | Front seat heating |
| 2 | Windshield wipers |
| 3 | Left headlight electronics |
| 4 | Panorama glass roof |
| 5 | Left front door control module |
| 6 | Sockets |
| 7 | Right rear door control module |
| 9 | Right headlight electronics |
| 10 | Windshield washer system/headlight washer system |
| 11 | Left rear door control module |
| Fuse panel D (brown) | |
| 1 | Seat ventilation, seat heating, rearview mirror, climate control system, rear climate control system controls |
| 2 | Gateway, climate control system |
| 3 | Sound actuator/exhaust sound tuning |
| 4 | Transmission heating valve |
| 5 | Engine start |
| 8 | Night vision assist, garage door opener |
| 9 | Adaptive cruise control |
| 11 | Video camera |
| 12 | Matrix LED headlight/right LED headlight |
| 13 | Matrix LED headlight/left LED headlight |
| Fuse panel E (red) | |
| 1 | Anti-theft alarm system |
| 2 | Engine control module |
| 3 | Lumbar support |
| 4 | Automatic transmission selector mechanism |
| 5 | Horn |
| 6 | Electromechanical parking brake |
| 7 | Gateway control module |
| 8 | Interior headliner lights |
| 10 | Airbag control module |
| 11 | Electronic Stabilization Control (ESC) |
| 12 | Diagnostic connector, light/rain sensor |
| 13 | Climate control system |
| 14 | Right front door control module |
| 15 | A/C compressor |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuse panel A (black) | |
| 5 | Air suspension |
| 6 | Automatic transmission |
| 8 | Rear seat heating |
| 9 | Left tail lights |
| 10 | Left safety belt tensioner |
| 11 | Central locking system |
| 12 | Electric luggage compartment lid |
| Fuse panel B (red) | |
| 1 | Rear blower control |
| 2 | Sound-amplifier |
| 3 | AdBlue heating |
| 4 | Rear climate control system control panel |
| 5 | Trailer hitch (right light) |
| 7 | Trailer hitch |
| 8 | Trailer hitch (left light) |
| 9 | Trailer hitch (socket) |
| 10 | Sport differential |
| 11 | AdBlue heating |
| 12 | Third row seats |
| Fuse panel C (brown) | |
| 2 | Telephone |
| 3 | Lumbar support |
| 4 | Audi side assist |
| 5 | Rear Seat Entertainment preparation |
| 7 | Vehicle opening/start (NFC) |
| 8 | Smart module (tank) |
| 9 | CD /DVD player |
| 12 | Garage door opener |
| 13 | Rearview camera, peripheral cameras |
| 14 | Right tail lights |
| 16 | Right safety belt tensioner |
| Fuse panel D (red) | |
| Not assigned |
