Acura TSX 2014 Fuse Box Info

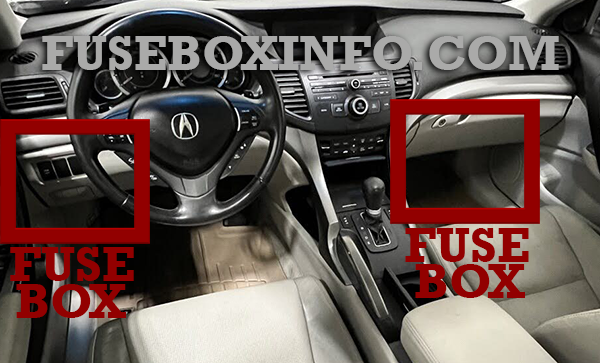

Passenger compartment fuse box location:
The driver’s side interior fuse box is located under the dashboard on the driver’s side. The passenger’s side interior fuse
box is located on the lower passenger’s side panel.

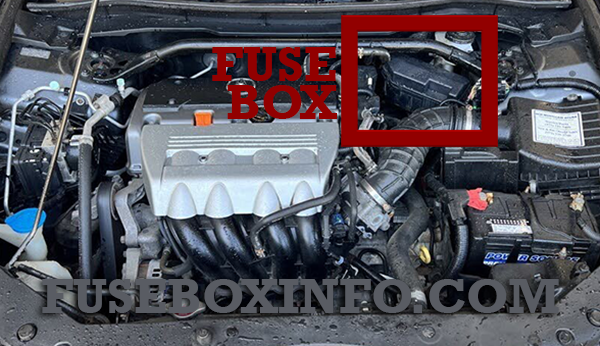

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not Used |
| 2 | (7.5A) | Seat Memory |
| 3 | 15A | Washer |
| 4 | 10A | Wiper |
| 5 | 7.5A | Meter |
| 6 | 7.5A | ABS/VSA |
| 7 | 15A | ACG |
| 8 | (7.5A) |
STS1 Starter DIAG2 |
| 9 | 20A | Fuel Pump |
| 10 | (10A) | VB SOL* |
| 11 | 10A | SRS |
| 12 | 7.5A | ODS (Occupant Detection System) |
| 13 | (7.5A) |
-1 STS2 |
| 14 | - | Not Used |
| 15 | 7.5A | Daytime Running Lights |
| 16 | 7.5A | A/C |
| 17 | 7.5A | Accessory, Key, Lock |
| 18 | 7.5A | Accessory |
| 19 | (20A) | Driver’s Power Seat Sliding |
| 20 | (20A) | Moonroof |
| 21 | (20A) | Driver’s Power Seat Reclining |
| 22 | 20A | Rear Driver’s Side Power Window |
| 23 | 20A | Front Accessory Power Socket |
| 24 | 20A | Driver’s Power Window |
| 25 | 15A | Driver’s Side Door Lock |
| 26 | (10A) | Left Front Fog Light |
| 27 | 10A | Left Side Small Lights (Exterior) |
| 28 | 10A | Left Headlight High Beam |
| 29 | 10A | TPMS |
| 30 | 15A | Left Headlight Low Beam |
| 31 | - | Not Used |
| 32 | (7.5A) | Engine Oil Level* |
1 4-cylinder models
2 6-cylinder models
3 Not available on all models
Passenger compartment fuse box (Passenger’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Right Headlight High Beam |
| 2 | 10A | Right Side Small Lights (Exterior) |
| 3 | (10A) | Right Front Fog Light |
| 4 | 15A | Right Headlight Low Beam |
| 5 | - | Not Used |
| 6 | 7.5A | Interior Lights |
| 7 | - | Not Used |
| 8 | 20A | Passenger’s Side Power Seat Reclining |
| 9 | 20A | Passenger’s Side Power Seat Sliding |
| 10 | 10A | Right Side Door Lock |
| 11 | 20A | Rear Passenger’s Side Power Window |
| 12 | 20A | Console Accessory Power Socket |
| 13 | 20A | Front Passenger’s Power Window |
| 14 | - | Not Used |
| 15 | (20A) | Premium AMP |
| 16 | - | Not Used |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 | 20A | Seat Heater |
| 20 | - | Not Used |
| 21 | - | Not Used |
| 22 | - | Not Used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
100A1 120A2 40A |
Battery
Passenger's Side Fuse Box |
| 2 |
70A (40A) 30A - 30A - |
EPS Passenger's Side Fuse Box ABS/VSA FSR - ABS/VSA Motor - |
| 3 |
50A (40A) 30A (60A) 30A 30A - 30A 30A 30A |
IG Driver's Side Fuse Box Passenger's Side Light Main Driver's Side Fuse Box Driver's Side Light Main Main Fan Motor -1 Wiper Motor2 Wiper Motor1 Sub Fan Motor2 |
| 4 | 40A | Rear Defogger |
| 5 |
20A - |
Sub Fan Motor1 -2 |
| 6 | - | Not Used |
| 7 | - | Not Used |
| 8 | 40A | Heater Motor |
| 9 | 15A | Hazard |
| 10 | 10A | Horn |
| 11 | - | Not Used |
| 12 | 15A | Stop |
| 13 | 15A | IG Coil |
| 14 | 15A | FI Sub |
| 15 | 10A | Backup |
| 16 | 7.5A | Interior Lights |
| 17 | 15A | FI Main |
| 18 | 15A | DBW |
| 19 |
- 7.5A |
Not Used1 Back Up FI ECU2 |
| 20 | 7.5A | MG Clutch |
| 21 | 7.5A |
Engine Oil Level1 Fan RLY2 |
1 4-cylinder models
2 6-cylinder models
