Acura TSX 2007 Fuse Box Info

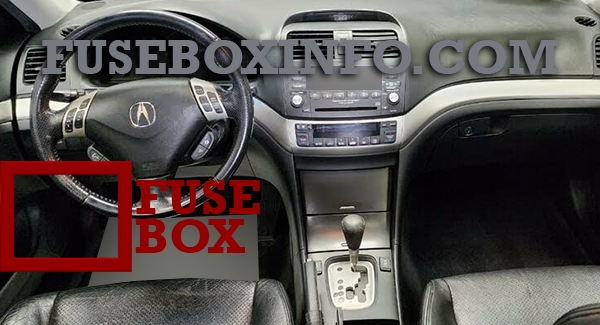

Passenger compartment fuse box location:
The interior fuse box is located on the driver’s lower left side.

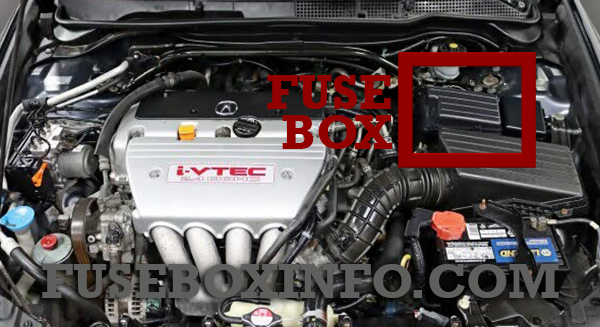

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | DBW |
| 2 | 15A | Ignition Coil |
| 3 | (10A) | Daytime Running Light* |
| 4 | 10A | LAF |
| 5 | 20A | Audio Amp |
| 6 | 10A | Interior Light |
| 7 | 10A | Back-Up Lights |
| 8 | 20A | Door Lock |
| 9 | 15A | Front Accessory Sockets |
| 10 | 7.5A | OPDS |
| 11 | 30A | Wiper |
| 12 | 7.5A | TPMS |
| 13 | 20A | Passenger’s Power Seat Reclining |
| 14 | 20A | Driver’s Power Seat Sliding |
| 15 | 20A | Heated Seat |
| 16 | 20A | Driver’s Power Seat Reclining |
| 17 | 20A | Passenger’s Power Seat Sliding |
| 18 | 15A | ACG |
| 19 | 15A | Fuel Pump |
| 20 | 10A | Washer |
| 21 | 7.5A | Meter |
| 22 | 10A | SRS |
| 23 | 7.5A | IGP (PGM-FI ECU) (ECM/PCM) |
| 24 | 20A | Left Rear Power Window |
| 25 | 20A | Right Rear Power Window |
| 26 | 20A | Passenger’s Power Window |
| 27 | 20A | Driver’s Power Window |
| 28 | 20A | Moonroof |
| 29 | - | Not Used |
| 30 | 7.5A | A/C |
| 31 | - | Not Used |
| 32 | 7.5A | ACC |
| 33 | - | Not Used |
* On Canadian models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Left Headlight Low |
| 2 | 30A | Rear Defroster Coil |
| 3 | 10A | Left Headlight Hi |
| 4 | 15A | Small Light |
| 5 | 10A | Right Headlight Hi |
| 6 | 15A | Right Headlight Low |
| 7 | 7.5A | Back Up |
| 8 | 15A | FI ECU (ECM/PCM) |
| 9 | 20A | Condenser fan |
| 10 | 20A | FR Fog Light |
| 11 | 20A | Cooling Fan |
| 12 | - | Not Used |
| 13 | 20A | Horn, Stop |
| 14 | 40A | Rear Defroster |
| 15 | 40A | Back Up, ACC |
| 16 | 15A | Hazard |
| 17 | 30A | VSA Motor |
| 18 | 40A | VSA |
| 19 | 40A | OP 1 |
| 20 | 40A | OP 2 |
| 21 | 40A | Heater Motor |
| 22 |
100A - |
Battery Not Used |
| 23 |
50A 50A |
+B IG1 Main Power Window Main |
