Acura RSX 2003 Fuse Box Info

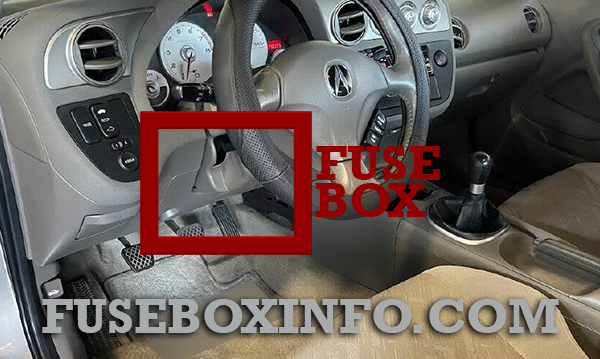

Passenger compartment fuse box location:
The interior fuse box is located underneath the steering column.

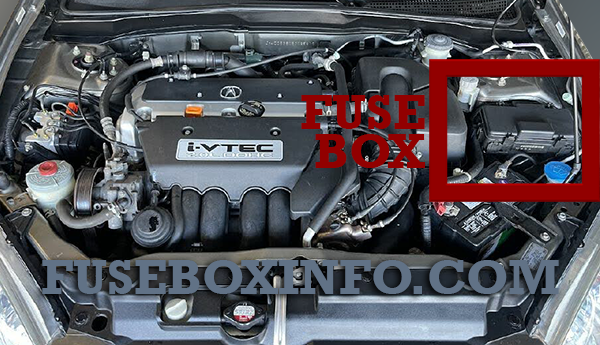

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Ignition Coil |
| 2 | LAF Heater |
| 3 | Daytime Running Lights1 |
| 4 | ACG (IG) |
| 5 | Not Used |
| 6 | Power Window Relay |
| 7 | Moonroof |
| 8 | Radio |
| 9 | Rear Wiper |
| 10 | Gauge panel |
| 11 | ABS |
| 12 | Daytime Running Lights1 |
| 13 | SRS |
| 14 | Power Mirror |
| 15 | Bass Speaker2 |
| 16 | Heated Seats1 |
| 17 | Fuel Pump |
| 18 | Accessory Power Sockets |
| 19 | Turn Signal |
| 20 | Front Wiper |
| 21 | Not Used |
| 22 | Front Passenger’s Power Window |
| 23 | Driver’s Power Window |
| 24 | Not Used |
| 25 | Not Used |
1 Canadian models only
2 Type-S only
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Condenser Fan |
| 2 | Small Light |
| 3 | Interior Light |
| 4 | Cooling Fan |
| 5 | Hazard |
| 6 | FI ECU |
| 7 | Horn, Stop |
| 8 | ABS (F/S) |
| 9 | Back Up |
| 10 | ABS Motor |
| 11 | Rear Demister |
| 12 | Heater Motor |
| 13 | Power Window |
| 14 | Option |
| 15 | Left Headlight |
| 16 | Door Lock |
| 17 | Right Headlight |
| 18 | Not Used |
| 19 | Main Fuse Battery |
| 20 | Main Fuse Ignition |
| 21-25 | Spare Fuses |
