Acura CL 2002 Fuse Box Info

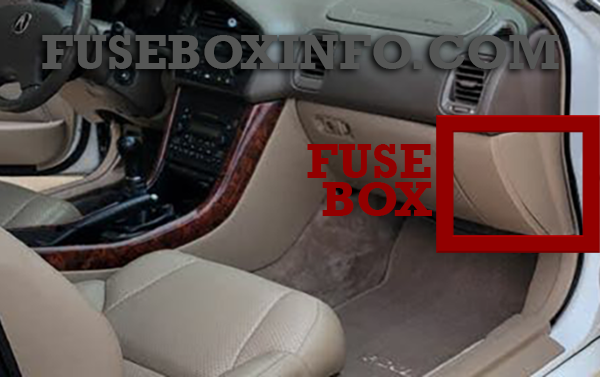

Passenger compartment fuse box location:
The interior fuse boxes are located on each side of the dashboard.

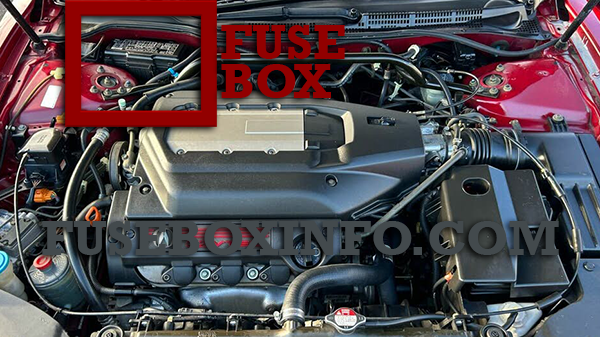

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Fuel Pump |
| 2 | 10A | Main SRS |
| 3 | 7.5A | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7.5A | Mirror, Heated Seat, Heated Mirror |
| 5 | 7.5A | Daytime Running Lights* |
| 6 | 15A | ECU (PCM), Cruise Control, VSA |
| 7 | 7.5A | Side SRS |
| 8 | 7.5A | ACC Relay, Navigation |
| 9 | 7.5A | Instrument Panel, Back-up Lights, Memory Seat |
| 10 | 7.5A | Turn Signals |
| 11 | 15A | IG Coil |
| 12 | 30A | Wiper, Washer |
| 13 | 7.5A | Starter Signal |
* On Canadian models
Passenger compartment fuse box (Passenger’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Moonroof Motor |
| 2 | 20A | Driver’s Power Seat Reclining, Memory Seat |
| 3 | 20A | Heated Seat |
| 4 | 20A | Driver’s Power Seat Sliding, Memory Seat |
| 5 | 20A | Passenger’s Power Seat Sliding |
| 6 | 20A | Passenger’s Power Seat Reclining |
| 7 | - | Not Used |
| 8 | 20A | Right Power Window |
| 9 | 20A | Radio, Power Outlet |
| 10 | 10A | Navigation System, Daytime Running Lights* |
| 11 | 7.5A | Interior Light, Seat Memory, HomeLink |
| 12 | 20A | Power Door Locks |
| 13 | 15A | Clock, Back Up, Small Light |
| 14 | 7.5A | ABS Motor Check |
| 15 | 20A | Driver’s Power Window |
| 16 | - | Not Used |
* On Canadian models
Passenger compartment fuse box (VSA fuse box - is located under the interior fuse box on the passenger’s side of the dashboard).:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | VSA F/S Relay |
| 2 | 20A | VSA Throttle Motor |
| 3 | - | Not Used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 1 | 20A | Condenser Fan |
| 1 2 | 30A | Condenser Fan |
| 2 | 7.5A | MG Clutch |
| 3 | 60A | IG1 Main |
| 4 | 40A | Rear Window Defogger |
| 5 | 40A | Heater Motor |
| 6 1 | 20A | TCS |
| 6 2 | 40A | VSA |
| 7 | 40A | Power Seat |
| 8 | 40A | Power Window Motor |
| 9 | 40A | Back Up, ACC |
| 10 | 15A | Spare Fuse |
| 11 | 10A | Spare Fuse |
| 12 | 7.5A | Spare Fuse |
| 13 1 | 20A | Cooling Fan |
| 13 2 | 30A | Cooling Fan |
| 14 | 120A | Battery |
| 15 | 30A | Spare Fuse |
| 16 | 20A | Spare Fuse |
| 17 | 15A | Hazard |
| 18 | 30A | ABS Motor |
| 19 | 15A | ACG S |
| 20 | 20A | Stop |
| 21 | 20A | ABS F/S Relay |
| 22 | 20A | Right Headlight |
| 23 | - | Not Used |
| 24 | 20A | Left Headlight |
1 Premium model
2 Type S
