Acura RDX 2017 Fuse Box Info

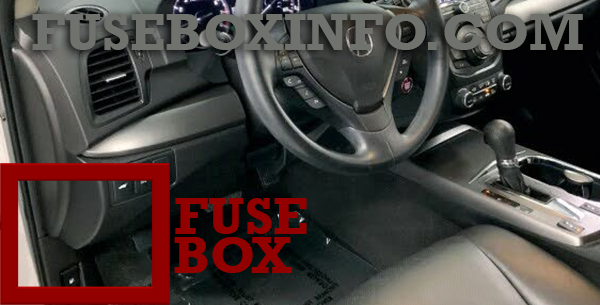

Passenger compartment fuse box location:
The interior fuse box is located under the dashboard.

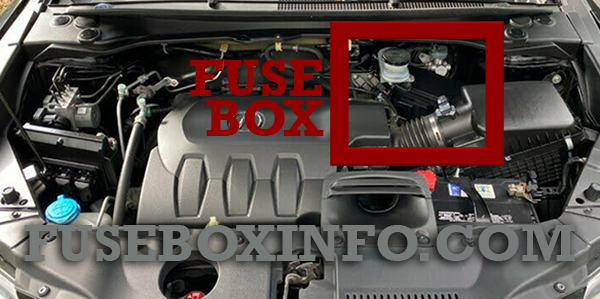

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 15A | ACG |
| 3 | 7.5A | ODS |
| 4 | 15A | Fuel Pump |
| 5 | 7.5A | Meter |
| 6 | 10A | Rear Wiper |
| 7 | 10A | VB SOL |
| 8 | 15A | Front Right Side Door Lock Motor (Unlock) |
| 9 | 15A | Rear Left Side Door Lock Motor (Unlock) |
| 10 | 7.5A | Power Lumbar |
| 11 | 20A | Moonroof |
| 12 | 15A | Accessory Power Socket (Center Console) |
| 13 | 15A | Washer Main |
| 14 | 15A | Seat Heaters |
| 15 | 10A | Driver’s Door Lock Motor (Unlock) |
| 16 | 20A | Driver’s Power Seat Sliding |
| 17 | 20A | Driver’s Power Seat Reclining |
| 18 | 20A | Passenger’s Power Seat Sliding |
| 19 | 7.5A | ACC |
| 20 | 7.5A | ACC Key Lock |
| 21 | 7.5A | Daytime Running Lights |
| 22 | 7.5A | A/C |
| 23 | 10A | Option |
| 24 | 7.5A | ABS/VSA |
| 25 | (10A) | IDAS |
| 26 |
20A*1 30A*2 |
Audio Amp |
| 27 | 15A | Accessory Power Socket (Front) |
| 28 | - | - |
| 29 | 10A | SRS |
| 30 | 10A | Driver’s Door Lock Motor (Lock) |
| 31 | 10A | Smart |
| 32 | 15A | Front Right Side Door Lock Motor (Lock) |
| 33 | 15A | Rear Left Side Door Lock Motor (Lock) |
| 34 | 7.5A | Small Lights |
| 35 | 7.5A | Illumination |
| 36 | 10A | Rear Wiper Main |
| 37 | 20A | Passenger’s Power Seat Reclining |
| 38 | 10A | Left Headlight High Beam |
| 39 | 10A | Right Headlight High Beam |
| 40 | - | - |
| 41 | 20A | Door Lock |
| 42 | 20A | Driver’s Power Window |
| 43 | 20A | Rear Right Side Power Window |
| 44 | 20A | Front Right Side Power Window |
| 45 | 20A | Rear Left Side Power Window |
| 46 | 30A | Wiper |
*1 Models without navigation system
*2 Models with navigation system
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
70A (40A) 20A 40A 30A 100A |
EPS Power Tailgate Motor ABS/VSA FSR ABS/VSA Motor E-DPS Main Fuse |
| 2 |
50A 60A 60A 50A (30A) 30A 40A 30A 30A 40A |
- Fuse Box Main 1 Fuse Box Main 2 IG Main Headlight Washer* Sub Fan Motor Rear Defogger Main Fan Motor Headlight Main Blower |
| 3 |
40A 30A (40A) 30A |
ST CUT1 IG Main1 Sub Fuse Main IG Main2 |
| 4 | (20A) | Rear Seat Heaters* |
| 5 | 7.5A | STR Diagnosis Fuse |
| 6 | (15A) | Audio (ODMD)* |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 7.5A | Oil Level |
| 12 | (20A) | Fog Lights* |
| 13 | (20A) | Power Tailgate Closer |
| 14 | 10A | Hazard |
| 15 | 15A | IGP2 |
| 16 | 15A | IG Coil |
| 17 | 15A | Stop |
| 18 | 10A | Horn |
| 19 | 10A | ACM |
| 20 | 15A | Right Headlight Low Beam |
| 21 | 7.5A | MG Clutch |
| 22 | 15A | DBW |
| 23 | 15A | Left Headlight Low Beam |
| 24 | (10A) | DRL |
| 25 | 15A | FI Main |
| 26 | (20A) | Trailer |
| 27 | 20A | Small |
| 28 | 7.5A | Interior Lights |
| 29 | 10A | Backup |
* Not available on all models
