Acura RDX 2011 Fuse Box Info

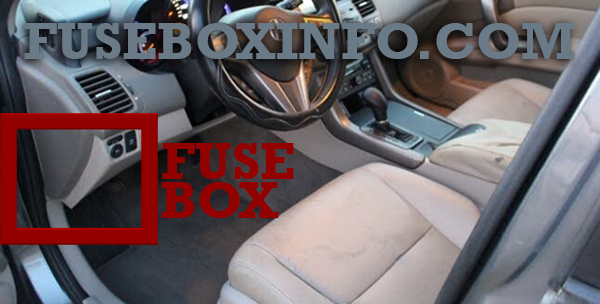

Passenger compartment fuse box location:
The interior fuse box is on the driver’s lower left side.

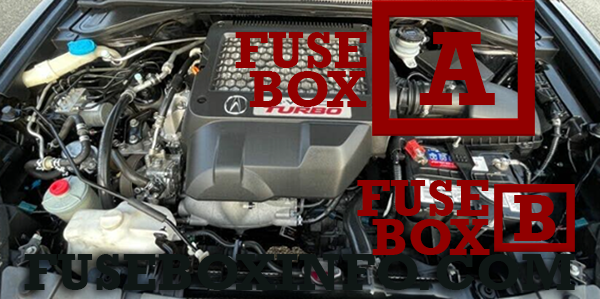

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Power Window / SH-AWD* |
| 2 | 20A | Fuel Pump |
| 3 | 15A | ACG |
| 4 | 7.5A | ABS/VSA |
| 5 | 15A | Heated Seat |
| 6 | 20A | FR Fog Lights |
| 7 | 7.5A | Driver’s Power Seat Lumber Support |
| 8 | 10A | RR Wiper |
| 9 | 7.5A | OPDS |
| 10 | 7.5A | Meter |
| 11 | 10A | SRS |
| 12 | 10A | Right Headlight High |
| 13 | 10A | Left Headlight High |
| 14 | 7.5A | Small Lights (Interior) |
| 15 | 15A | Small Lights (Exterior) |
| 16 | 15A | Right Headlight Low |
| 17 | 15A | Left Headlight Low |
| 18 | 20A | Headlight High Main |
| 19 | 20A | Small Lights Main |
| 20 | 7.5A | TPMS |
| 21 | 30A | Headlight Low Main |
| 22 | - | Not Used |
| 23 | 7.5A | Starter Diagnosis |
| 24 | 20A | Moonroof |
| 25 | 20A | Door Lock |
| 26 | 20A | Driver’s Power Window |
| 27 | - | Not Used |
| 28 | 15A | Accessory Socket (Console Compartment) |
| 29 | 15A | Accessory Socket (Front) |
| 30 | 20A | Passenger’s Power Window |
| 31 | 20A | Radio Amplifier |
| 32 | 20A | Right Rear Power Window |
| 33 | 20A | Left Rear Power Window |
| 34 | - | Not Used |
| 35 | 7.5A | Radio |
| 36 | 10A | HAC |
| 37 | 7.5A | Daytime Running Light |
| 38 | 30A | FR Wiper |
| 39 | 7.5A | STS |
* SH-AWD models only
Engine compartment fuse box A (Primary):
| Fuse/Relay N° | Rating | Functions |
| 1 |
100A 30A |
Main Fuse SH-AWD* |
| 2 |
80A 50A |
Option Main Ignition Switch Main |
| 3 |
40A 20A |
ABS/VSA Motor ABS/VSA Fail Safe |
| 4 |
50A 40A |
Headlight Main Power Window Main |
| 5 | 30A | Passenger’s Power Seat Reclining |
| 6 | 30A | Main Fan Motor |
| 7 | 30A | Sab Fan Motor |
| 8 | 30A | Rear Defogger |
| 9 | 40A | Blower |
| 10 | 15A | Hazard |
| 11 | 15A | LAF |
| 12 | 15A | Stop & Horn |
| 13 | 20A | Driver’s Power Seat Reclining |
| 14 | 20A | Driver’s Power Seat Sliding |
| 15 | 7.5A | IGPS Oil Level |
| 16 | 20A | Passenger’s Power Seat Sliding |
| 17 | 15A | Electric Vacuum Pump |
| 18 | 15A | IG Coil |
| 19 | 15A | FI Main |
| 20 | 7.5A | MG Clutch |
| 21 | 15A | DBW |
| 22 | 7.5A | Interior Light |
| 23 | 10A | Back Up |
* SH-AWD models only
Engine compartment fuse box B (Secondary):
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Electric Vacuum Pump |
| 2 | 20A | Passenger’s Power Seat Reclining |
