Alfa Romeo Tonale 2023 Fuse Box Info

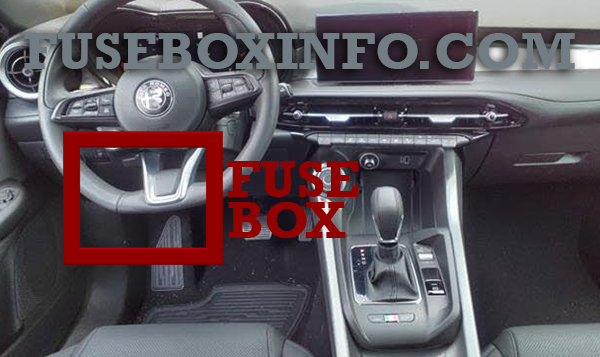

Passenger compartment fuse box location:
The fuse box is located under the driver’s side lower instrument panel.

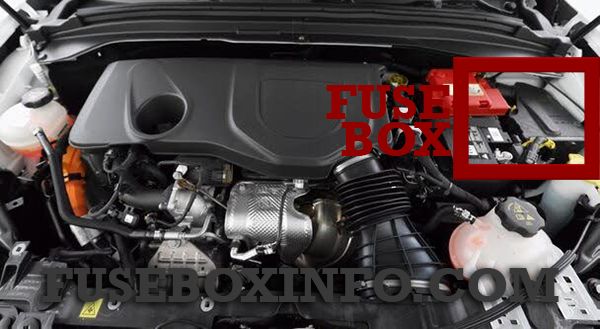

Engine compartment fuse box location:

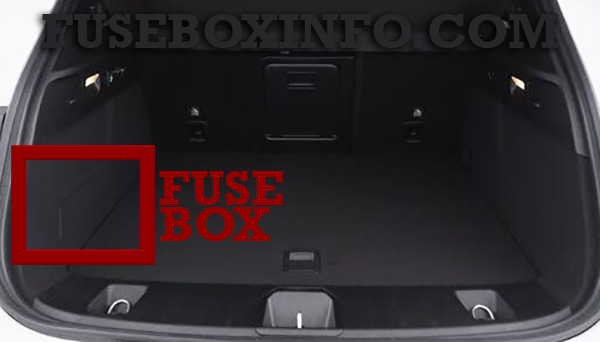

Luggage compartment fuse box location - If Equipped:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 31 | 7.5A | HVAC Relay Coil & Power Outlet / Seat Relay Coil |
| 33 | 20A | Front Passenger Window Lifter |
| 34 | 20A | Front Driver Window Lifter |
| 36 | 15A | HVAC / VTA / External Mirror /Ceiling Light / CVPM / Radio Mod / USB / AUX/ DCSD / Electric Steering Lock |
| 37 | 10A | Brake Switch / DASM / IPC |
| 38 | 20A | Door Lock & Unlock / Liftgate Release |
| 42 | 7.5A | Brake System Module, Electric Power Steering |
| 43 | 20A | Bi-Directional Washer Pump |
| 47 | 20A | Rear Left Window Lifter |
| 48 | 20A | Rear Right Window Lifter |
| 49 | 7.5A | Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch |
| 50 | 7.5A | Occupant Restraint Controller |
| 51 | 7.5A | Electronic Climate Control, Occupant Classification, Rear View Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod |
| 53 | 7.5A | HCP / Reverse Gear / ISNSR / A/C Compressor / HVAC / Defrosting / Right & Left Headlamp Leveling / LDW / Alarm Mod / Psg Airbag / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM |
| 94 | 15A | Power Outlet |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F01 | 70A | BCM1 |
| F02 | 70A | BCM2 / RDU |
| F03 | 20A | BCM3 |
| F04 | 40A | BCM Valves |
| F05 | 40A | PTC 1 |
| F06 | 20A | Front Wiper Motor |
| F07 | 20A | DTCM |
| F08 | 30A | Power Supply F24 - F87 - Fxx |
| F09 | 7.5A | ECM T09 |
| F10 | 15A | Horn |
| F11 | 5A | Engine Secondary Loads |
| F14 | 7.5A | LTR |
| F15 | 40A | BSM Pump |
| F16 | 10A | ECM / TCM / AGSM |
| F17 | 10A | Engine Primary Loads |
| F18 | - | Spare |
| F19 | 7.5A | A/C Compressor |
| F20 | 15A | Rear Cargo Outlet |
| F21 | 20A | Fuel Pump |
| F22 | 15A | ECM |
| F23 | 5A | USB / Aux Outlet |
| F24 | 10A | DTCM |
| F30 | 5A | AWD DTCM |
| F81 | 30A | Brake Booster Vacuum Pump |
| F82 | - | Spare |
| F83 | 40A | HVAC Fan |
| F84 | 7.5A | Rad Fan Enable |
| F87 | 5A | AGSM |
| F88 | 7.5A | Heated Mirrors & Washer Nozzle |
| F89 | 30A | Rear Window Defrost |
| F90 | 5A | Intelligent Battery Sensor |
| T02 | - | Not Used |
| T03 | 30A | Horn |
| T05 | 30A | A/C Compressor |
| T06 | 30A | Rad Fan Enable |
| T07 | 50A | Aux.1 / DTCM |
| T08 | 30A | HVAC Fan |
| T09 | 30A | Engine Main Relay |
| T10 | - | Not Used |
| T14 | 30A | Rear Cargo Power Outlet |
| T17 | 30A | Rear Window Defrost/Heated Mirrors |
| T19 | - | Not Used |
| T20 | 30A | Starter Relay R1 |
| T31 | 30A | Fuel Pump |
| T89 | - | Not Used |
| T90 | 30A | Brake Booster Vacuum Pump |
Luggage compartment fuse box - If Equipped:
| Fuse/Relay N° | Rating | Functions |
| Fuse Holder No. 1 | ||
| 1 | 20A | Sunroof* |
| 2 | - | - |
| 3 | 30A | Power Liftgate Module (PLGM) |
| 4 | 5A | Driver And Passenger Ventilated Seats (HMSM*) |
| 5 | 25A | Heating And Memory Drive Seat Module 1 |
| 6 | 10A | Heating And Memory Drive Seat Module 2 |
| 7 | 7.5A | Driver And Passenger Lumbar Regulator (Without HMSM) |
| 8 | 20A | Passenger Seat SW (HMSM*) |
| Fuse Holder No. 2 | ||
| 3 | 5A | Hands-Free Power Liftgate (HFRM) |
| 4 | 7.5A | Damping Control Module |
| 5 | 5A | Changeover Valve Feed (ELCM) |
| 8 | 7.5A | Damping Control Module |
| Maxi Fuse | ||
| 01 | 30A | Amplifier* |
* If Equipped
