Alfa Romeo Stelvio 2025 Fuse Box Info

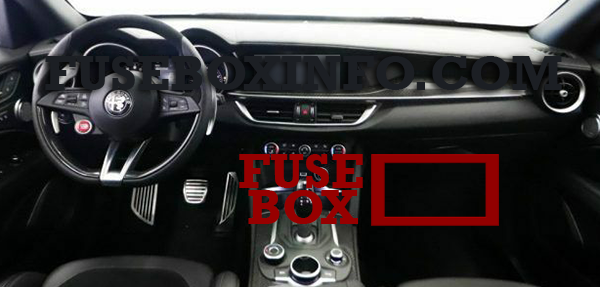

Passenger compartment fuse box location:
The fuse box is located on the right side below the foot board.

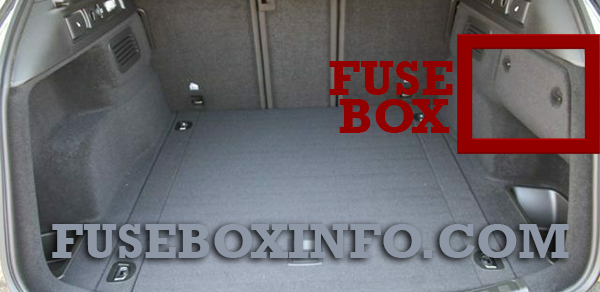

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 33 | 25A | Front power window (driver’s side) |
| 34 | 25A | Front power window (passenger side) |
| 36 | 15A | Front ceiling light unit, electrical parking brake, emergency call system, information and entertainment system, climate control system, alarm, power door mirror folding, EOBD system |
| 38 | 20A | Safe Lock device (driver side door unlock – if equipped), doors unlock, central lock |
| 43 | 20A | Windshield washer pump |
| 47 | 25A | Rear left power window |
| 48 | 25A | Rear right power window |
| 94 | 15A | Heater rear window coil |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 40A | Receiver module (TTM/TTEBM) |
| 08 | 30A | Hi-Fi system |
| 21 | 10A | I-Drive / USB Socket / AUX / USB Charger |
