MG GT 2022 Fuse Box Info

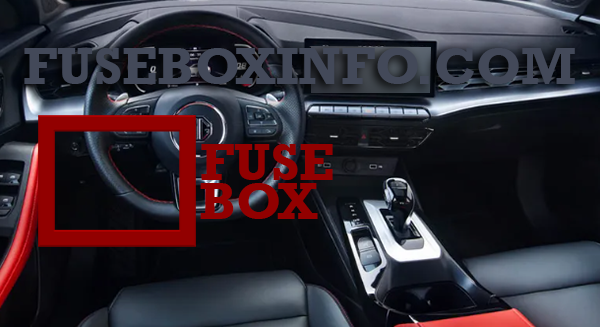

Passenger compartment fuse box location:
The fuse box is located behind the driver side lower trim panel.

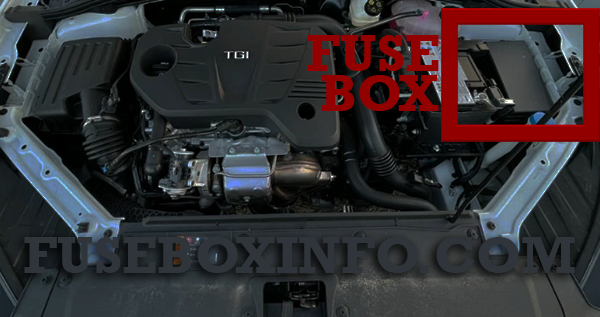

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Shift mechanism, shift control unit, TBOX, gateway, sensing diagnostic module |
| 2 | 5A | Automatic transmission control module, engine control module |
| 3 | 7.5A | Reverse lamp switch, rear PDC sensor |
| 4-5 | - | - |
| 6 | 10A | Headlamp levelling |
| 7 | 7.5A | Interior light |
| 8 | 15A | Front power socket |
| 9 | 5A | Negative ion generator |
| 10 | 7.5A | rear USB port |
| 11-12 | - | - |
| 13 | 7.5A | Exterior mirror heating |
| 14-17 | - | - |
| 18 | 10A | KL15 power |
| 19 | 20A | Entertainment system |
| 20 | 10A | Air conditioning |
| 21 | 15A | Front passenger seat heating |
| 22 | 7.5A | Diagnostic socket |
| 23 | 15A | Driver seat heating |
| 24 | 10A | Entertainment display, master light switch, tyre pressure monitoring module |
| 25 | 30A | Exterior mirror heating, rear window heating |
| 26 | 30A | Front right window lift switch, rear right window lift switch |
| 27 | - | - |
| 28 | 10A | Gateway |
| 29 | 5A | EPB switch, gear display |
| 30 | 5A | Instrument pack |
| 31 | 5A | Driver Assistance System |
| 32 | 5A | TBOX |
| 33 | 10A | Sensing diagnostic module |
| 34 | 5A | Around view module |
| 35 | 20A | Sunroof |
| 36 | 10A | Electronic steering column lock, shift control unit |
| 37 | 25A | Driver electric seat adjustment |
| 38 | 30A | Rear left window lift switch, rear front window lift motor |
| 39 | 40A | Blower |
| 40-54 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1-3 | - | - |
| 4 | 20A | Body control module |
| 5 | 30A | Body control module |
| 6 | - | - |
| 7 | 10A | Engine control module |
| 8 | 15A | Horn |
| 9 | - | - |
| 10 | 25A | Stability control module |
| 11 | 5A | Stability control module |
| 12-24 | - | - |
| 25 | 30A | Central clutch electronic oil pump |
| 26 | - | - |
| 27 | 20A | Front windscreen washer system |
| 28 | 20A | Body control module |
| 29 | 20A | Fuel pump |
| 30 | 30A | Front wiper system |
| 31-32 | - | - |
| 33 | 15A | Automatic transmission control module - CVT |
| 33 | 25A | Automatic transmission control module - DCT |
| 34-35 | - | - |
| 36 | 15A | Air conditioning compressor |
| 37 | - | - |
| 38 | 20A | Body control module |
| 39 | - | - |
| 40 | 5A | Starter |
| 41-42 | - | - |
| 43 | 10A | Carbon canister vent valve |
| 44 | 20A | Engine control module |
| 45 | 20A | Upstream oxygen sensor, downstream oxygen sensor, electrically heated breathing tube, carbon canister control valve |
| 46 | 15A | Brake switch, dump valve, variable oil pump, electronic thermostat, variable valve timing valve-exhaust, variable valve timing valve-air intake, cooling fan, compressor relay, fuel pump relay, electronic vacuum pump relay, carbon canister control valve, air conditioning pressure switch |
| 47 | 15A | Ignition coil |
| 48 | 15A | Fuel injector |
| 49-50 | - | - |
| 51 | 10A | Left dipped beam lamp |
| 52 | 10A | Right dipped beam lamp |
| A | 80A | Electric power steering module |
| B | 40A | 7 Speed double-clutch gearbox relay |
| C | 40A | Stability control module |
| D | 40A | Electronic vacuum pump |
| E | 40A | Stability control module |
| F | 30A | Starter relay |
| G | 50A | Cooling Fan |
| H | 50A | - |
| M | 150A | Alternator |
| K | 100A | Passenger compartment fuse box |
| L | 30A | - |
