MG One 2022 Fuse Box

MG One 2022 Fuse Box Info

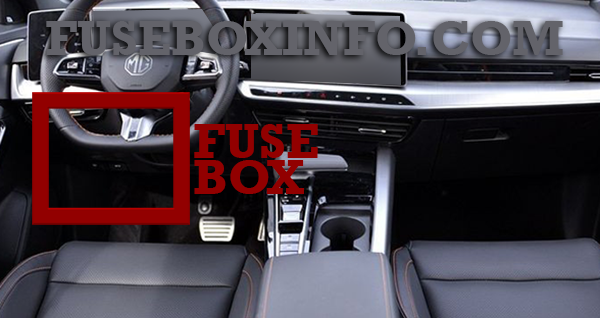

Passenger compartment fuse box location:

The fuse box is located behind the driver side knee trim panel.

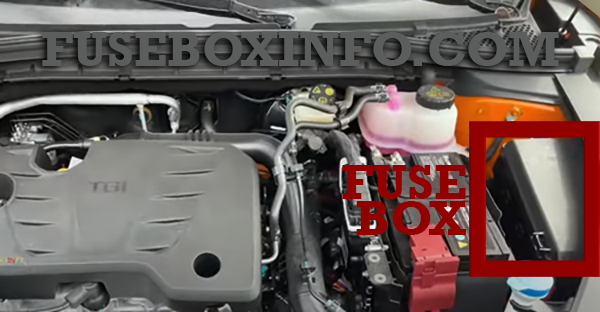

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 40A A/C, Blower
2 5A Instrument Pack, Data Link Connector (DLC)
3 10A Gateway
4 5A Front View Camera, Rain/Light/Solar Sensor, Rear Driving Assist Radar, HD AVM Control Module
5 5A EPB Switch, Driver Door Combination Switch, Instrument Panel Touch Panel Switch
6 5A Central Display, Entertainment Panel Switch, Clock Spring, Digital Radio
7 - -
8 5A PEPS Switch, Spare Coil
9-10 - -
11 25A Driver Seat Adjustment Switch
12 - -
13 5A Shifter Control Unit
14 10A Sensing and Diagnostic Module
15-19 - -
20 30A Sunroof Motor
21-22 - -
23 10A Air Conditioner
24 - -
25 5A Communication Module
26-45 - -
46 5A Mobile Phone Wireless Charger, Top/Rear Row USB Interface



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1-50 - -
51 15A Ignition Coil
52 20A Engine Control Module
53 5A Engine Control Module
54 - -
55 10A Engine Control Module
56 - -
57 - -
58 30A Body Control Module
59 30A Gear Shift Actuator Controller
60 30A Body Control Module
61 30A Electric Vacuum Pump
62 30A Body Control Module
63 - -
64 5A Instrument Pack, Rear PDC Sensor, Sensing and Diagnostic
Module, Shifter Control Unit, Gateway
65 15A Fuel Pump
66 - -
67 40A Dynamic Stability Control Module
68 20A Transmission Control Module
69 5A Brake Lamp Switch
70 15A Left Headlamp Assembly
71 30A Right Rear Window Regulator Switch, Front Passenger Window Regulator Switch
72 5A Engine Control Module, Transmission Control Module, Gear Shift Actuator Controller, Dynamic Stability Control Module
73 - -
74 - -
75 - -
76 20A Cooling Fan, Relief Valve, Variable Displacement Oil Pump, Electronic Thermostat, VVT Valve - Intake, VVT Valve - Exhaust
77 15A Canister Vent Valve, Upstream Oxygen Sensor, Downstream
Oxygen Sensor, Canister Control Valve
78 10A A/C Compressor Clutch
79 40A Dynamic Stability Control Module
80 30A Left Rear Window Regulator Switch
81 15A Right Headlamp Assembly
82 30A Body Control Module
83 5A Forward Detection Radar
84 30A Body Control Module
85 - -
86 30A Starter Relay
87 - -
88 - -
89 15A Windscreen Washer Relay, Rear Window Washer Relay
90 10A Headlamp Leveling, Interior Rearview Mirror
91 - -
92 15A Horn Relay, Rear Wiper Relay
93 10A Heated Rearview Mirror
94 30A Heated Rear Window
95 30A Body Control Module
96 - -
97 25A Front Wiper
