MG HS 2024 Fuse Box Info

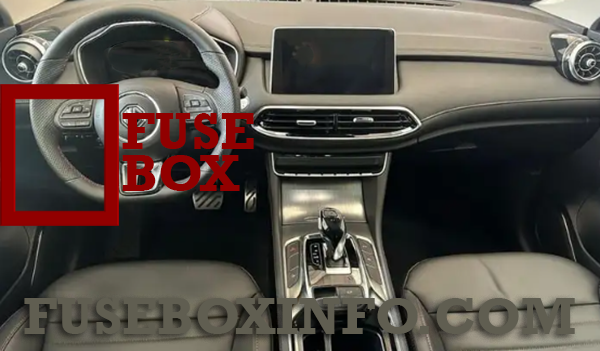

Passenger compartment fuse box location:
The fuse box is located behind the driver side lower trim panel.

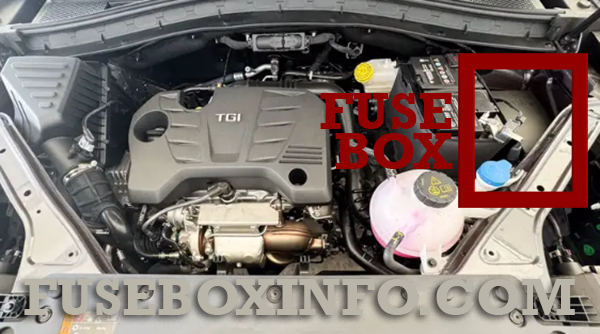

Engine compartment fuse box location:
Fuse Box Diagram | Layout

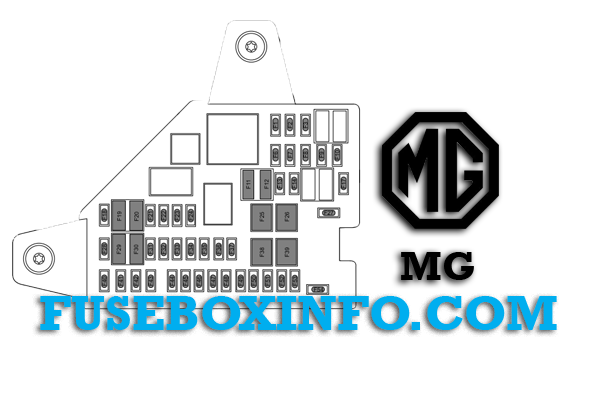

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 10A | Airbag display module, electronic gear shift control unit, SDM module, instrument pack, body control module, DC-DC converter, E-Call TBOX, rear PDC sensors, shift mechanism |
| F2 | 7.5A | Transmission control module, reverse lamp switch, engine control module |
| F3 | - | - |
| F6-F7 | - | - |
| F8 | 15A | Front power socket |
| F9 | 5A | USB Charging ports |
| F10 | - | - |
| F11 | 7.5A | Exterior rearview mirror heating |
| F12 | 25A | Heated rear window |
| F13-F14 | - | - |
| F17 | - | - |
| F18 | 30A | Left rear window lift |
| F19 | 5A | EPB switch, PRND display, shift control unit |
| F20 | 30A | Rear Right window lift |
| F21 | 10A | Front Right seat heater |
| F22 | 5A | Diagnostic socket |
| F23 | 10A | Left front seat heater |
| F24 | 10A | Gateway |
| F25 | 40A | Passenger compartment fuse F8, F9 |
| F26 | 30A | Front passenger window lift |
| F27 | - | - |
| F28 | 5A | Control unit of passive entry and passive start system, spare coil |
| F29 | 10A | Gateway |
| F30 | 5A | Driver door switch pack, rain/light sensor |
| F31-F32 | - | - |
| F33 | 5A | SDM module |
| F34 | 5A | E-Call TBOX |
| F35 | 5A | Around View Module |
| F36 | 10A | Electronic steering column lock control module |
| F37 | 20A | Driver power seat adjustment |
| F38 | 30A | Driver window lift |
| F39 | 30A | Blower |
| F40 | 15A | Entertainment system |
| F41 | 5A | Upper centre console switch |
| F42 | 10A | HVAC control module |
| F43 | 5A | Instrument pack |
| F44 | 5A | Rear drive assistance system |
| F45 | 30A | Panoramic sunroof |
| F46 | - | - |
| F47 | 30A | Sunroof sunshade |
| F48 | 20A | Passenger side power seat adjustment |
| F49 | 30A | Electric tailgate control module |
| F50 | 15A | Rear wiper motor |
| F51 | 30A | Rear windscreen/exterior rearview mirror heater relay, passenger compartment fuse F11, F12 |
| F52 | 10A | Headlamp, automatic dimming rearview mirror, headlamp leveling |
| F53 | 20A | Electronic shifter control unit |
| F54 | - | - |

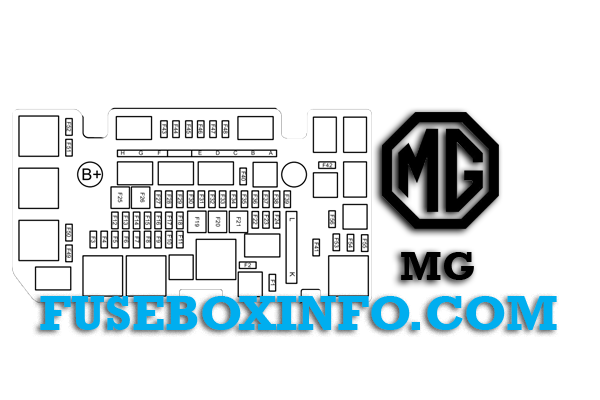

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | - | - |
| F2 | 120Ω | Onboard network terminal resistance |
| F3 | - | - |
| F4 | 25A | Body control module |
| F5 | 25A | Body control module |
| F6 | 10A | Electronic water pump |
| F7 | 10A | Engine control module |
| F8 | - | - |
| F9 | 15A | Horn |
| F10 | 5A | Gear box actuator |
| F11 | - | - |
| F12 | 25A | Body control module |
| F13 | 25A | Body control module |
| F14-F18 | - | - |
| F19 | 60A | Cooling fan |
| F20 | - | - |
| F24 | 40A | EPB module |
| F22-F24 | - | - |
| F25 | 30A | DC-DC converter, passenger compartment fuse F40, F41, F42, F43 |
| F26 | 25A | Body control module |
| F27 | 10A | Windscreen washer system |
| F28 | - | - |
| F29 | 25A | Body control module |
| F30 | 25A | Front wiper system |
| F31-F32 | - | - |
| F33 | 15A/25A | Transmission control module |
| F34 | 7.5A | Transfer box control module |
| F35 | - | - |
| F36 | 10A | A/C compressor |
| F37 | - | - |
| F38 | 15A | Fuel pump |
| F39 | 5A | Starter motor signal |
| F40-F42 | - | - |
| F43 | 5A | Fuel pump relay, A/C compressor relay, clutch position sensor, brake pedal switch, neutral position sensor, electronic water pump relay, cooling fan relay |
| F44 | 20A | Downstream oxygen sensor, variable valve timing valve - intake (1.5T), variable valve timing valve - exhaust (1.5T), upstream oxygen sensor |
| F45 | 10A | Waste gate control valve, oil control valve, dump valve, canister control valve, variable valve timing valve - intake (2.0T), variable valve timing valve - exhaust (2.0T), air flow sensor, switchable water pump, electronic thermostat |
| F46 | 15A | Engine control module |
| F47 | 15A | Ignition coil, air flow sensor |
| F48 | - | - |
| F49 | 10A | Right daytime running lamp |
| F50 | 10A | Left daytime running lamp |
| F51-F56 | - | - |
| FUSE A | 80A | Electric power assisted steering control module |
| FUSE B | 40A | 7-speed dual clutch transmission control module relay |
| FUSE C | 40A | Stability control system (pump) |
| FUSE D | 40A | Stability control system (valve) |
| FUSE E | - | - |
| FUSE F | 30A | Starter motor, engine compartment fuse F39 |
| FUSE G | 50A | Cooling fan |
| FUSE H | - | - |
| FUSE K | 100A | Passenger compartment fuse box |
| FUSE L | - | - |
