Husqvarna Norden 901 2022 Fuse Box Info
Fuse box location:

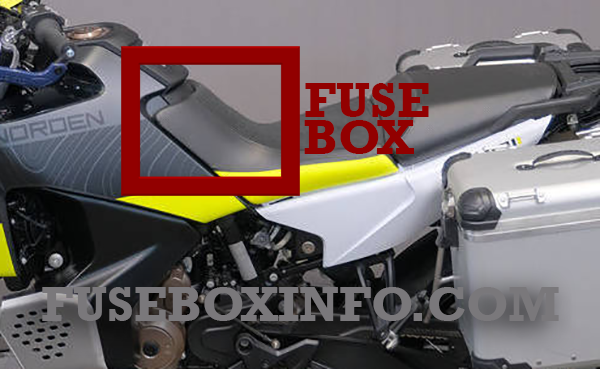

The fuse box is located under the seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Ignition, alarm system (optional) |
| 2 | 10A | Ignition, engine control unit, electronic fuel injection, fuel vapor retention system, lambda sensor, immobilizer |
| 3 | 10A | Fuel pump |
| 4 | 15A | Radiator fan |
| 5 | 10A | Horn, combination instrument, brake light |
| 6 | 10A | High beam, low beam, position light, tail light, license plate lamp |
| 7 | 10A | ACC1 |
| 8 | 15A | ACC2, USB charging socket, supplementary headlight, HCU (optional) |
| 9 | 10A | ABS control unit, diagnostics connector, 6D sensor, TPMS (function optional) |
| SPARE | 10A | Spare fuse |
| SPARE | 15A | Spare fuse |
The main fuse is located under the protection cap next to the fuse box.
Two fuses for the ABS are located under the protection cap next to the fuse box. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
