Saturn Vue 2002 Fuse Box Info

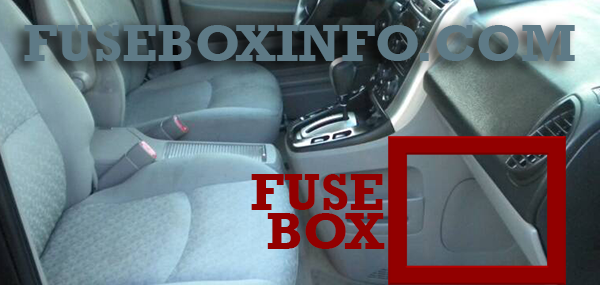

Passenger compartment fuse box location:
The instrument panel fuse box is located by the passenger’s left leg.

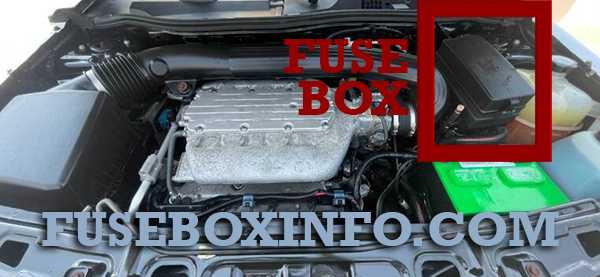

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| RADIO | Radio, Data Link Connector |
| BCM/CLSTR | Body Control Module, Instrument Cluster |
| INT LTS | Body Control Module, OnStar® |
| PARK | Park Lamps, Taillamps, Side Marker Lamps, License Lamps |
| HZRD | Hazard Lamps |
| DR LCK | Door Lock Relay |
| LOCK/MIRROR | Power Door Locks, Power Mirror, Entry Control |
| TURN | Turn Lamps |
| BCM | Body Control Module, Front Wipers, Windows, Sunroof |
| RADIO IGN | Radio, Power Mirror, Premium Radio Amplifier |
| HVAC | HVAC Control Head |
| IGN 1 | Instrument Cluster, BTSI Solenoid, Traction Switch, Fog Lamp Switch |
| BCM (IGN) | Body Control Module |
| AIRBAG | SDM Module |
| EPS | Electronic Power Steering |
| CRUISE | Cruise Control Switch, Brake Switch |
| HTD SEATS | Heated Seats |
| Relays | |
| HVAC BLOWER |
HVAC Control Head |
| DR LCK | All Door Lock Switch |
| PASS DR UNLOCK |
Passenger Door Unlock Switch |
| DRV DR UNLCK |
Driver Door Unlock Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| IGNITION | Ignition switch |
| BATT FEED | I/P Fuse Box |
| COOL 1 | Cooling Fan Module |
| COOL FAN HIGH |
Cooling Fan High Relay |
| COOL FAN LOW |
Cooling Fan Low Relay |
| PWR WDW | Power Window Relay and Sunroof |
| HVAC BLOWER |
HVAC Blower Motor |
| ABS | ABS Module |
| BRAKE | Stop Lamps |
| A/C CLUTCH | A/C Clutch Relay, Back Up Lamps (3.5L V6 (L66)) |
| SUNROOF | Sunroof Module |
| RR WIPER | Rear Wiper Relay |
| FRT WIPER | Front Wiper Relay |
| IGN/INJ | Engine Ignition Module, Fuel Injectors (2.2L L4 (L61)) |
| ABS | ABS Ignition |
| ABS | ABS Battery |
| BACKUP | Low Coolant Switch, Backup Lamps (2.2L L4 (L61)), Vehicle Speed Sensor (Manual), Transmission Range Switch (2.2L L4 (L61)) |
| PWRTRAIN | Engine Control Module (ECM), Transmission Control Module (TCM), Transmission |
| EMISS | Canister Purge Solenoid, Canister Vent Solenoid, Rear Heated O2, Front Heated O2 |
| ECM/TCM | Battery Voltage to ECM, TCM, PCM (3.5L V6 (L66)) |
| ECM/CAM (3.5L V6 (L66)) |
Camshaft Sensor, Main Relay Voltage To PCM, Ignition Coils 1-6 |
| ETC (2.2L Four Cylinder (L61)) |
Engine Control Module (ECM), Electronic Throttle Control |
| FUEL PUMP | Fuel Pump Relay |
| CIGAR/AUX2 | Cigar Lighter |
| AUX 1 OUTLET | Front Auxiliary Power Outlet |
| FOG LP | Fog Lamp Relay |
| REAR DEFOG | Rear Defog Relay |
| HORN | Horn Relay |
| LH HDLP | Left Headlamp |
| RH HDLP | Right Headlamp |
| INJECTORS (3.5L V6 (L66)) |
Fuel Injection |
| PREM AUD | Premium Radio Amplifier |
| HTD SEATS | Heated Seats |
| Relays | |
| COOL FAN HIGH |
Cooling Fan Motor High |
| COOL FAN LOW |
Cooling Fan Motor Low |
| A/C CLUTCH | A/C Clutch |
| PWR WDW | Power Window Switch, Sunroof Module |
| FRT WIPER | Front Wiper System |
| RR WIPER | Rear Wiper System |
| WIPER SYSTEM |
Wiper System |
| ENG MAIN | ECM/CAM, EMISS, INJ, ETC |
| FUEL PUMP | Fuel Pump System |
| DRL | Daytime Running Lamps |
| REAR DEFOG | Rear Defog System |
| HORN | Horn |
| FOG LP | Fog Lamps |
