Saturn Aura 2008 Fuse Box

Saturn Aura 2008 Fuse Box Info

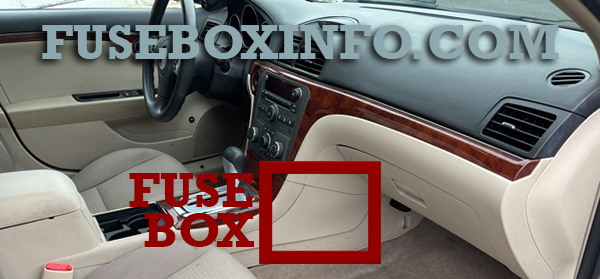

Passenger compartment fuse box location:

The instrument panel fuse box is located on the passenger’s side of the vehicle, on the lower portion of the instrument panel near the floor.

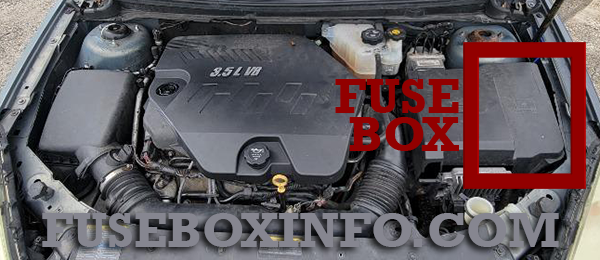

Engine compartment fuse box location:

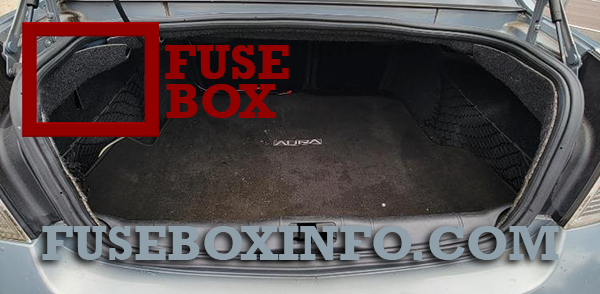

Luggage compartment fuse box location:

The rear compartment fuse box is located in the trunk of the vehicle, on the driver side of the rear cargo area.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay Name Functions
POWER
MIRRORS
Power Mirrors
EPS Electronic Power Steering
RUN/CRANK Cruise Control Switch, Passenger Airbag Status Indicator
HVAC
BLOWER HIGH
Heating Ventilation Air Conditioning Blower - High Speed Relay
CLUSTER/
THEFT
Instrument Panel Cluster, Theft Deterrent System
ONSTAR OnStar®
NOT
INSTALLED
Not Used
AIRBAG (IGN) Airbag (Ignition)
HVAC CTRL
(BATT)
Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDAL Adjustable Pedals
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Sensor
STRG WHL
ILLUM
Steering Wheel Illumination
NOT
INSTALLED
Not Used
RADIO Audio System
INTERIOR
LIGHTS
Interior Lamps
NOT
INSTALLED
Not Used
POWER
WINDOWS
Power Windows
HVAC CTRL
(IGN)
Heating Ventilation Air Conditioning Control (Ignition)
HVAC
BLOWER
Heating Ventilation Air Conditioning Blower Switch
DOOR LOCK Door Locks
ROOF/HEAT
SEAT
Sunroof, Power Windows
NOT
INSTALLED
Not Used
NOT
INSTALLED
Not Used
AIRBAG
(BATT)
Airbag (Battery)
SPARE FUSE
HOLDER
Spare Fuse Holder
SPARE FUSE
HOLDER
Spare Fuse Holder
SPARE FUSE
HOLDER
Spare Fuse Holder
SPARE FUSE
HOLDER
Spare Fuse Holder
FUSE PULLER Fuse Puller



Engine compartment fuse box:

Fuse/Relay N° Functions
Fuses
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Engine Control Module IGN 1 (LZ4)
4 Transmission Control Module Ignition 1
5 Mass Airflow Sensor (LY7)
6 Emission
7 Left Headlamp Low Beam
8 Horn
9 Right Headlamp Low Beam
10 Front Fog Lamps
11 Left Headlamp High Beam
12 Right Headlamp High Beam
13 Engine Control Module BATT (LY7 & LE5)
14 Windshield Wiper
15 Anti-lock Brake System (IGN 1)
16 Engine Control Module IGN 1 (LY7 & LE5)
17 Cooling Fan 1
18 Cooling Fan 2
19 Run Relay, Heating, Ventilation, Air Conditioning Blower
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42 Transmission Control Module Battery
43 Ignition Module (LZ4 & LE5); Injectors, Ignition Coils Odd (LY7)
44 Injectors (LZ4 & LE5); Injectors, Ignition Coils Even (LY7)
45 Post Cat 02 Sensor Heaters (LY7 & LZ4)
46 Daytime Running Lamps
47 Center High-Mounted Stoplamp
50 Driver Power Window
51 Engine Control Module BATT (LZ4)
52 DC/AC Inverter
53 Antilock Brake System BATT
54 Regulated Voltage Control
Relays
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamp
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps
49 Stoplamps
Diodes
27 Wiper



Luggage compartment fuse box:

Fuse/Relay N° Functions
Fuses
1 Passenger Seat Controls
2 Driver Seat Controls
3 Not Used
4 Not Used
5 Emission 2, Canister Vent Solenoid
6 Park Lamps, Instrument Panel Dimming
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Amplifier
14 Heated Seat Controls
15 Not Used
16 Remote Keyless Entry (RKE) System, XM™ Satellite Radio, UGDO
17 Back-up Lamps
18 Not Used
19 Not Used
20 Auxiliary Power Outlets
21 Not Used
22 Trunk Release
23 Rear Defog
24 Heated Mirrors
25 Fuel Pump
Relays
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp
