Mercury Cougar 1997 Fuse Box Info

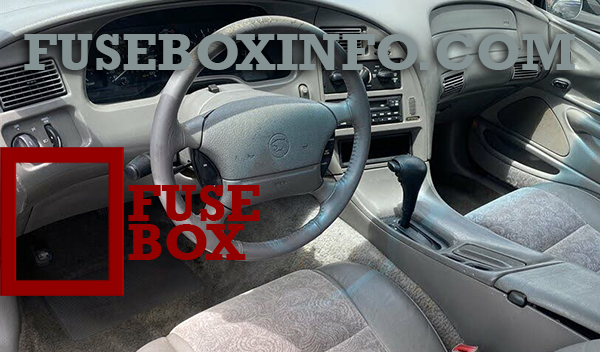

Passenger compartment fuse box location:
The instrument panel fuse box is located under the left side of the instrument panel.

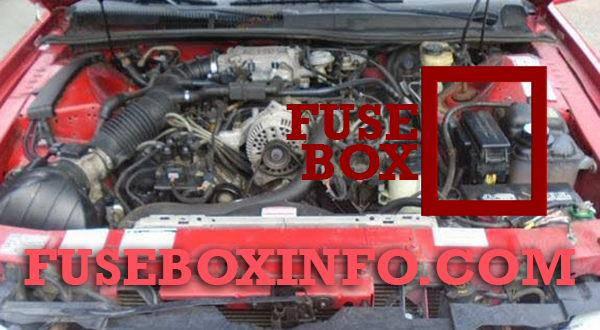

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Rating | Functions |
| CIGAR | 20A | Cigar Lighter |
| STOP/HAZARD | 15A | Turn/Stop/Hazard Lamps |
| CLUSTER | 5A | Instrument Cluster |
| ACC | 10A | Warning Chime, Radio |
| Wipers | 30A | Internal Wiper, Washer |
| OBD-II | 10A | Data Link Connector (DLC) |
| Panel LPS | 10A | Instrument Illumination |
| INT LPS | 10A | Instrument Illumination, Courtesy Lamps |
| POWER WDO | 20A CB | Power Windows |
| TURN SIG | 10A | Backup lamps, Turn/Stop/Hazard Lamps |
| ANTI-LOCK | 10A | Anti-lock Power Relay, Anti-lock Brake Control Module |
| PARK LPS | 10A | Exterior Lamps |
| AIR BAG | 10A | Air Bags |
| A/C | 10A | A/C |
| SEAT/LOCK | 20A CB | Power Door Lock, Remote Keyless Entry, Power Seats, Anti-Theft |
| RUN | 5A | Shift Lock, DRL, EVO, ABS, Air Bag, Washer Fluid Level Sensor |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | DRL module |
| 2 | 5A | SATC, Power Antenna, Digital Clock |
| 3 | 20A | Ignition, Constant Control Relay Module (CCRM) |
| 4 | - | Not Used |
| 5 | 60A | Constant Control Relay Module (CCRM: EDF & HEDF) |
| 6 | 40A | ABS motor |
| 7 | 60A | Main Light Switch, Courtesy Lamps, RKE Module, Integrated Control Module (ICM), Power Mirror, Autolamp, Air Bag Diagnostic Monitor |
| 8 | 20A | ABS module, ABS Relay |
| 9 | 60A | Ignition switch |
| 10 | 15A | Horn Relay |
| 11 | 15A | Radio |
| 12 | 40A | Radio, Mobile Telephone, Multi-Function Switch, BOO Switch, DLC, Cigar Lighter, Trunk Lid Release, RKE, Door Lock, Power Seats, Anti-Theft |
| 13 | 20A | Constant Control Relay Module (CCRM: Fuel Pump Relay) |
| 14 | 40A | Rear Window Defrost |
| 15 | 20A | Powertrain Control Module (PCM) Memory, Constant Control Relay Module (CCRM: PCM Relay) |
| 16 | - | Not Used |
| 17 | 60A | Ignition Switch, Blower motor |
| 18 | - | Not Used |
| HORN RELAY | - | Horn Relay |
| ANTI-LOCK POWER RELAY | Anti-Lock Power Relay |
