Mercury Mariner Hybrid 2007 Fuse Box Info

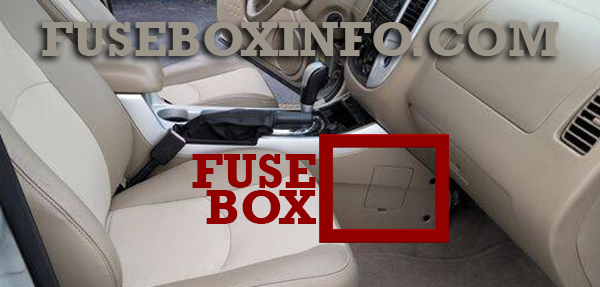

Passenger compartment fuse box location:
The fuse box is located on the right-hand side of the center console, by the instrument panel.

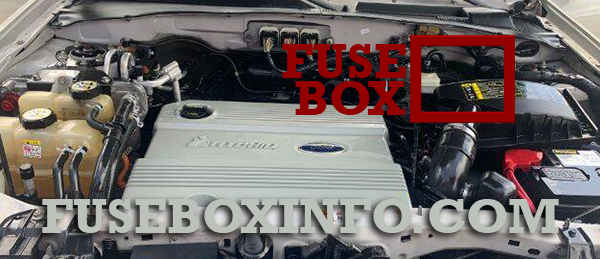

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 15A | Front and rear park lamps |
| 4 | 10A | Ignition switch |
| 5 | 2A | Powertrain Control Module (PCM relay), PATS module |
| 6 | 15A | Stop lamps |
| 7 | 10A | Instrument cluster, Power mirror switch, Radio |
| 8 | - | Not used |
| 9 | 30A | Power door locks |
| 10 | 15A | Heated mirrors, Rear defroster switch indicator |
| 11 | 15A | Moon roof |
| 12 | 5A | Radio |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | 30A | Power windows |
| 16 | 15A | Subwoofer |
| 17 | 15A | Low beams |
| 18 | 10A | 4x4 |
| 19 | - | Not used |
| 20 | 15A | Horn |
| 21 | 10A | Rear wiper motor, Rear wiper washer |
| 22 | 10A | Instrument cluster |
| 23 | - | Not used |
| 24 | 20A | Cigar lighter |
| 25 | 20A | Front wiper motor, Front wiper washer |
| 26 | 5A | Climate control system mode switch |
| 27 | 5A | Traction (high voltage) Battery Control Module (TBCM), Injectors |
| 28 | 10A | Instrument cluster |
| 29 | 10A | Back-up lamps, Reverse park aid |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | 15A | Air bag module |
| 34 | 5A | Brake System Control Module (BSCM), Power Steering Control Module (PSCM) |
| 35 | 5A | 4x4, Heated seats |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Brake module |
| 2 | 10A | Climate control |
| 3 | 5A | Transaxle Control Module (TCM) |
| 4 | 7.5A | Traction (high voltage) Battery Control Module (TBCM), Powertrain Control Module (PCM) |
| 5 | 5A | Interlock |
| 6 | 15A | PCM power |
| 7 | 15A | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 8 | 10A | TCM VPWR |
| 9 | 20A | Fuel pump |
| 10 | 30A | Bussed power feed to PDB fuses 1, 2, 3, 4 |
| 11 | 20A | Foglamps |
| 12 | 25A | Exterior lighting |
| 13 | 25A | B+ lighting |
| 14 | - | Not used |
| 15 | 20A | Ignition main |
| 16 | 15A | A/C clutch |
| 17 | 20A | Power point |
| 18 | 30A | Injectors, COP (Coil-on-plug) |
| 19 | 40A | Climate control blower |
| 20 | 40A | Cooling fan #1 |
| 21 | 40A | PCM power |
| 22 | 40A | SJB power (Passenger compartment fuse box) power #1 |
| 23 | 40A | SJB (Passenger compartment fuse box) power #2 |
| 24 | 50A | BSCM #1 |
| 25 | 50A | Power Steering Control Module (PSCM) #1 |
| 26 | 50A | TBCM (high voltage battery) cooling fans and jump start |
| 27 | 40A | Cooling fan #2 |
| 28 | 40A | Rear defroster, Heated mirrors |
| 29 | 20A | Heated seats |
| 30 | 40A | SJB (Passenger compartment fuse box) power #3 |
| 31 | 50A | BSCM #2 |
| 32 | 50A | PSCM #2 |
| 001 | - | Power sustain for PCM, TBCM and Transaxle Control Module (TCM) |
| 002 | - | PCM power |
| 003 | - | Injector |
| 004 | - | Auxiliary coolant pump |
| 005 | - | Motor/Electronic coolant pump |
| 006 | - | Foglamps |
| 007 | - | A/C clutch |
| Diode 01 | - | A/C clutch |
| Diode 02 | - | Not used |
Auxiliary relay box (The relay box is located on the radiator support (left of the hood latch)):
| Fuse/Relay N° | Rating | Functions |
| Relay 1 | - | Driver side cooling fan |
| Relay 2 | - | Passenger side cooling fan (low-speed) |
| Relay 3 | - | Passenger side cooling fan (high-speed) |
