Mercury Milan 2007 Fuse Box Info
Passenger compartment fuse box location:

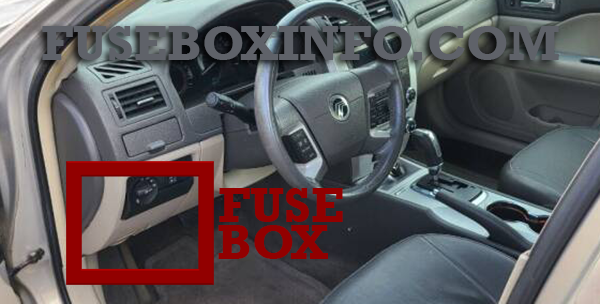

The fuse box is located below and to the left of the steering wheel by the brake pedal.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Backup lamps, Electrochromatic mirror |
| 2 | 20A | Horns |
| 3 | 15A | Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Power windows |
| 4 | 15A | Parklamps, Side markers, License plate lamps |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | 30A | Rear window defroster |
| 9 | 10A | Heated mirrors |
| 10 | 30A | Starter coil, PCM |
| 11 | 15A | High beams |
| 12 | 7.5A | Delay accessories: Radio head units, Moonroof, Lock switch illumination, Electrochromatic mirrors |
| 13 | 7.5A | Cluster, KAM-PCM, Analog clock, Climate control head units, Canister vent solenoid |
| 14 | 15A | Washer pump |
| 15 | 20A | Cigar lighter |
| 16 | 15A | Door lock actuator, Decklid lock solenoid |
| 17 | 20A | Subwoofer |
| 18 | 20A | Radio head units, OBDII connector |
| 19 | - | Not used |
| 20 | 7.5A | Power mirrors |
| 21 | 7.5A | Stop lamps |
| 22 | 7.5A | Audio |
| 23 | 7.5A | Wiper relay coil, Cluster logic |
| 24 | 7.5A | OCS (Passenger’s seat), PAD indicator |
| 25 | 7.5A | RCM |
| 26 | 7.5A | PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch |
| 27 | 7.5A | Cluster, Climate control head units |
| 28 | 10A | ABS/Traction Control, Heated seats, Compass |
| C/B | 30A | Power windows, Delayed accessory (SJB fuse12) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B) |
| 2 | 40A | Powertrain power |
| 3 | - | Not used |
| 4 | 40A | Blower motor |
| 5 | - | Not used |
| 6 | 40A | Rear window defroster, Heated mirrors |
| 7 | 40A | PETA Pump (PZEV engine only) |
| 8 | - | Not used |
| 9 | 20A | Wipers |
| 10 | 20A | ABS Valves |
| 11 | 20A | Heated seats |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | 15A | Ignition switch |
| 15 | - | Not used |
| 16 | 15A | Transmission |
| 17 | 20A | Console power point |
| 18 | 10A | Alternator sense |
| 19 | 40A | Logic feed to SJB (solid state devices) |
| 20 | - | Not used |
| 21 | - | Not used |
| 22 | - | Not used |
| 23 | 60A | SJB power feed (fuses 1, 2, 4, 10, 11) |
| 24 | 15A | Fog lamps |
| 25 | 10A | A/C Compressor clutch |
| 26 | - | Not used |
| 27 | - | Not used |
| 28 | - | Not used |
| 29 | 60A | Engine cooling fan |
| 30 | 30A | Fuel pump relay feed |
| 31 | - | Not used |
| 32 | 30A | Driver power seat |
| 33 | 20A | Moonroof |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | 40A | ABS Pump |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | 15A | PCM non-emission related |
| 43 | 15A | Coil on plug |
| 44 | 15A | PCM emission related |
| 45 | 5A | PETA Pump feedback (PZEV engine only) |
| 46 | 15A | Injectors |
| 47 | - | Fog lamps |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | - | Wiper Park |
| 51 | - | A/C Clutch |
| 52 | - | Not used |
| 53 | - | Wiper RUN |
| 54 | - | Transmission (I4 engine only) |
| 55 | - | Fuel pump |
| 56 | - | Blower motor |
| 57 | - | PCM |
| 58 | - | PETA Pump (PZEV engine only) |
| 59 | - | Not used |
| 60 | - | Fuel pump |
| 61 | - | Not used |
| 62 | - | Spare |
