Volvo V50 2007 Fuse Box Info

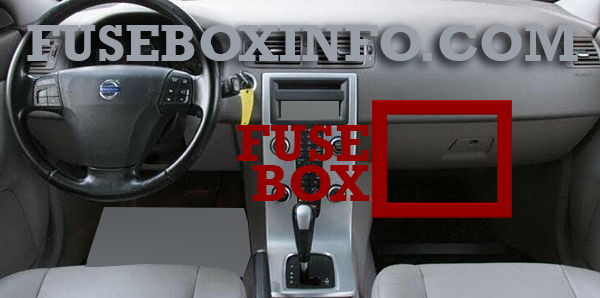

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located under the glove box.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 37 | - | Not in use |
| 38 | - | Not in use |
| 39 | - | Not in use |
| 40 | - | Not in use |
| 41 | - | Not in use |
| 42 | - | Not in use |
| 43 | 15A | Audio system, Volvo Navigation system (option) |
| 44 | 10A | Supplemental Restrain System (SRS) |
| 45 | 15A | 12-volt socket in rear seat |
| 46 | 5A | Lighting - glove compartment, instrument panel, and footwells |
| 47 | 5A | Interior lighting |
| 48 | 15A | Tailgate wiper/washers |
| 49 | 10A | Supplemental Restrain System (SRS), Occupant Weight Sensor (OWS) |
| 50 | - | Not in use |
| 51 | 10A | Park assist (option), AWD, Bi-Xenon headlights (option) |
| 52 | 5A | Transmission control module (TCM), ABS |
| 53 | 10A | Power steering |
| 54 | 10A | Engine control module, turbo (ECM) |
| 55 | - | Not in use |
| 56 | 10A | Alarm siren control module |
| 57 | 15A | On-board computers, brake light switch |
| 58 | 7.5A | Right high beam, auxiliary lights relay |
| 59 | 7.5A | Left high beam |
| 60 | 15A | Heated driver's seat (option) |
| 61 | 15A | Heated passenger's seat (option) |
| 62 | 20A | Moonroof (option) |
| 63 | 20A | Power window and door lock - rear passenger's side door |
| 64 | 5A | Audio system, Volvo Navigation system (option) |
| 65 | 5A | Audio system |
| 66 | 10A | Audio system control module (ICM), climate system |
| 67 | - | Not in use |
| 68 | 5A | Cruise control |
| 69 | 5A | Climate system, rain sensor (option) |
| 70 | - | Not in use |
| 71 | - | Not in use |
| 72 | - | Not in use |
| 73 | 5A | Moonroof, front ceiling lighting, auto-dim mirror, (option) seat belt reminder |
| 74 | 15A | Fuel pump relay |
| 75 | - | Not in use |
| 76 | - | Not in use |
| 77 | 15A | 12-volt socket in cargo area, auxiliary equipment control module (AEM) |
| 78 | - | Not in use |
| 79 | 5A | Back-up lights |
| 80 | - | Not in use |
| 81 | 20A | Power window and door lock - rear driver's side door |
| 82 | 25A | Power window and door lock - front passenger's side door |
| 83 | 25A | Power window and door lock - front driver's side door |
| 84 | 25A | Power passenger's seat |
| 85 | 25A | Power driver's seat |
| 86 | 5A | Interior lighting relay, cargo compartment light, power seats |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Coolant fan (radiator) |
| 2 | 80A | Power steering |
| 3 | 60A | Feed to passenger compartment fuse box |
| 4 | 60A | Feed to passenger compartment fuse box |
| 5 | 80A | Element, climate unit |
| 6 | - | Not in use |
| 7 | 30A | ABS pump |
| 8 | 20A | ABS valves |
| 9 | 30A | Engine functions |
| 10 | 40A | Climate system blower |
| 11 | 20A | Headlight washers |
| 12 | 30A | Feed to heated rear window |
| 13 | 30A | Starter motor relay |
| 14 | 40A | Trailer connector |
| 15 | - | Not in use |
| 16 | 30A | Feed to audio system |
| 17 | 30A | Windshield wipers |
| 18 | 40A | Feed to passenger compartment fuse box |
| 19 | - | Not in use |
| 20 | 15A | Horn |
| 21 | - | Not in use |
| 22 | - | Not in use |
| 23 | 10A | Engine control module (ECM)/transmission control module (TCM) |
| 24 | - | Not in use |
| 25 | - | Not in use |
| 26 | 15A | Ignition switch |
| 27 | 10A | A/C compressor, water shut-off valve |
| 28 | - | Not in use |
| 29 | 15A | Front fog lights (option) |
| 30 | 3A | Engine control module (ECM) |
| 31 | 10A | Generator voltage regulator |
| 32 | 10A | Fuel injectors |
| 33 | 20A | Heated oxygen sensor, vacuum pump |
| 34 | 10A | Ignition coils, engine control module, climate unit pressure sensor |
| 35 | 15A | Engine sensor valves, A/C relay, relay coil water shut-off valve |
| 36 | 10A | Engine control module (ECM), throttle sensor |
