Volvo S80 1999 Fuse Box Info
Passenger compartment fuse box location:
The fuse box in the passenger compartment is located at the far left side of the instrument panel.
Engine compartment fuse box location:

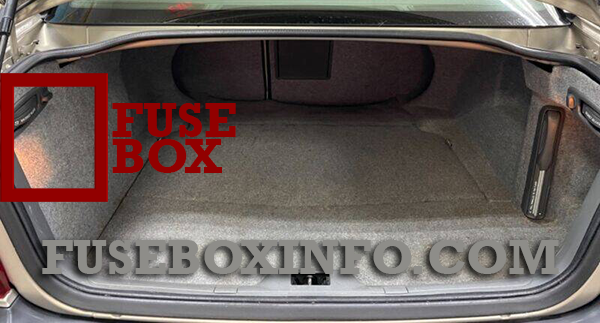

Luggage compartment fuse box location:
The fuse box in the trunk is located on the left side under the covering material.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Left low beam |
| 2 | 10A | Right low beam |
| 3 | 15A | Front fog lights |
| 4 | 30A | Power driver's seat |
| 5 | 30A | Power passenger's seat |
| 6 | - | - |
| 7 | 5A | SRS, central electrical module, X-relay, seat belt locks |
| 8 | 25A | Heated front seats (option) |
| 9 | 5A | ABS |
| 10 | 15A | Left high beam |
| 11 | 15A | Right high beam |
| 12 | 15A | Headlight wipers |
| 13 | 20A | Auxiliary sockets (front/rear) |
| 14 | 5A | Power passenger's seat |
| 15 | 5A | Audio system |
| 16 | 20A | Audio system |
| 17 | 30A | Radio amplifier |
| 18 | 10A | Telephone (option) VNS (option) |
| 19 | - | - |
| 20 | - | - |
| 21 | 20A | Direction indicators |
| 22 | 5A | Steering wheel lever modules |
| 23 | 5A | Headlight switch module, module for electrical connections, climate control system, onboard diagnostic connector |
| 24 | 10A | Relay for extended X-feed: climate control system, power driver's seat, text window, shiftlock geartronic |
| 25 | 10A | Ignition switch |
| 26 | 30A | Control module - climate control blower |
| 27 | 15A | Central locking system, power windows, sideview mirrors, warning lights |
| 28 | 10A | Power sun roof, courtesy lights, vanity mirror lights |
| 29 | - | - |
| 30 | 10A | Left front/rear parking lights |
| 31 | 10A | Right front/rear parking lights, license plate lights |
| 32 | 10A | Central electrical module, interior courtesy lights, progressive power steering |
| 33 | 15A | Fuel pump |
| 34 | 15A | Power sun roof |
| 35 | 25A | Central locking system, power windows |
| 36 | 25A | Central locking system, power windows |
| 37 | 30A | Power windows - rear doors, child safety locks |
| 38 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Main fuses | ||
| 1 | 60A | Air pump (certain models) |
| 2 | 60A | Engine compartment/passenger compartment |
| 3 | 60A | Engine compartment/passenger compartment |
| 4 | 60A | Engine compartment/passenger compartment |
| 5 | - | - |
| 6 | - | - |
| 7 | 60A | Electric cooling fan |
| 8 | - | - |
| Ordinary fuses | ||
| 1 | 20A | High beams |
| 2 | 15A | Low beams |
| 3 | 5A | Brake light connector |
| 4 | 25A | Windshield wipers |
| 5 | 15A | Windshield washers, headlight washers (certain models) |
| 6 | - | - |
| 7 | - | - |
| 8 | 15A | Horn |
| 9 | - | - |
| 10 | - | - |
| 11 | 30A | ABS |
| 12 | 30A | ABS |
| 13 | 25A | Starter motor |
| 14 | 5A | Engine control systems |
| 15 | - | - |
| 16 | 20A | A/C compressor, throttle sensor, automatic transmission |
| 17 | 20A | Air pump, electric cooling fan, A/C compressor, ignition coil |
| 18 | 15A | Mass air flow sensor, engine control module, fuel injectors |
| 19 | 20A | Emission controls |
| 20 | 15A | Crankcase ventilation heater, turbo control valve |
| 21 | 10A | Throttle control module |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Main fuses | ||
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | 40A | Heated rear window |
| 6 | 40A | Rear main fuse |
| 7 | 40A | Rear main fuse |
| Ordinary fuses | ||
| 1 | 10A | Rear electrical module, trunk lights |
| 2 | 10A | Rear fog light |
| 3 | 15A | Brake lights |
| 4 | 10A | Backup lights |
| 5 | - | - |
| 6 | 10A | Trunk release |
| 7 | 10A | Folding rear outboard head restraints |
| 8 | 15A | Central locking system - rear doors/fuel tank cover |
| 9 | 20A | Connector for trailer |
| 10 | 10A | CD changer |
