Volvo XC90 2011 Fuse Box

Volvo XC90 2011 Fuse Box Info

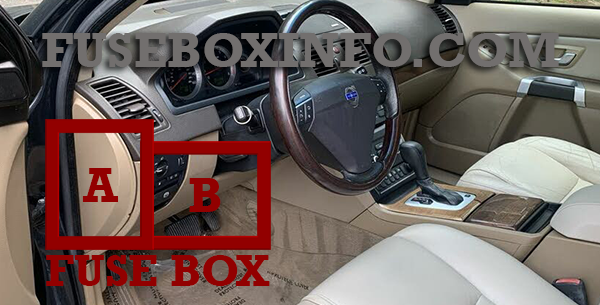

Passenger compartment fuse box location:

The fuse box A is located inside the access panel on the edge of the dashboard, on the driver's side. The fuse box B is located behind the plastic cover below the steering wheel.

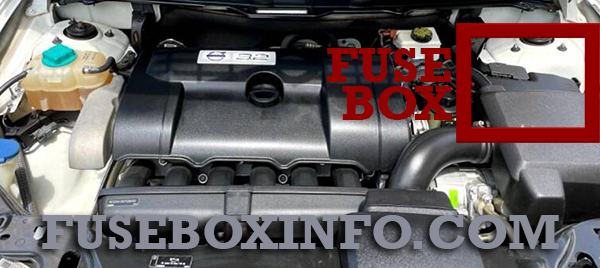

Engine compartment fuse box location:

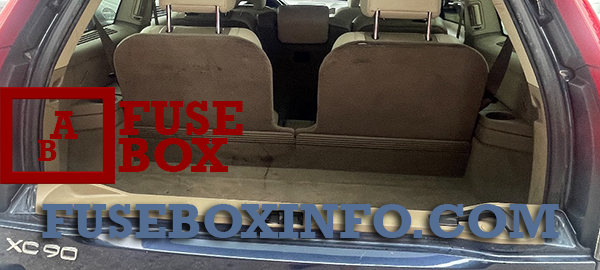

Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box (Fuse box A):

Fuse/Relay N° Rating Functions
1 30A Blower – climate system
2 30A Audio amplifier*
3 25A Power driver's seat*
4 25A Power passenger's seat*
5 25A Driver's door – central locking, power windows, door mirror
6 25A Front passenger's door – central locking, power windows, door mirror
7 - -
8 15A Radio, CD player, Rear Seat Entertainment (RSE)*
9 10A Volvo Navigation System*, Sirius satellite radio*
10 5A On-board diagnostics, headlight switch, steering wheel angle sensor, steering wheel module
11 7.5A Ignition switch, SRS, engine control module (V8, 6-cyl.) immobilizer, transmission control module (V8, 6-cyl.)
12 10A Ceiling lighting, upper electronic control module
13 15A Moonroof*
14 5A Bluetooth hands-free system
15-38 - -

* Option/accessory



Passenger compartment fuse box (Fuse box B):

Fuse/Relay N° Rating Functions
1 15A Heated passenger's seat
2 15A Heated driver's seat
3 15A Horn
4 - -
5 10A Audio system
6 - -
7 - -
8 5A Alarm siren*
9 5A Break light switch feed
10 10A Instrument panel, climate system, power driver's seat, Occupant Weight Sensor
11 15A 12-volt sockets – front and rear seats, refrigerator* (XC90 Executive)
12 - -
13 - -
14 - -
15 5A ABS, DSTC
16 10A Power steering, Active Bending Lights*
17 7.5A Driver's side front foglight*
18 7.5A Passenger's side front foglight*
19 - -
20 5A Coolant pump (V8)
21 10A Transmission control module1
22 10A Driver's side high beam1
23 10A Passenger's side high beam
24 - -
25 - -
26 - -
27 - -
28 5A Power passenger's seat*
29 - -
30 5A Blind Spot Information System*
31 - -
32 - -
33 20A Vacuum pump
34 15A Pump – windshield and tailgate washers
35 - -
36 - -

* Option/accessory


Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A ABS
2 30A ABS
3 35A Headlight washers
4 - -
5 35A Auxiliary lights*
6 25A Starter motor relay
7 15A Windshield wipers
8 15A Fuel pump
9 15A Transmission control module (V8 and 6-cyl.)
10 20A Ignition coils, engine control module
11 10A Throttle pedal sensor, A/C compressor, e-box fan
12 15A Engine control module, fuel injectors, mass airflow sensor
13 10A Throttle control (V8), Intake manifold actuator (6-cyl.)
14 20A Heated oxygen sensor
15 15A Crankcase ventilation, solenoid valves, A/C connection, leakage diagnostics, engine control module (V8, 6-cyl.), mass airflow sensor (V8)
16 20A Driver's side low beam headlight
17 20A Passenger's side low beam headlight
18 - -
19 5A Engine control module feed, engine relay
20 15A Parking light
21 20A Vacuum pump

* Option/accessory



Luggage compartment fuse box (Fuse box A):

Fuse/Relay N° Rating Functions
1 10A Backup lights
2 20A Parking lights, foglights, cargo compartment lighting, license plate lights, brake light diodes
3 15A Accessories
4 - -
5 10A Rear Electronic module
6 7.5A Rear Seat Entertainment (accessory)
7 15A Rear Seat Entertainment (accessory)
8 15A 12-volt socket in cargo compartment
9 20A Rear passenger's side door – power window, power window cutout function
10 20A Rear driver's side door – power window, power window cutout function
11 - -
12 - -
13 - -
14 15A Subwoofer*, rear air conditioning system*
15 - -
16 - -
17 5A Accessory audio
18 - -
19 15A Rear window wiper
20 20A Trailer wiring (15-feed)*
21 - -
22 - -
23 7.5A Park assist
24 - -
25 - -
26 5A Park assist*
27 30A Main fuse: trailer wiring, park assist, All Wheel Drive
28 15A Central locking system
29 25A Driver's side trailer lighting: parking lights, turn signal*
30 25A Passenger's side trailer lighting: brake light, fog light, turn signal*
31 40A Main fuse: fuses 37 and 38
32 - -
33 - -
34 - -
35 - -
36 - -
37 20A Heated rear window
38 20A Heated rear window

* Option/accessory



Luggage compartment fuse box (Fuse box B)*:

Fuse/Relay N° Rating Functions
1 5A Relays for rear seat heating and front seat massage
2 15A Rear seat heating, driver's side
3 15A Rear seat heating, passenger's side
4 10A Front seat ventilation/ massage
5 - -
6 - -

* Option/accessory
