Smart Fortwo Electric Drive 2015 Fuse Box Info

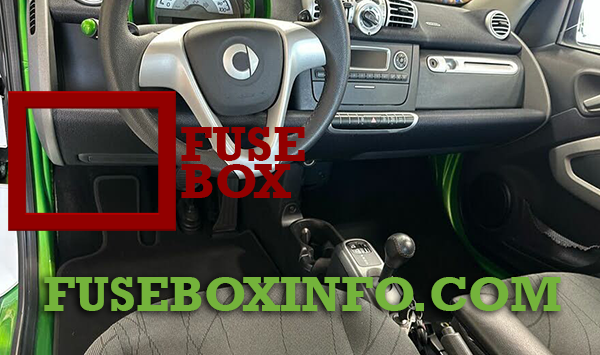

Passenger compartment fuse box location:
The fuse box is located on the driver’s side below the instrument panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 25A | Front windscreen wipers |
| 3 | 20A | Power windows |
| 4 | 25A | Blower motor for vehicle interior |
| 5 | 10A | Front foglamps, LED daytime driving lights |
| 6 | 7.5A | Right-hand parking lamp, right-hand tail lamp, licence plate lighting |
| 7 | 7.5A | Left-hand parking lamp, left-hand tail lamp |
| 8 | 25A | Engine components, auxiliary climate control |
| 9 | 7.5A | Engine components, brake system |
| 10 | 15A | Engine components |
| 11 | 25A | esp®control unit |
| 12 | 10A | Left-hand control lever functions, switch strip functions, diagnostics connection, mirror heating, anti-theft alarm system, rain/light sensor1, additional instruments, central locking, instrument cluster |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Electric drive safety circuit |
| 16 | - | - |
| 17 | 15A | Rear window wiper2 |
| 18 | 10A | esp®control unit, power steering control unit, restraint systems |
| 19 | 7.5A | Engine control unit, transmission control unit, start/stop function control unit, drive components, sound generator |
| 20 | 10A | Heating/air-conditioning control panel, exterior mirror adjustment, washer fluid pump, radio systems, seat heating, reversing lamps, right-hand control lever functions, soft-top switch3 |
| 21 | 15A | 12 V socket, cigarette lighter |
| 22 | 7.5A | Left-hand dipped beam |
| 23 | 7.5A | Right-hand dipped beam |
| 24 | 15A | Brake lamp, rear foglamp |
| 25 | 7.5A | Right-hand main beam |
| 26 | 7.5A | Left-hand main beam |
| 27 | 7.5A | Engine components |
| 28 | 40A | Rear window heating |
| 29 | 30A | Soft top3 |
| 30 | 40A | Transmission control unit, fan motor for front radiator |
| 31 | 20A | Horn, central locking |
| 32 | - | - |
| 33 | 50A | Ignition lock |
| 34 | 40A | esp®control unit |
| 35 | 30A | Power steering control unit |
| R1 | 7.5A | Exterior mirror heating |
| R2 | - | - |
| R3 | - | - |
| R4 | - | - |
| R5 |
10A 10A |
Engine components Power supply for a card reader on the front windscreen4 |
| R6 | 15A | Radio systems, subwoofer (sound system), soft top3 |
| R7 | 5A | Interior lighting |
| R8 | 20A | Amplifier (surround sound system) |
| R9 | 25A | Seat heating control unit |
1 Only on left-hand-drive vehicles
2 fortwo coupé only
3 fortwo cabriolet only
4 car2go only
