Smart Fortwo 2014 Fuse Box Info

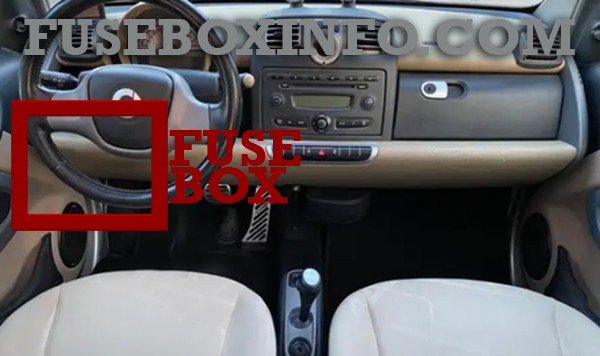

Passenger compartment fuse box location:
The fuse box is located on the driver’s side below the instrument panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Engine |
| 2 | 25A | Windshield wipers |
| 3 | 20A | Power window, left and right |
| 4 | 25A | Passenger compartment blower (HVAC) |
| 5 | 10A | Front fog lamps, LED daytime running lamps |
| 6 | 7.5A | Right parking lamp, right tail lamp, license plate lamps |
| 7 | 7.5A | Left parking lamp, left tail lamp |
| 8 | 25A | Engine, tank ventilation |
| 9 | 7.5A | Engine |
| 10 | 15A | Engine, transmission, shifter |
| 11 | 25A | ESP® control unit |
| 12 | 10A | Exterior lamp switch, turn signal lamp switch, cockpit switch module, on-board diagnostics socket, transmission control unit, exterior rear view mirror heating, anti-theft warning system, rain-light sensor, auxiliary instruments, central locking system, instrument cluster, Tire Pressure Monitoring System (TPMS), brake and turn signal lamps (left and right) |
| 13 | - | - |
| 14 | 15A | Air conditioning compressor |
| 15 | 15A | Audio, subwoofer, sound system, soft top (cabriolet only), interior light |
| 16 | 15A | Fuel pump with fuel level sensor |
| 17 | 15A | Rear window wiper (coupé only) |
| 18 | 10A | ESP® control unit, EPS control unit, restraint system |
| 19 | 7.5A | Engine control unit, transmission control unit, Tire Pressure Monitoring System (TPMS), on-board diagnostics socket |
| 20 | 10A | Air conditioning system, exterior rear view mirror adjustment, washer pump, audio, seat heating, wiper switch, soft top switch (cabriolet only) |
| 21 | 15A | Auxiliary power outlet |
| 22 | 7.5A | Left low‑beam headlamp |
| 23 | 7.5A | Right low‑beam headlamp |
| 24 | 15A | Brake lamps |
| 25 | 7.5A | Right high‑beam headlamp |
| 26 | 7.5A | Left high‑beam headlamp |
| 27 | 7.5A | Engine |
| 28 | 40A | Rear window defroster |
| 29 | 30A | Soft top (cabriolet only) |
| 30 | 40A | Transmission control unit, radiator cooling fan |
| 31 | 20A | Horn, central locking system |
| 32 | - | - |
| 33 | 50A | Starter switch (ignition) |
| 34 | 40A | ESP® control unit |
| 35 | 30A | EPS control unit |
| R1 | 7.5A | Exterior rear view mirror heating |
| R2 | 7.5A | Brake lamps |
| R3 | - | - |
| R4 | - | - |
| R5 | 10A | Windshield unit car2go |
| R6 | - | - |
| R7 | 5A | Interior lighting |
| R8 | 20A | Surround sound system |
| R9 | 25A | Seat heating control unit |
