Škoda Superb 2022 Fuse Box Info

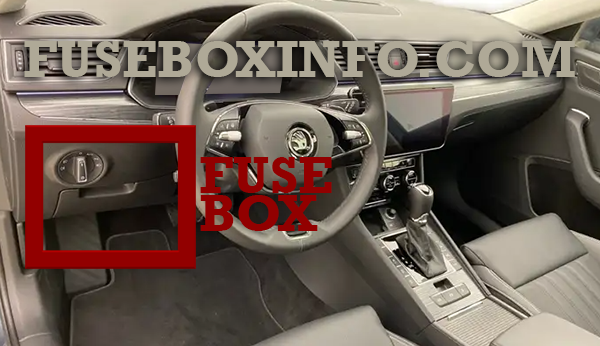

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

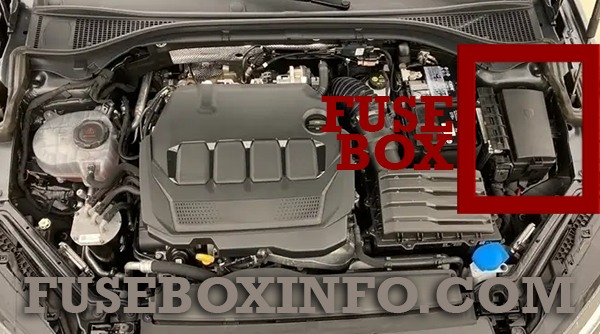

Engine compartment fuse box location:
Fuse Box Diagram | Layout

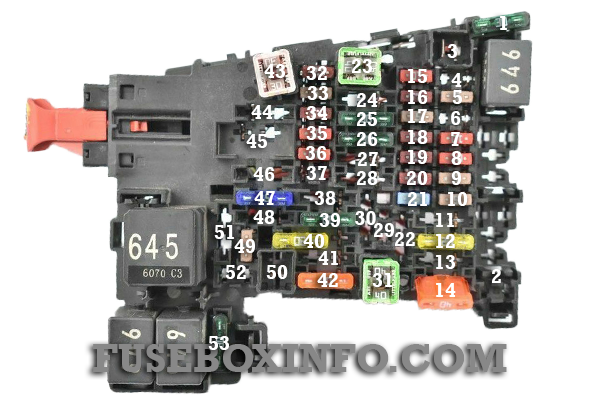

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SCR (AdBlue®) |
| 2 | Heated steering wheel |
| 3 | Not used |
| 4 | Alarm system |
| 5 | Databus |
| 6 | Automatic gearbox |
| 7 | Air conditioning, Heating, Auxiliary heating receiver, Front and rear window heating, clock, tyre control display |
| 8 | Light switch, rain sensor, diagnostic connection, parking brake, ambient lighting, sensor of the alarm system, headlight |
| 9 | USB connections |
| 10 | Infotainment screen |
| 11 | Light - left side |
| 12 | Infotainment |
| 13 | Left side belt tensioner |
| 14 | Air conditioning, heating |
| 15 | Electric steering lock |
| 16 | Phonebox |
| 17 | Instrument cluster, emergency call |
| 18 | Rear view camera, environment view (Area View) |
| 19 | KESSY (keyless locking and starting system) |
| 20 | SCR (AdBlue®) |
| 21 | All-wheel drive |
| 22 | Tow hitch |
| 23 | Panorama sliding/tilting roof |
| 24 | Light - right side |
| 25 | Central locking- front and rear door left, power window - left, exterior mirrors left - heating, fold-in function, setting the mirror surface |
| 26 | Heating of the front seats |
| 27 | Interior lighting |
| 28 | Tow hitch |
| 29 | Control lever under the steering wheel |
| 30 | Not used |
| 31 | Opening the boot lid |
| 32 | Parking aid (Park Assist) |
| 33 | Airbags, switch for hazard warning lights |
| 34 | ESC, ASR, tyre pressure monitor, air conditioning, reversing light switch, mirror with automatic dimming, START-STOP, heated rear seats, parking brake, light switch |
| 35 | Diagnostic connection, camera, radar sensor, "blind spot" detection |
| 36 | USB charging function – for the rear seats |
| 37 | USB-charging - interior mirror |
| 38 | Tow hitch |
| 39 | Central locking - front and rear door right, power windows - right, right external mirror - heating, folding function, mirror surface adjustment |
| 40 | 12-volt power outlets |
| 41 | Right side belt tensioner |
| 42 | Boot lid, headlight washers, windscreen washer system |
| 43 | Music amplifier |
| 44 | Tow hitch |
| 45 | Electrically adjustable seats |
| 46 | 230 volt socket |
| 47 | Rear window wiper |
| 48 | Not used |
| 49 | Engine starting, clutch pedal switch |
| 50 | Not used |
| 51 | Seat heating - rear |
| 52 | Shock absorber adjustment (adaptive suspension) |
| 53 | Heated rear window |
| A | Front seat ventilation - left-hand drive |
| B | Front seat ventilation - right-hand drive |

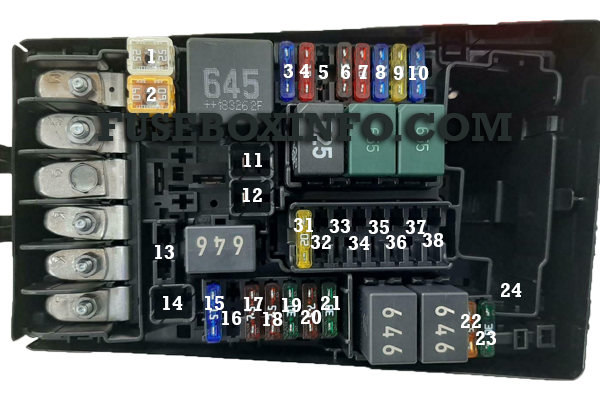

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC assist system, parking brake |
| 2 | ESC assist system |
| 3 | Engine control system |
| 4 | Radiator fan, fuel pressure regulator, electric auxiliary heater, glow plug system, ignition, air flow sensor, engine components |
| 5 | Engine components |
| 6 | Not used |
| 7 | Radiator shutters, coolant pump, crankcase ventilation, engine components |
| 8 | Lambda sensor, NOx sensor |
| 9 | Coolant pump, ignition, engine components |
| 10 | Fuel pump |
| 11 | Electric auxiliary heater |
| 12 | Electric auxiliary heater |
| 13 | Oil pump for automatic gearbox |
| 14 | Heated windscreen |
| 15 | Horn |
| 16 | Ignition, switchable air conditioning compressor |
| 17 | ESC assist system, engine control unit, main relay coil |
| 18 | Data bus, 12 volt battery data module |
| 19 | Windscreen wiper |
| 20 | Brake servo |
| 21 | Automatic gearbox |
| 22 | Engine control system |
| 23 | Starter |
| 24 | Electric auxiliary heater |
| 31 | Not used |
| 32 | Not used |
| 33 | Not used |
| 34 | Not used |
| 35 | Not used |
| 36 | Left headlight |
| 37 | Auxiliary heating |
| 38 | Right headlight |
