Škoda Kodiaq 2023 Fuse Box Info

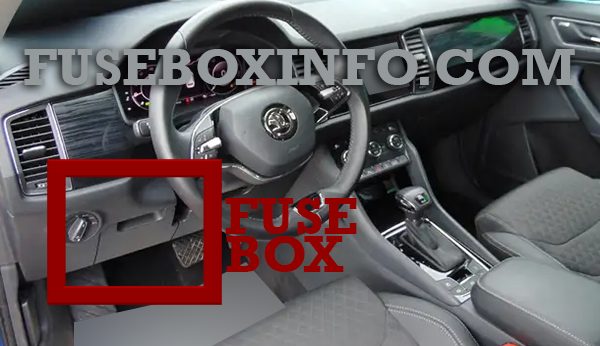

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the storage compartment on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

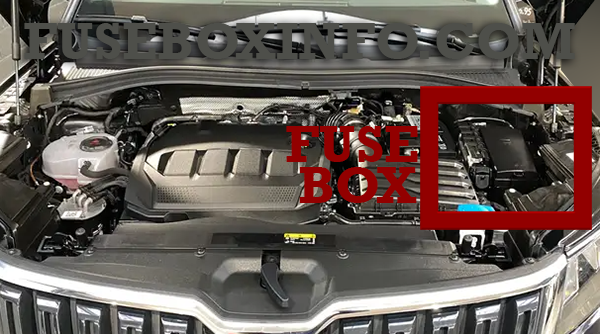

Engine compartment fuse box location:
Fuse Box Diagram | Layout

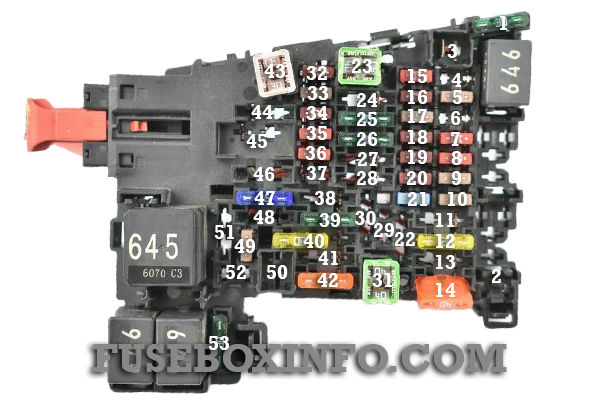

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SCR (AdBlue®) |
| 2 | Steering wheel heating |
| 3 | Not used |
| 4 | Alarm |
| 5 | Data bus |
| 6 | Automatic gearbox |
| 7 | Air conditioning, independent heating receiver, windscreen and rear window heating, tyre pressure monitoring |
| 8 | Light switch, rain sensor, parking brake, background lighting, alarm sensor, headlights |
| 9 | Control lever under the steering wheel |
| 10 | Infotainment screen |
| 11 | Lights - left side |
| 12 | The Infotainment system |
| 13 | Seat belt tensioners – left side |
| 14 | Air conditioning fan, heater |
| 15 | Electric steering wheel lock |
| 16 | USB sockets, diagnostic outlet, Phone box |
| 17 | Instrument cluster, emergency call |
| 18 | Rear view camera, Area View |
| 19 | KESSY (keyless locking and starting system) |
| 20 | SCR (AdBlue®), brake system vacuum pump |
| 21 | 4x4 drive |
| 22 | Towing bracket |
| 23 | Panoramic tilting/sliding sunroof |
| 24 | Lights - right side |
| 25 | Central locking (left front and rear doors), window controls (left side), left wing mirror (heating, tilting, glass position adjustment) |
| 26 | Front seat heating |
| 27 | Interior background illumination and lighting |
| 28 | Towing bracket |
| 29 | USB charging – at the rear and at the inside rear–view mirror |
| 30 | Shock absorber settings |
| 31 | Opening the boot lid |
| 32 | Parking aid, park assist, blind spot detection |
| 33 | Airbags |
| 34 | Air conditioning, reversing light switch, auto-dimming interior rear-view mirror, seat heating, light switch, parking brake, switch bar |
| 35 | Diagnostic connector, camera, radar sensor |
| 36 | Not used |
| 37 | Not used |
| 38 | Towing bracket |
| 39 | Central locking (right front and rear doors), window controls (right side), outside right rear view mirror (heating, tilting, glass position adjustment) |
| 40 | 12-volt power outlets |
| 41 | Seat belt tensioners – right side |
| 42 | Locking the boot lid, headlight washers, windscreen and rear window washers |
| 43 | Music amplifier |
| 44 | Towing bracket |
| 45 | Driver's seat electric control |
| 46 | 230-volt power socket |
| 47 | Rear wiper |
| 48 | Sports sound generator |
| 49 | Engine starting, clutch switch |
| 50 | Not used |
| 51 | Rear seat heating |
| 52 | Front seat ventilation, footwell lighting |
| 53 | Rear window heating |

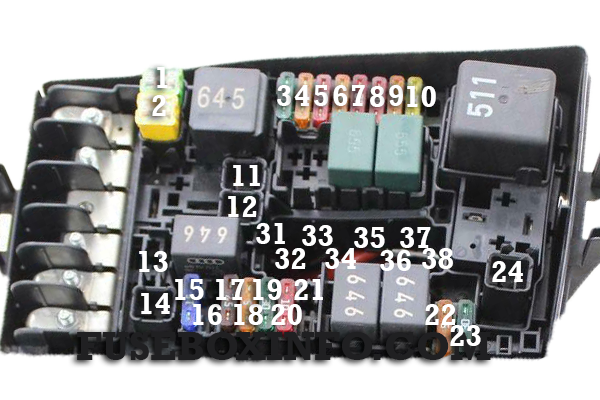

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC assist system, parking brake |
| 2 | ESC assist system |
| 3 | Engine control system |
| 4 | Radiator fan, fuel pressure regulator, electric auxiliary heater, glow plug system, air flow sensor, brake system, oil level and oil temperature sensor, ignition, engine components |
| 5 | Engine components |
| 6 | Brake sensor |
| 7 | Coolant pump, exhaust flap, heat for crankcase ventilation, cooling louvres, engine components |
| 8 | Lambda probe, NOx sensor and particle sensor |
| 9 | Coolant pump, ignition, engine components |
| 10 | Fuel pump |
| 11 | Additional electrical heating, heated windscreen |
| 12 | Electric auxiliary heater |
| 13 | Oil pump for automatic gearbox |
| 14 | Not used |
| 15 | Horn |
| 16 | Ignition, switchable air conditioning compressor, air conditioning system |
| 17 | ESC assist system, engine control unit, main relay coil |
| 18 | Data bus, 12 volt battery data module |
| 19 | Windscreen wiper |
| 20 | Not used |
| 21 | Automatic gearbox |
| 22 | Engine control system |
| 23 | Starter |
| 24 | Electric auxiliary heater |
| 31 | Not used |
| 32 | Not used |
| 33 | Not used |
| 34 | Not used |
| 35 | Not used |
| 36 | Left headlight with adaptive functions |
| 37 | Auxiliary heating |
| 38 | Right headlight with adaptive functions |
