Seat Leon 2010 Fuse Box

Seat Leon 2010 Fuse Box Info



Passenger compartment fuse box location:

The fuse box is located under the instrument panel behind the cover on the driver’s side.

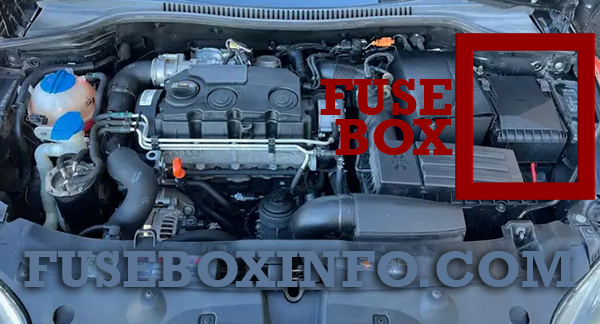

Engine compartment fuse box location:







Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 10A Diagnosis Switchboard/ Instrument lighting/ Headlight control switchboard/ Flow meter/ Heated wipers/ Engine management/ AFS Headlamps
2 10A Engine control unit/ ABS-ESP switchboard/ Automatic gearbox/ Instrument panel/ Trailer switchboard/ Light switch / Brake sensor/ Power steering/ Right and left headlights
3 5A Airbag
4 5A Heating/ Reverse switch/ ASR-ESP switch/ Electrochrome mirror/ Park Pilot/ Oil level sensor
5 5A Right xenon headlamp
6 5A Left xenon headlamp
7 - Vacant
8 5A Trailer hook pre-installation assistant
9 - Vacant
10 - Vacant
11 - Vacant
12 10A Central locking
13 10A Diagnosis/ Light switch/ Rain sensor/ Heated rear window
14 10A Automatic gearbox / Heating/ Automatic gearbox lever
15 - Vacant
16 - Vacant
17 5A Alarm
18 5A Kombi / levers with START STOP
19 20A Fog light aid
20 15A Navigation/radio with START STOP
21 10A Engine management
22 40A Fan switch
23 30A Electric windows (front)
24 20A Body Control Unit
25 25A Heated rear window
26 30A Rear electric windows
27 15A Engine (fuel control unit/pump relay)
28 25A Convenience controls
29 - Vacant
30 - Vacant
31 20A Vacuum pump
32 - Vacant
33 30A Sunroof
34 25A Comfort switchboard/Central locking system
35 - Vacant
36 20A Headlight washer system
37 30A Heated seats
38 10A Engine management
39 10A Telephone with START STOP
40 40A Fan switch
41 15A Rear wiper motor / Switchboard wiring
42 15A 12 V socket/ Cigarette lighter
43 15A Trailer bracket preinstallation
44 20A Trailer bracket preinstallation
45 15A Trailer bracket preinstallation
46 - Vacant
47 10A Engine management
48 10A Engine management
49 - Vacant



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Windscreen wipers
2 30A DQ200 gearbox
3 5A Cable control unit
4 10A ABS
5 15A AQ gearbox
6 5A Instrument panel/Steering column
7 40A Ignition key
8 15A Radio
9 5A Telephone/TomTom Navigator
10

5A

10A

Engine management

Engine management

11 - Vacant
12 5A Electronic control unit
13

25A

30A

Petrol injection module supply

Diesel injection module supply

14 20A Coil
15

5A

10A

Engine management

Pump relay

16 30A Right lighting
17 15A Horn
18 - Vacant
19 30A Clean
20

10A

20A

Water pump

Pressure sensor pump for 1.8 engine

21 15A Lambda probe
22 5A Brake pedal, speed sensor
23

5A

10A

15A

Engine management

Engine management

Engine management

24 10A AKF, gearbox valve
25 40A ABS pump
26 40A Left lighting
27

40A

50A

Engine management

Engine management

28 - Vacant
29

50A

30A

Electric windows (front and back)

Electric windows (front)

30 40A Ignition key
