Peugeot 407 2004 Fuse Box Diagram
Fuse box location:
The fuse box are placed in the lower part of the fascia.
Engine compartment fusebox:
The fusebox is placed in the engine compartment near the battery.

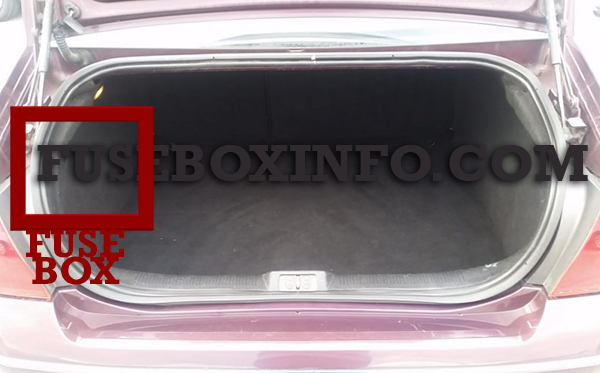

Boot fuses:
The boot fuses are located in the trunk of the car.
Fuse Box Diagram | Layout
Dashboard fuses:
| Fuse N° | Rating | Functions |
| F1 | 15 A | Boot fusebox, diagnostics socket, low current steering lock. |
| F4 | 20 A | Steering wheel controls, audio equipment, alarm, navigation-telematics, multifunction display, automatic gearbox, electric seat memory unit. |
| F5 | 15 A | Alarm siren, tyre under-inflation detection unit. |
| F6 | 10 A | STOP switch, automatic gearbox electronics, clutch switch, electrochromatic mirror, courtesy mirror, map reading lights, diagnostic connector, steering wheel angle sensor, ESP dual function sensor, panoramic roof concealing shutter (407 SW). |
| F7 | 15 A | Alarm (accessory). |
| F9 | 30 A | Rear one-touch electric windows |
| F10 | 20 A | Front 12 V accessories socket, lighter, glove box switch. |
| F11 | 15 A | Electric child lock, rear doors deadlocking. |
| F12 | 30 A | Front one-touch electric windows, sunroof. |
| F14 | 10 A | Engine fusebox, boot fusebox, trailer fusebox (accessory), wipers relay. |
| F15 | 15 A | Instrument panel, air conditioning control panel, rain and brightness sensors, electric seats, air bags control unit. |
| F16 | 30 A | Central locking/deadlocking. |
| F20 | 10 A | Not used. |
| F21 | 15 A | Not used. |
| F22 | 20 A | Not used |
| FS1 | - | PARC shunt. |
| Fuse N° | Rating | Functions |
| G36 | 30 A | Audio Hi-Fi assembly. |
| G37 | 15 A | Six-speed automatic gearbox supply. |
| G38 | 30 A | Right and left heated seats. |
| G39 | 30 A | Right electric seat. |
| G40 | 30 A | Left electric seat |
Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| F1 | 20 A | Engine management control unit. |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front and rear wash-wipe. |
| F4 | 20 A | Headlamp wash. |
| F5 | 15 A | Fuel pump. |
| F6 | 10 A | Automatic gearbox control unit. |
| F7 | 10 A | Power steering control unit, engine coolant level sensor. |
| F8 | 20 A | Starter coil. |
| F9 | 10 A | Xenon bulb electronic supply, halogen headlamps height adjusters. |
| F10 | 30 A | Engine management actuators (ignition coil, solenoid valves, oxygen sensors). |
| F11 | 40 A | Air conditioning blower or not used. |
| F12 | 30 A | Windscreen wipers. |
| F13 | 40 A | Built-in system interface supply (ignition positive). |
| F14 | 30 A | Air pump. |
Boot fuses:
| Fuse N° | Rating | Functions |
| F1 | 15 A | Rear wiper. |
| F2 | 15 A | Fuel filler flap locking. |
| F3 | 15 A | Rear 12 V accessories socket. |
| F4 | 15 A | Particle emission filter. |
| F5 | 40 A | Heated rear screen. |
