Peugeot 607 2009 Fuse Box Info

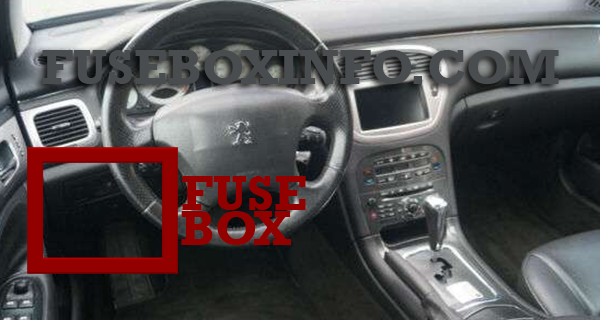

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

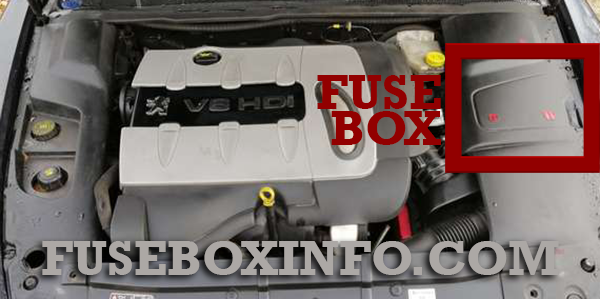

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front wash-wipe pump and wash-wipe fluid level sensor |
| 2 | 30A | Locking and deadlocking earth |
| 3 | 5A | Air bags |
| 4 | 10A | Clutch switch, brake dual-function switch, diagnostic connector, ESP sensor, electrochromatic mirror |
| 5 | 30A | Front electric windows and sunroof supply |
| 6 | 30A | Rear electric windows supply |
| 7 | 5A | Glove box switch, courtesy lights, map reading lights, courtesy mirrors |
| 8 | 20A | Multifunction display supply, steering wheel control, alarm siren, trailer fusebox supply, PC Com, electric mirror and front and rear electric window controls |
| 9 | 30A | Front and rear lighters (100 W max.) |
| 10 | 15A | Additive reservoir control unit supply |
| 11 | 15A | Automatic gearbox control unit, automatic gearbox positions selection switch, ignition switch |
| 12 | 15A | Trailer fusebox supply, hands-free kit, seats relay, seat memory unit, rain and brightness sensor |
| 13 | 5A | Engine fusebox supply |
| 14 | 15A | Parking assistance control unit supply, instrument panel, air conditioning, air bags and pre-tensioners unit |
| 15 | 30A | Locking and deadlocking supply |
| 17 | 40A | Hi-Fi amplifier, heated mirrors |
| 31 | 5A | Right-hand brake light |
| 32 | 5A | Left-hand brake light |
| 33 | 5A | Third brake light |
| 34 | - | Not used |
| 35 | 5A | Tyre under-inflation detection control unit, CD changer |
| 36 | 30A | Passenger seat relay |
| 37 | 30A | Passenger and rear right heated seats |
| 38 | 30A | Driver's and rear left heated seats |
| 39 | 30A | Driver's seat relay |
| 40 | 5A | Diagnostics socket |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Engine management control unit |
| 2 | 15A | Horn |
| 3 | 10A | Rear electric blind |
| 4 | 20A | Headlamp wash |
| 5 | 15A | Fuel pump (except 2 litre HDI 16V), diesel heater (2 litre HDI 16V), turbocharger and diesel pre-heat unit (2.7 litre HDI 24V) |
| 6 | 10A | Power steering, suspension control unit, automatic gearbox, automatic headlamp adjustment unit |
| 7 | 10A | ESP control unit |
| 8 | 15A | Starter coil |
| 9 | 10A | Coolant level sensor, passenger compartment heating (HDI), STOP switch |
| 10 | 30A | Engine management actuators (injectors, ignition coil, solenoid valves, oxygen sensors) |
| 11 | 40A | Air conditioning blower relay |
| 12 | 30A | Wipers relay |
| 13 | 40A | Built-in system interface supply (ignition positive) |
| 14 | 30A | Air pump |
| 15 | 10A | Right-hand main beam headlamp |
| 16 | 10A | Left-hand main beam headlamp |
| 17 | 15A | Left-hand dipped headlamp |
| 18 | 15A | Right-hand dipped headlamp |
| 19 | 15A | Oil vapour heater (2 litre HDI 16V), inlet air heating solenoid valve (2 litre HDI 16V), air fl ow sensor (2 litre HDI 16V and 2.7 litre V6 HDI 24V), oxygen sensor |
| 20 | 10A | Water in diesel sensor (2 litre HDI 16V) injection pump (2.7 litre V6 HDI 24V), turbo regulation solenoid valve (2 litre HDI 16V) |
| 21 | 10A | Fan assembly relay control, additional fan assembly (2.7 litre V6 HDI 24V) |
