Peugeot 4007 2011 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located in the lower part of the fascia behind the enclosed storage compartment.

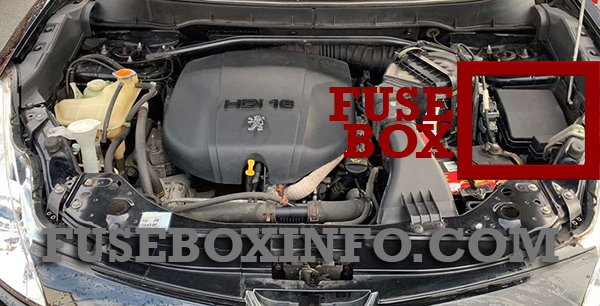

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Heating |
| 2 | 15A | Brake lamps, third brake lamp, built-in systems interface |
| 3 | 10A | Rear fog lamps |
| 4 | 30A | Windscreen wipers and screenwash |
| 5 | 10A | Diagnostic socket |
| 6 | 20A | Central locking, door mirrors |
| 7 | 15A | Audio equipment, telematics, multifunction screen, Bluetooth system |
| 8 | 7.5A | Remote control key, air conditioning control unit, instrument panel, switch panel, steering mounted controls |
| 9 | 15A | Multifunction screen, instrument panel |
| 10 | 15A | Built-in systems interface |
| 11 | 15A | Rear wiper |
| 12 | 7.5A | Instrument panel, 4 wheel drive control unit, air conditioning control panel, ABS control unit, multifunction screen, automatic headlamp adjustment, heated seats, airbag control unit, steering wheel angle sensor, sunroof, rear screen demisting, remote control |
| 13 | - | Not used |
| 14 | 10A | Ignition switch |
| 15 | 20A | Sunroof |
| 16 | 10A | Door mirrors, audio equipment, telematics |
| 17 | 10A | 4 wheel drive control unit |
| 18 | 7.5A | Reversing lamps, parking sensors control unit, reversing camera, airbag control unit |
| 19 | 15A | Accessories socket |
| 20 | 30A | Electric window controls |
| 21 | 30A | Rear screen demisting |
| 22 | 7.5A | Heated door mirrors |
| 23 | - | Not used |
| 24 | 25A | Driver's electric seat, footwell lighting, rear bench seat release |
| 25 | 30A | Heated seats |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front fog lamps |
| 2 | 7A | Engine ECU 2.4 litre 16V |
| 3 | 20A | CVT automatic gearbox ECU, CVT automatic gearbox relay |
| 4 | 10A | Horn |
| 5 | 7.5A | Alternator 2.4 litre 16V |
| 6 | 20A | Headlamp wash |
| 7 | 10A | Air conditioning |
| 8 | 15A | Engine ECU 2.4 litre 16V |
| 9 | - | Not used |
| 10 | 15A | Demisting, wipers |
| 11 | - | Not used |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | 10A | Left-hand main beam headlamp |
| 15 | 10A | Right-hand main beam headlamp |
| 16 | 20A | Left-hand dipped headlamp (xenon) |
| 17 | 20A | Right-hand dipped headlamp (xenon) |
| 18 | 10A | Left-hand dipped beam headlamp, manual and automatic headlamp adjustment |
| 19 | 10A | Right-hand dipped beam headlamp |
| 20 | - | Not used |
| 21 | 10A | Ignition coils |
| 22 | 20A | Engine control unit, water in Diesel sensor, injection pump (Diesel), air flow sensor, presence of water sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve, vehicle speed sensor, variable valve timing (VTC) electrovalve, EGR electrovalve |
| 23 | 15A | Petrol pump, fuel gauge |
| 24 | 30A | Starter motor |
| 25 | - | Not used |
| 26 | 40A | ABS control unit, ASC control unit |
| 27 | 30A | ABS control unit, ASC control unit |
| 28 | 30A | Condenser fan |
| 29 | 40A | Radiator fan |
| 30 | 30A | Passenger compartment fuse box |
| 31 | 30A | Audio amplifier |
| 32 | 30A | Engine control unit |
| 33 | 10A | Spare |
| 34 | 15A | Spare |
| 35 | 20A | Spare |
