Opel/Vauxhall Corsa 2020 Fuse Box Info
Passenger compartment fuse box location:
In left-hand drive vehicles, the fuse box is is behind a cover in the instrument panel, and behind a cover in the glovebox. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox, and behind a cover in the instrument panel.

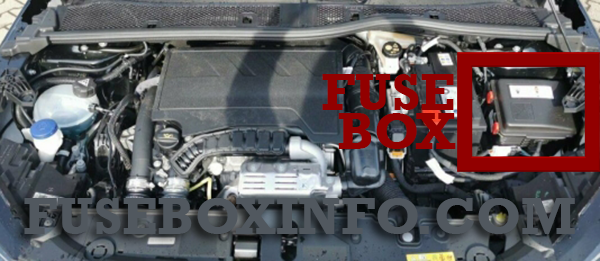

Engine compartment fuse box location:
The fuse box is in the front left of the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left side):
| Fuse N° | Functions |
| 1 | Radar / Interior mirror |
| 3 | Inductive charging |
| 4 | Horn |
| 5 | Windscreen washer |
| 6 | Windscreen washer |
| 7 | USB |
| 8 | Rear wiper |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Diagnostic connector module |
| 13 | Climate control system |
| 14 | Alarm / Opel Connect |
| 17 | Instrument cluster |
| 21 | Power button / Anti-theft locking system |
| 22 | Rain sensor / Light sensor / Camera |
| 23 | Seatbelt reminder |
| 24 | 7" Touchscreen / Parking assist / Rear view camera |
| 25 | Airbag |
| 27 | Anti-theft alarm system |
| 29 | 7" Touchscreen / Infotainment |
| 31 | Cigarette lighter / 12 V power outlet |
| 32 | Heated steering wheel |
| 33 | Climate control system / Auto‐ matic transmission |
| 34 | Parking assist / Exterior mirror adjustment |
Passenger compartment fuse box (Right side):
| Fuse N° | Functions |
| 1 | Heated rear window |
| 2 | Heated exterior mirrors |
| 3 | Power windows front |
| 4 | Exterior mirror adjustment / Folding mirrors |
| 5 | Power windows rear |
| 8 | Fuse box (right side of the instrument panel) |
| 10 | Heated front seats |
| 11 | Seat massage function |
Engine compartment fuse box:
| Fuse N° | Functions |
| 1 | Climate control system |
| 2 | Brake system |
| 3 | Fuse box (right side of the instrument panel) |
| 4 | Brake system |
| 8 | Fuel pump |
| 16 | Right headlight / heated wind‐ screen |
| 18 | Right high beam |
| 19 | Left high beam |
| 20 | Fuel pump |
| 22 | Automatic transmission |
| 25 | Fuse box (trailer) |
| 28 | Selective catalytic reduction system |
| 29 | Windscreen wiper |
| 31 | Climate control system |
| 32 | Steering wheel |
