Mitsubishi RVR 2019 Fuse Box Info

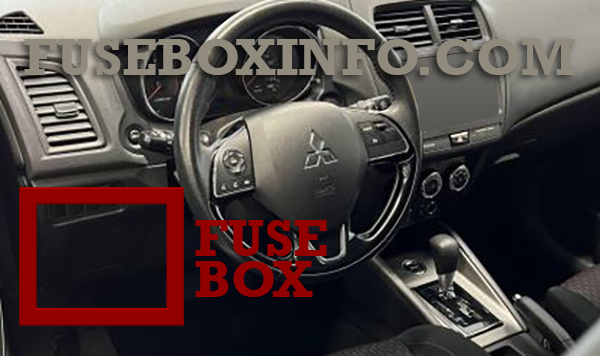

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

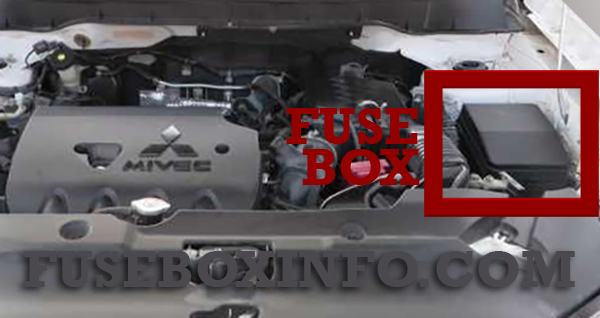

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Main fuse block
Sub fuse block
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A* | Heater |
| 2 | 15A | Stop lights (Brake lights) |
| 3 | 10A | Rear fog light |
| 4 | 30A | Windshield wiper |
| 5 | 10A | Optional |
| 6 | 20A | Door locks |
| 7 | 15A | Radio |
| 8 | 7.5A | Control unit relay |
| 9 | 15A | Interior lights (Dome lights) |
| 10 | 15A | Hazard warning flasher |
| 11 | 15A | Rear window wiper |
| 12 | 7.5A | Gauges |
| 13 | 15A | Cigarette lighter /Accessory socket |
| 14 | 10A | Ignition Switch |
| 15 | 20A | Sunroof |
| 16 | 10A | Outside rearview mirrors |
| 17 | 10A | All-wheel drive system |
| 18 | 7.5A | Back-up lights |
| 19 | 15A | Accessory socket |
| 20 | 30A* | Power window control |
| 21 | 30A* | Defogger |
| 22 | 7.5A | Heated door mirror |
| 23 | 25 (20)A | Passenger’s power seat |
| 24 | 25 (20)A | Driver’s power seat |
| 25 | 30A | Heated seats |
* Fusible link
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front fog lights |
| 2 | 7.5A | Engine |
| 3 | 20A | Automatic transaxle |
| 4 | 10A | Horn |
| 5 | 7.5A | Alternator |
| 6 | 20A | Headlight washer |
| 7 | 10A | Air conditioning |
| 8 | 15A | ETV/Oil cooler fan (Twin Clutch SST) |
| 9 | 20A | Security horn |
| 10 | 15A | Wiper deicer |
| 11 | - | - |
| 12 | 30A | Power gate |
| 13 | 10A | Daytime running lights |
| 14 | 10A | Headlight (high beam) (left) |
| 15 | 10A | Headlight (high beam) (right) |
| 16 | 20A | Headlight (low beam) (left) / Discharge |
| 17 | 20A | Headlight (low beam) (right) / Discharge |
| 18 | 10A | Headlight (low beam) (left) / Halogen |
| 19 | 10A | Headlight (low beam) (right) / Halogen |
| 20 | 10A | ENG/POWER |
| 21 | 10A | Ignition coil |
| 22 |
20A 25A |
ENG/POWER Fuel line heater |
| 23 | 15A | Fuel pump |
| 24 | 30A* | Starter |
| 25 | - | - |
| 26 | 40A* | Anti-lock braking system |
| 27 | 30A* | Anti-lock braking system |
| 28 | 30A* | Air conditioning condenser fan motor |
| 29 | 40A* | Radiator fan |
| 30 | 30A | IOD |
| 31 | 30A | Audio amplifier |
| 32 | 30A | Diesel |
| 33 | 10A | Spare fuse |
| 34 | 15A | Spare fuse |
| 35 | 20A | Spare fuse |
* Fusible link
