Mitsubishi Lancer 2015 Fuse Box Info
Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

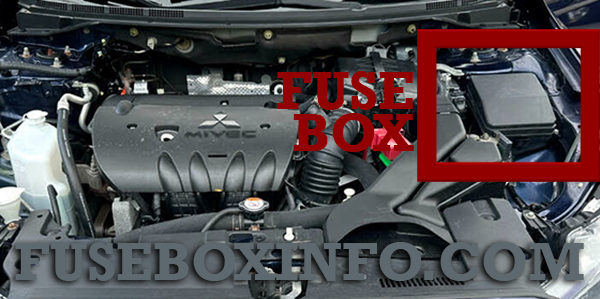

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Heater |
| 2 | 15A | Stop lights (Brake lights) |
| 3 | 10A | Rear fog light |
| 4 | 30A | Windshield wiper |
| 5 | 10A | Optional |
| 6 | 20A | Door locks |
| 7 | 15A | Radio |
| 8 | 7.5A | Control unit relay |
| 9 | 15A | Interior lights (Dome lights) |
| 10 | 15A | Hazard warning flasher |
| 11 | 15A | Rear window wiper |
| 12 | 7.5A | Gauges |
| 13 | 15A | Cigarette lighter/Accessory socket |
| 14 | 10A | Ignition switch |
| 15 | 20A | Sunroof |
| 16 | 10A | Outside rearview mirrors |
| 17 | 10A | All-wheel drive system |
| 18 | 7.5A | Back-up light |
| 19 | 15A | Accessory socket |
| 20 | 30A | Power window control |
| 21 | 30A | Defogger |
| 22 | 7.5A | Heated outside rearview mirrors |
| 23 | 15A | 115V Power outlet |
| 24 | 25(20)A | Power seats |
| 25 | 30A | Heated seats |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front fog lights |
| 2 | 7.5A | Engine |
| 3 | 20A | Automatic transaxle |
| 4 | 10A | Horn |
| 5 | 7.5A | Alternator |
| 6 | 20A | Headlight washer |
| 7 | 10A | Air conditioning |
| 8 | 15A |
ETV/Oil cooler fan (Twin Clutch SST) - Except for vehicles with turbocharger ETV - Vehicles with turbocharger |
| 9 | 20A | Security horn |
| 10 | 15A | Wiper deicer |
| 11 | - | - |
| 12 | 30A | Power gate |
| 13 | 10A | Daytime running light |
| 14 | 10A | Headlight (high beam) (left) |
| 15 | 10A | Headlight (high beam) (right) |
| 16 | 20A |
Headlight (low/high beam) (left) Discharge |
| 17 | 20A |
Headlight (low/high beam) (right) Discharge |
| 18 | 10A |
Headlight (low beam) (left) Halogen |
| 19 | 10A |
Headlight (low beam) (right) Halogen |
| 20 | 10A |
ENG/POWER - Except for vehicles with turbocharger I/C SPRAY - Vehicles with turbocharger |
| 21 | 10A | Ignition coil |
| 22 |
20A 20A 25A |
ENG/POWER - Vehicles with turbocharger ENG/POWER - Except for vehicles with turbocharger Fuel line heater - Except for vehicles with turbocharger |
| 23 |
15A 20A |
Fuel pump - Except for vehicles with turbocharger Fuel pump - Vehicles with turbocharger |
| 24 | 30A | Starter |
| 25 |
40A - |
Valve lift control - Except for vehicles with turbocharger - - Vehicles with turbocharger |
| 26 | 40A | Anti-lock braking system |
| 27 | 30A | Anti-lock braking system |
| 28 | 30A | Air conditioning condenser fan motor |
| 29 | 40A | Radiator fan motor |
| 30 | 30A | IOD |
| 31 | 30A | Audio amplifier |
| 32 | 30A | Diesel |
| 33 | 10A | Spare fuse |
| 34 | 15A | Spare fuse |
| 35 | 20A | Spare fuse |
