Mitsubishi i-MiEV 2012 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column, under the bottom of the instrument panel.

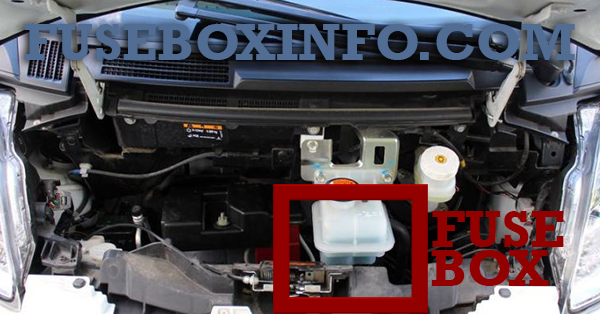

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Tail light (left) |
| 2 | 15A | Cigarette lighter/12 V power outlet |
| 3 | - | - |
| 4 | 7.5A | Starter |
| 5 | 20A | Audio amplifier |
| 6 | - | - |
| 7 | 7.5A | Tail light (right) |
| 8 | 7.5A | Outside rearview mirrors |
| 9 | 7.5A | Control unit (Electric motor unit) |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog light |
| 12 | 15A | Central door lock |
| 13 | 10A | Room lamp |
| 14 | 15A | Rear window wiper |
| 15 | 7.5A | Gauges |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seat |
| 18 | 10A | Option |
| 19 | 7.5A | Heated door mirror |
| 20 | 20A | Windscreen wiper |
| 21 | 7.5A | Reversing lamps |
| 22 | 30A | Demister |
| 23 | 30A | Heater |
| 24 | 30A | Auxiliary battery |
| 25 | 10A | Radio |
| 26 | 15A | Electronic controlled unit |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 30A | Auxiliary battery |
| 3 | 40A | Electric motor switch |
| 4 | 40A | Radiator fan motor |
| 5 | 40A | Electric window control |
| 6 | 30A | Brake electric vacuum pump |
| 7 | 15A | Electric motor unit control |
| 8 | 15A | Stop lamps |
| 9 | 15A | Front fog lights |
| 10 | 15A | Water pump (Electric motor unit) |
| 11 | 10A | Charge |
| 12 | 10A | Hazard warning flasher |
| 13 | 10A | Horn |
| 14 | 10A | Daytime running lights |
| 15 | 15A | Traction battery cooling fan motor |
| 16 | 10A | Water pump (Air conditioning) |
| 17 | 20A | Headlight low beam (right) |
| 18 | 20A | Headlight low beam (left) |
| 19 | 10A | Headlight high beam (right) |
| 20 | 10A | Headlight high beam (left) |
