Mitsubishi Colt 2009 Fuse Box Info

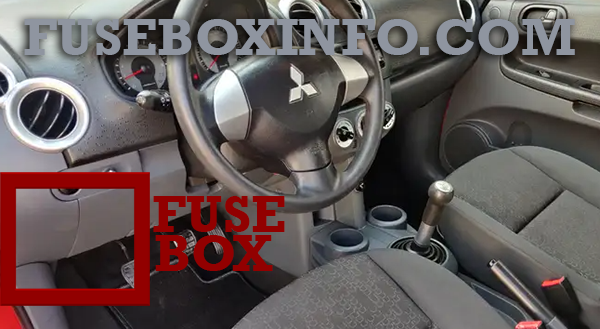

Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel. The fuse box (RHD vehicles) is located behind the glove box.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Ignition switch |
| 2 | 40A | Electric window system |
| 3 | 40A | Radiator fan |
| 4 | 40A | Automated manual transmission |
| 5 | 30A | Demister |
| 6 | 30A | Heated seat |
| 7 | - | - |
| 8 | 40A | Heater |
| 9 | 10A | Radio |
| 10 | 10A | Room lamp |
| 11 | 7.5A | Heated door mirror |
| 12 | 7.5A | Electronic control module |
| 13 | 20A | Windscreen wiper |
| 14 | 7.5A | Tail lamp (right) |
| 15 | 7.5A | Tail lamp (left) |
| 16 | 20A | Engine |
| 17 | 15A | Fuel pump |
| 18 | 10A | Horn |
| 19 | 10A | Headlamp high beam (left) |
| 20 | 10A | Headlamp high beam (right) |
| 21 | - | - |
| 22 | - | - |
| 23 | 7.5A | Outside rear-view mirrors |
| 24 | 7.5A | Rear fog lamp |
| 25 | 15A | Accessory socket |
| 26 | 15A | Rear window wiper |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | 10A | Hazard warning flasher |
| 32 | - | - |
| 33 | 15A | Door locks |
| 34 | 15A | Front fog lamps |
| 35 | 10A | Headlamp low beam (left) |
| 36 | 10A | Headlamp low beam (right) |
| 37 | 7.5A | Reversing lamp |
| 38 | 7.5A | Engine control |
| 39 | 10A | Ignition coil |
| 40 | 7.5A | Gauge |
| 41 | 7.5A | Relay |
| 42 | 15A | Stop lamps |
| 43 | 7.5A | Air conditioning |
| 44 | - | - |
